Description

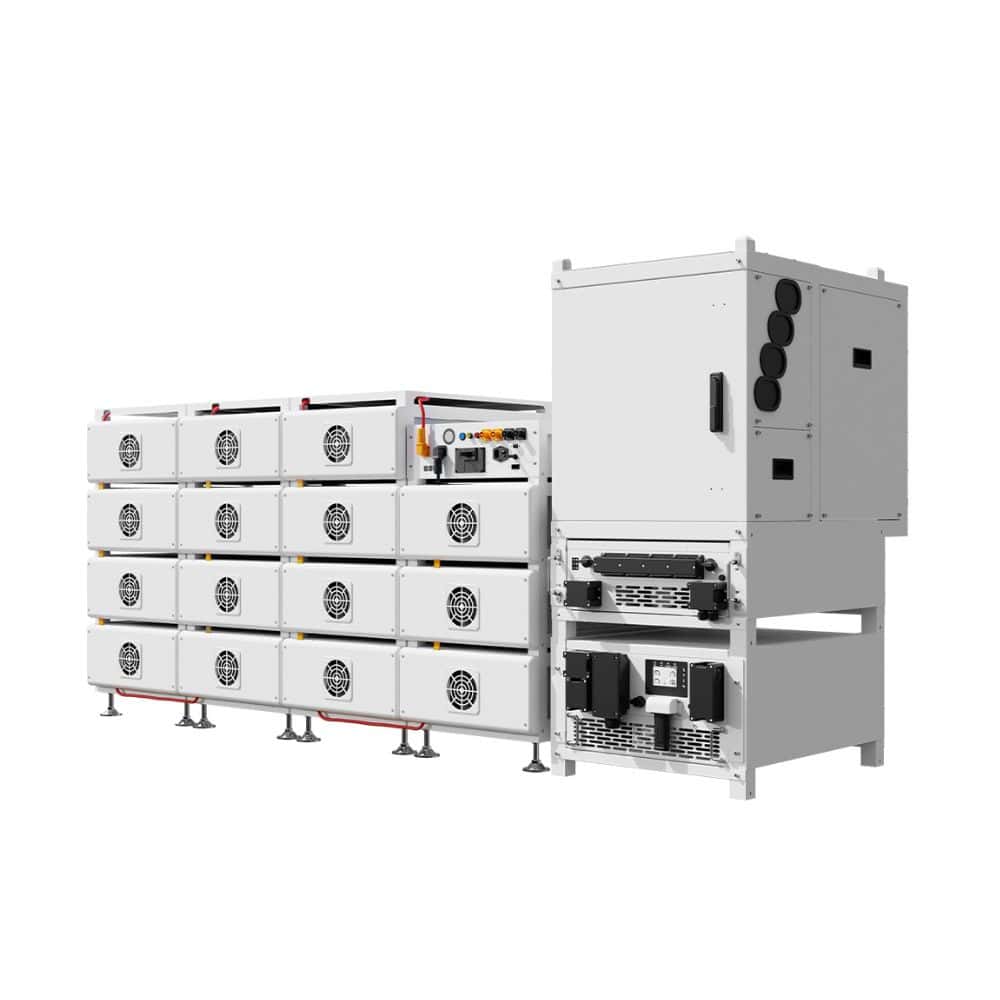

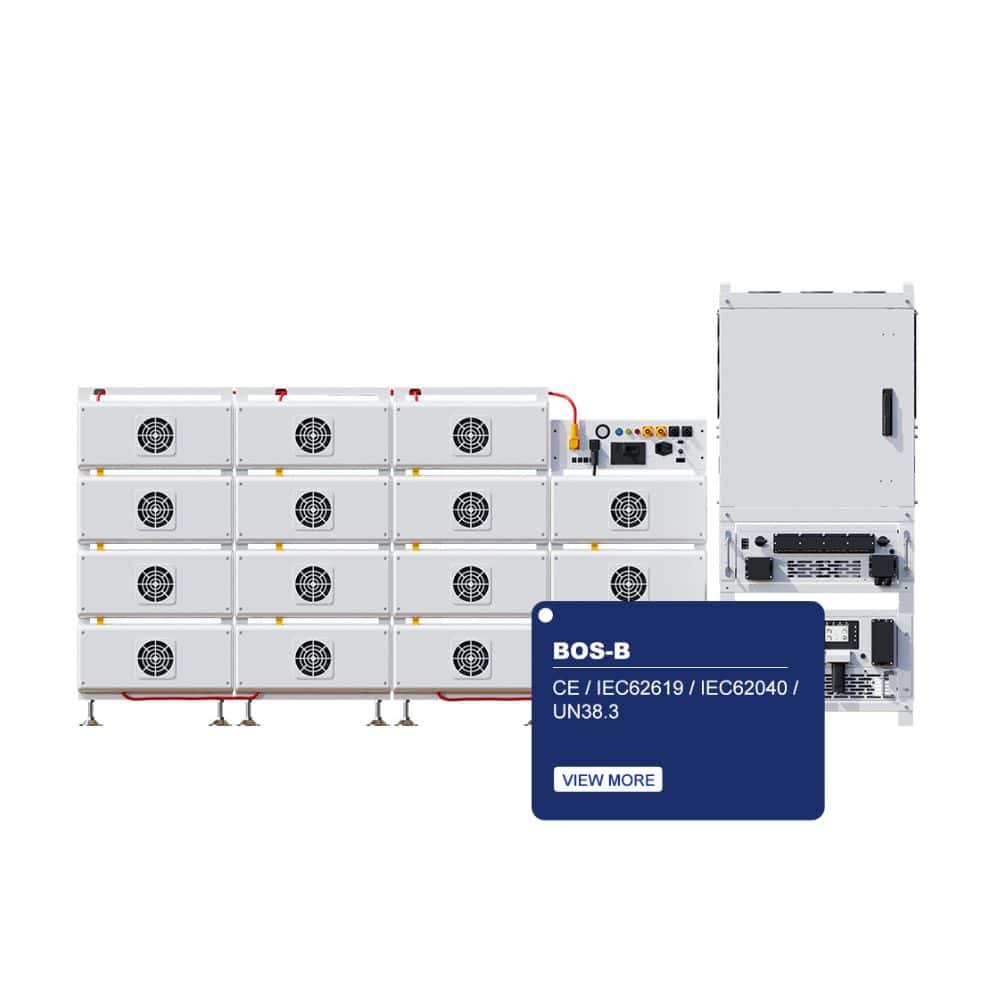

Introducing Our Advanced Energy Solution
Our energy solution is a cutting-edge system designed to meet diverse power needs with
exceptional performance.
| Parameter |
Details |
| Battery Type |
Lithium-ion (LFP) |
| Nominal Voltage |
51.2Vdc |
| Energy Per Module |
14.3kWh |
| Storage Capacity |
215kWh (per cluster) |
| Max Count per PCS |
16 Packs |
| Efficiency |
Up to 98.5%
(PCS) |
| Cycle Life |
6,000 Cycles (90% DoD) |
| Operating Temp (Charge) |
0–55°C |
| Operating Temp (Discharge) |
-20–55°C |
| Ingress Protection |
IP20 |
Key Features:
- Advanced Energy Storage: Enjoy extended backup of up to 32 hours
with 16 racks per PCS. Smart balancing is ensured by an independent BMS, optimizing
charge distribution and extending battery life.
- Intelligent Control: An integrated EMS supports zero-export and
time-of-use charging/discharging. For easy management, a color touchscreen allows
local or remote cloud adjustments.
- Efficient PV Integration: It boasts a wide MPPT range, compatible
with a 1000V PV system and an 180-850V MPPT range. The maximum PV input is 200kWp
with 8 MPPT channels and 40A per MPPT.
- Rugged & Reliable: PCS and MPPT modules feature IP65-rated
protection. PCS supports peak power up to 170%, and the LFP battery with BOS-B’s
robust design enhances system reliability.
- High Performance & Scalability: PCS offers 100kW/125kW,
expandable up to 2.5MW. The BOS-B battery delivers 215kWh per cluster, supporting up
to 16 packs per PCS. PCS efficiency reaches 98.5%, and MPPT exceeds 99%.
