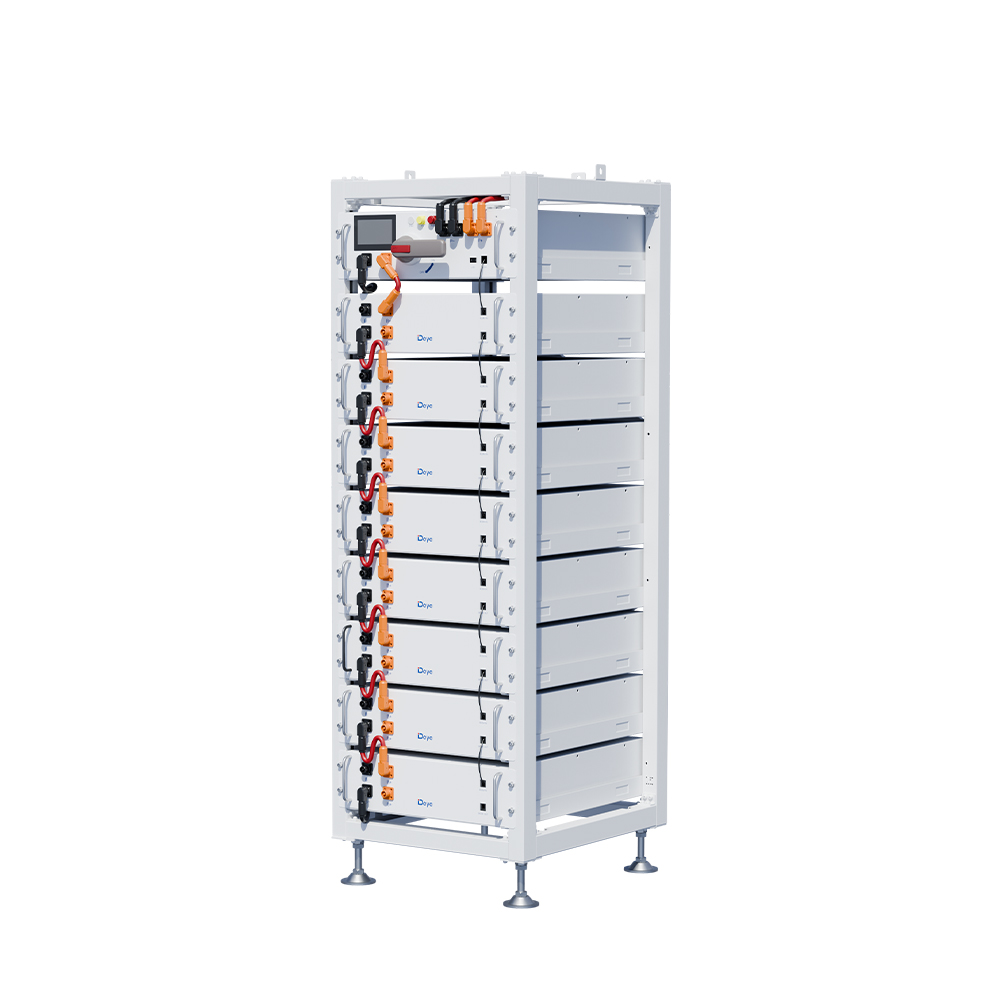

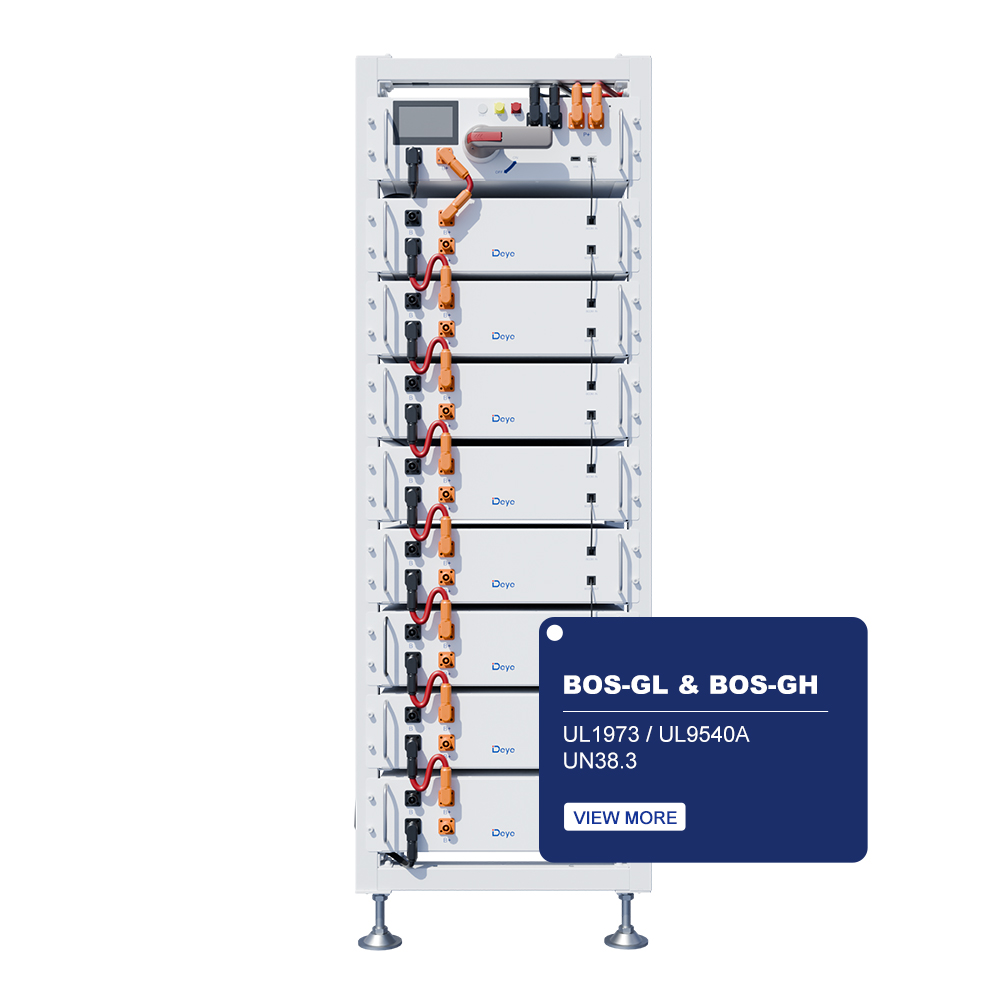

BOS-GL & BOS-GH (NA)

Convenient: 19-inch embedded design. Supports USB and Wi-Fi upgrade (optional). Allows remote monitoring and upgrade (compatible with Sol-Ark inverter). Multiple battery modules can be paralleled
Safe and Reliable: Utilizes LFP battery with safety, long lifespan, and high-energy density. Non-toxic, non-polluting, and eco-friendly. Operates in -20°C ~ 55°C
Intelligent Functions: Protects against over-discharge, over-charge, over-current, and extreme temperatures. Automatically manages charge/discharge and balances current/voltage. Low self-discharge (up to 6 months shelf life without charging). No memory effect, excellent shallow charge/discharge performance

SKU: BOS-GL & BOS-GH (NA)Category: High Voltage Series (HV)

Description

Introducing our advanced battery module, a game-changer in energy storage.

Parameter	BOS-GL60	BOS-GH40	BOS-GH60
Cell Chemistry	LiFePO₄
Module Energy (kWh)	5.12
Nominal Voltage (V)	51.2
Module Capacity (Ah)	100
Modules in Series (optional)	6	8	12
System Voltage (V)	307.2	409.6	614.4
System Energy (kWh)	61.44	40.96	61.44
Usable Energy (kWh)	55.29	36.86	55.29
Charge/Discharge Current	Recommend: 100 A Nominal: 100 A Peak 2 min: 125 A	Recommend:50 A Nominal: 100 A Peak 2 min: 125 A	Recommend: 50 A Nominal: 100 A Peak 2 min: 125 A
Recommended DoD	90%
Cycle Life	≥ 6,000 cycles to 70 % EOL (0.5C/0.5C, 25 ± 2 °C)
Warranty	10 years
Dimensions (W×D×H mm)	530 × 667 × 2,187	530 × 667 × 1,629	530 × 667 × 2,187
Weight (kg)	75+45 × 12+20=635kg	53+45 × 8+20=433kg	75+45 × 12+20=635kg
Communication Port	CAN 2.0 / RS485
Ingress Protection	IP20
Installation	Rack Mounting
Certifications	UL1973, UL9540A, UN38.3, UL9540

It boasts a 19 – inch embedded design for easy integration. You can enjoy convenient upgrades via USB or Wi – Fi (optional). What’s more, it supports remote monitoring and upgrade, especially when used with Sol – Ark inverter. Also, multiple battery modules can be connected in parallel to meet larger energy demands.
Safety and reliability are at its core. Powered by LFP battery, it ensures safety, long lifespan, and high – energy density. The module is non – toxic, non – polluting, and eco – friendly. It works flawlessly in a wide temperature range from – 20°C to 55°C.
Equipped with intelligent functions, it offers protection against over – discharge, over – charge, over – current, and extreme temperatures. It automatically manages charge/discharge and balances current/voltage. With less self – discharge, it can stay on the shelf for up to 6 months without charging. Plus, there’s no memory effect, ensuring excellent performance in shallow charge and discharge cycles.
