Description

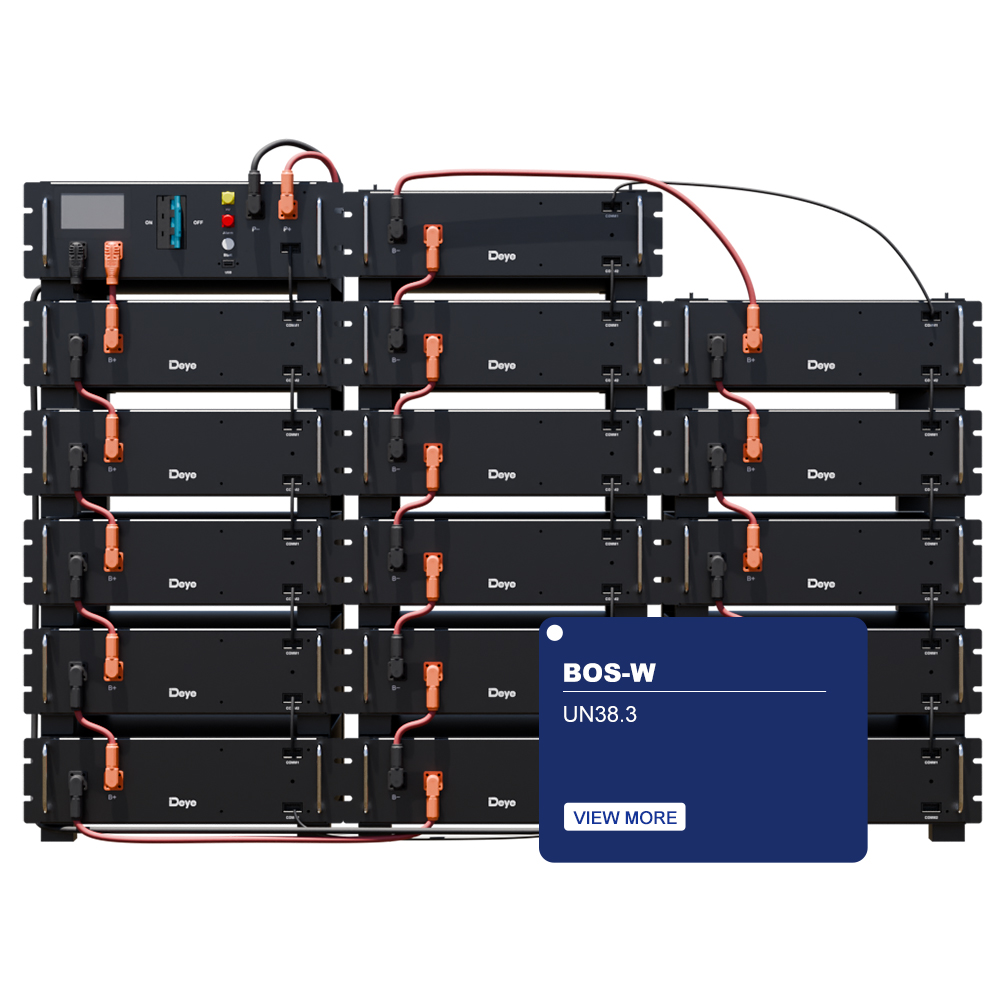

Small-Scale C&I Energy Storage Solution
| Specification
|
Value |
| Model |
BOS-W |
| Cell Chemistry
|
Lithium Iron
Phosphate (LiFePO₄) |
| Module Energy
|
5.12 kWh |
| Nominal Voltage
|
51.2 V (High
Voltage Battery Configuration) |
| Capacity |
100 Ah |
| Operating
Temperature |
-20°C to 55°C |
| Communication
|
CAN2.0 / RS485
|
| Humidity Range
|
5% to 85% RH |
| Maximum Altitude
|
<3000 m |
| IP Rating |
IP20 |
| Cycle Life |
>6000 cycles at
70% End of Life (EOL) |
| Warranty |
5 years |
| Certification
|
UN38.3 compliant
|
Key Features:
- Safe & Reliable: Utilizes LFP batteries with low self-discharge
(up to 6 months without charging).
- Smart Protection: Shields against over-discharge/charge, current
issues, and extreme temps. It auto-manages charge, discharge, and cell balancing.
- Flexible Expansion: Supports multiple battery modules in parallel,
USB, and remote upgrades.
- No Memory Effect: Performs excellently with shallow charge and
discharge cycles.
- Wide Temp Range: Operates in a temperature range from – 20 to 55
°C.
- High Performance: Delivers superior discharge and boasts a cycle
life of over 6000 times.
- Practicality & Universal Compatibility: Achieve 100% unbalanced
output. It can AC – couple to retrofit existing solar systems and has dual
independent battery circuits.
- Versatile & High-Performance: Comes with a TOU function (six
time periods for battery charging/discharging). It’s diesel generator – ready and
suitable for VSG application.
This solution is engineered to meet diverse C&I energy storage needs with
efficiency, reliability, and flexibility.
