Description

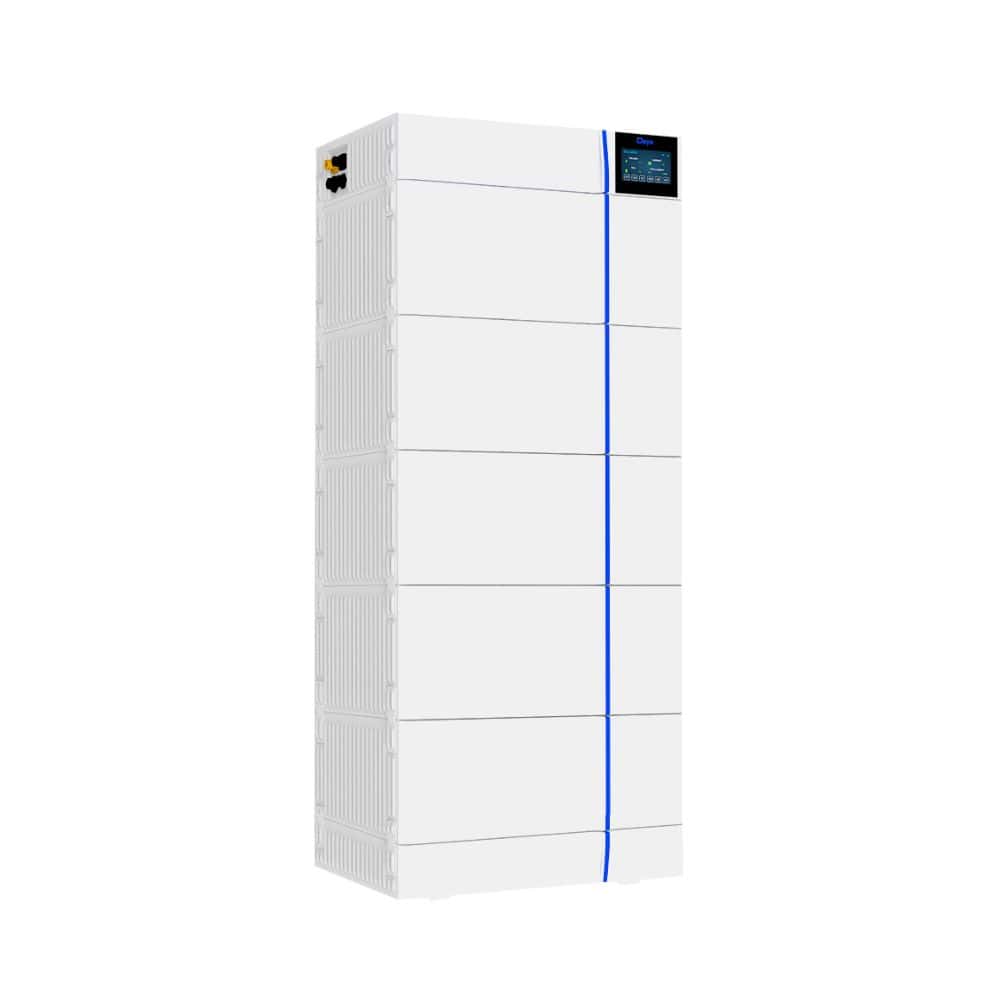

The Deye GB-L-PRO is a cutting-edge residential energy storage system (ESS). Designed
meticulously to cater to the modern needs of energy consumers, the GB-L-PRO offers a
reliable, efficient, and intelligent solution for those looking to harness the power of
renewable energy sources effectively.
| Technical Specifications |
Details |
| Cell Chemistry |
LiFePO₄ |
| Module Energy Capacity |
4 kWh with 102.4 V nominal voltage |
| Variants Available |
GB – L8 PRO, GB – L12 PRO, GB – L16 PRO, GB – L20
PRO, GB – L24 PRO |
| Usable Energy Range |
7.2 kWh to 21.6 kWh |
| Performance Metrics |
20 A recommended charge/discharge current, 50 A
peak discharge |
| User – Friendly LCD Display |
Real – time updates on SOC, power output, and total
voltage |
| Dimensions and Weight |
Varies depending on model, ranging from 540 × 385 ×
650 mm to 540 × 385 × 1530 mm; weight from 97 kg to 253 kg |
Key Features:
- Safety First: Equipped with a built-in explosion relief device for
gas dredging and a fire protection device that cuts off the fire source in just 3
seconds, ensuring utmost safety.
- High-Voltage Stack Design: Modules are connected in series without
cable connection, and the high-voltage platform enhances system efficiency
significantly.
- Intelligent Thermal Management: Features temperature detection for
key parts like cells and power plug-ins, keeping the battery operating within
optimal temperature ranges.
- Wide Temperature Operation: An optional heating function allows it
to adapt to low-temperature application scenarios seamlessly.
- Environmental Friendliness: Boasts an IP protection grade of 65, an
anti-corrosion grade ≥C2, and uses environmental protection batteries, making it
durable and eco-friendly.
- Intelligent & Visual: Supports remote upgrades, pushes
real-time battery warning information, and has an LCD display for easy data
monitoring.
With module energy capacity of 4 kWh (102.4 V nominal voltage), usable energy ranging
from 7.2 kWh to 21.6 kWh, and variants like GB-L8 PRO, GB-L12 PRO, etc., it meets
diverse energy needs. The recommended charge/discharge current is 20 A, with a 50 A peak
discharge. Dimensions range from 540 × 385 × 650 mm to 540 × 385 × 1530 mm, and weight
from 97 kg to 253 kg, suiting different installation requirements.
