Description

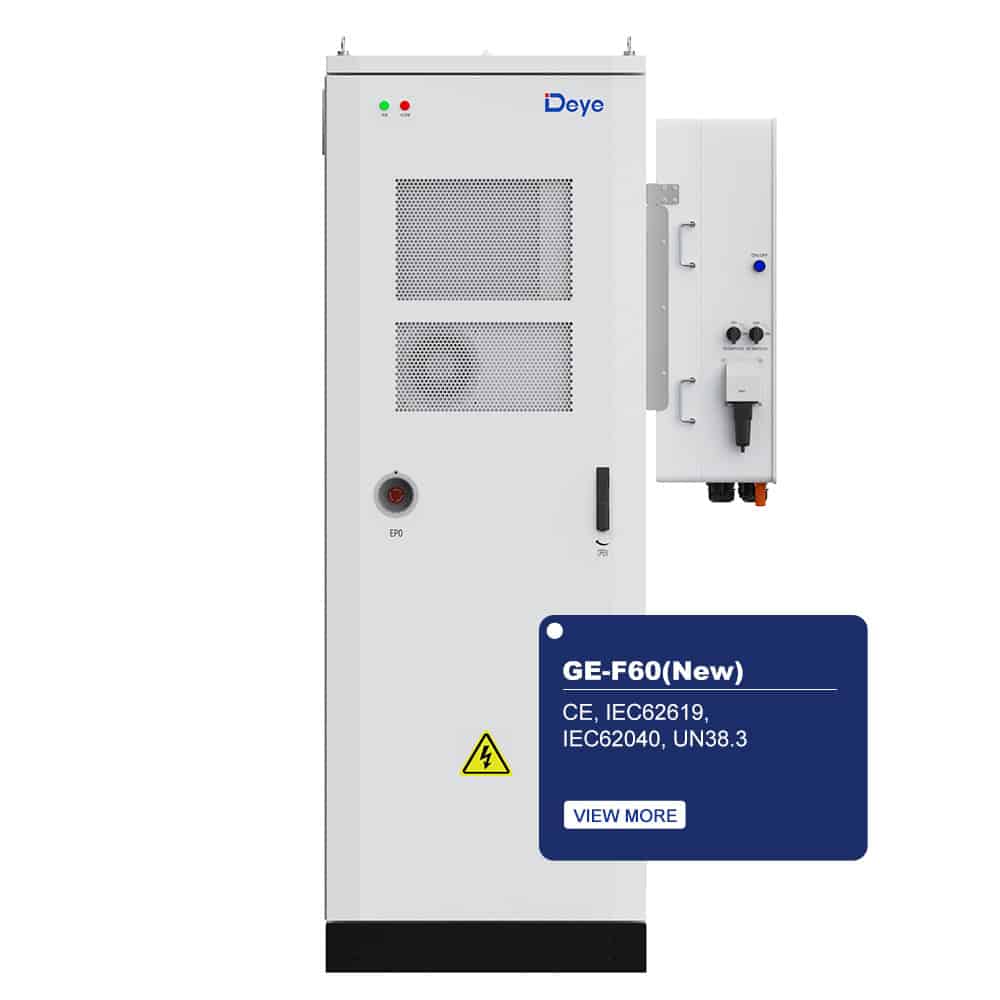

Deye GE-F60 Energy Storage System is a top-notch solution for efficient and secure energy
storage.
| Specification |
Details |
| Cell Chemistry |
LiFePO4 (for stability and
durability) |
| Module Energy |
5.12 kWh per module |
| System Energy |
Total: 61.44 kWh; Usable: 55.29
kWh |
| Charge/Discharge Current |
Recommended: 50 A; Nominal: 100 A;
Peak discharge: 125 A (2 mins at 25°C) |
| Operating Temperature Range |
Charging: 0 – 55°C; Discharging:
-20 – 55°C |
| Humidity and Altitude Tolerance
|
Humidity: 5% – 85% RH; Altitude:
Up to 2000 m |
| Enclosure Rating |
IP55 (protects against dust and
low-pressure water jets) |
| Dimensions and Weight |
Dimensions: 780 x 1056 x 2235 mm;
Weight: Approximately 1.2 T |
| Installation |
Floor-mounted |
| Cycle Life |
Over 6000 cycles at 25°C ± 2°C
(0.5 C charge/discharge rate, ≥70% original capacity retained) |
| Warranty |
10-year product warranty |
| Certifications |
CE, IEC62619, IEC62040, UN38.3
|
Key Features:
-
Battery Performance & Safety: It utilizes Lithium Iron
Phosphate (LFP) batteries. During rated power operation, the battery’s maximum
temperature stays below 40°C, ensuring stability. Suitable for high-rate cyclic
charging and discharging, it also features comprehensive safety measures like
combustible gas, smoke, and temperature detection, active system exhaust, fire
alarms, and an aerosol fire-extinguishing solution for the battery pack and
system.
-
Integration & Functionality: Leveraging EMS, hybrid
inverter, and BMS integrated technology, it has a power supply redundancy
design.
-
Scalability & Capacity: The system supports battery
expansion, with a maximum capacity of 360KWh, adaptable to growing energy needs.
-
Key Specifications: With a module energy of 5.12KWh, system
energy of 61.44KWh, and usable energy of 55.29KWh, it offers robust energy
storage. The rated DC power is 61.44KW, and charge/discharge current options
(recommended 50A, nominal 100A, peak discharge 125A) cater to diverse usage
scenarios. Operating within a temperature range of 0-55°C for charging and
-20-55°C for discharging, and with an IP55 enclosure rating, it suits various
environments. It also comes with a 10-year warranty and certifications like CE,
IEC62619, ensuring quality and reliability.
