MC-L430-2H3 Series (AS, AF, AU, EU, LATAM)

MC-L430-2H3 Series (AS, AF, AU, EU, LATAM) - Image 2

MC-L430-2H3 Series (AS, AF, AU, EU, LATAM)

Smart Cloud Management: Customizable load algorithms, 24/7 online O&M, battery safety alerts, and cloud device connectivity
Top-notch Safety: Built-in fire protection, explosion-proof measures, 5-level electrical safeguards, and high-voltage interlocking
Flexible Expansion: All-in-one PCS/BMS/EMS modules, up to 8 parallel cabinets, supports 2 – 4h storage, and high energy density saves space
Diverse Applications: Enables EV charging expansion, peak – valley energy optimization, virtual power plant readiness, and off-grid use (islands, base stations)
Impressive Specs: 5 – level safety protection, 10ms grid switching, 10 – year warranty (free coolant replacement), 420kW DC fast charging

SKU: MC-L430-2H3 Series (AS, AF, AU, EU, LATAM)Category: C&I ESS Solution

Description

MS-G215 (CHN) Micro Grid System | Reliable and Scalable Energy Storage

The MS-G215 (CHN) Micro Grid System is a cutting – edge energy storage solution that combines reliability with scalability, catering to diverse energy needs.

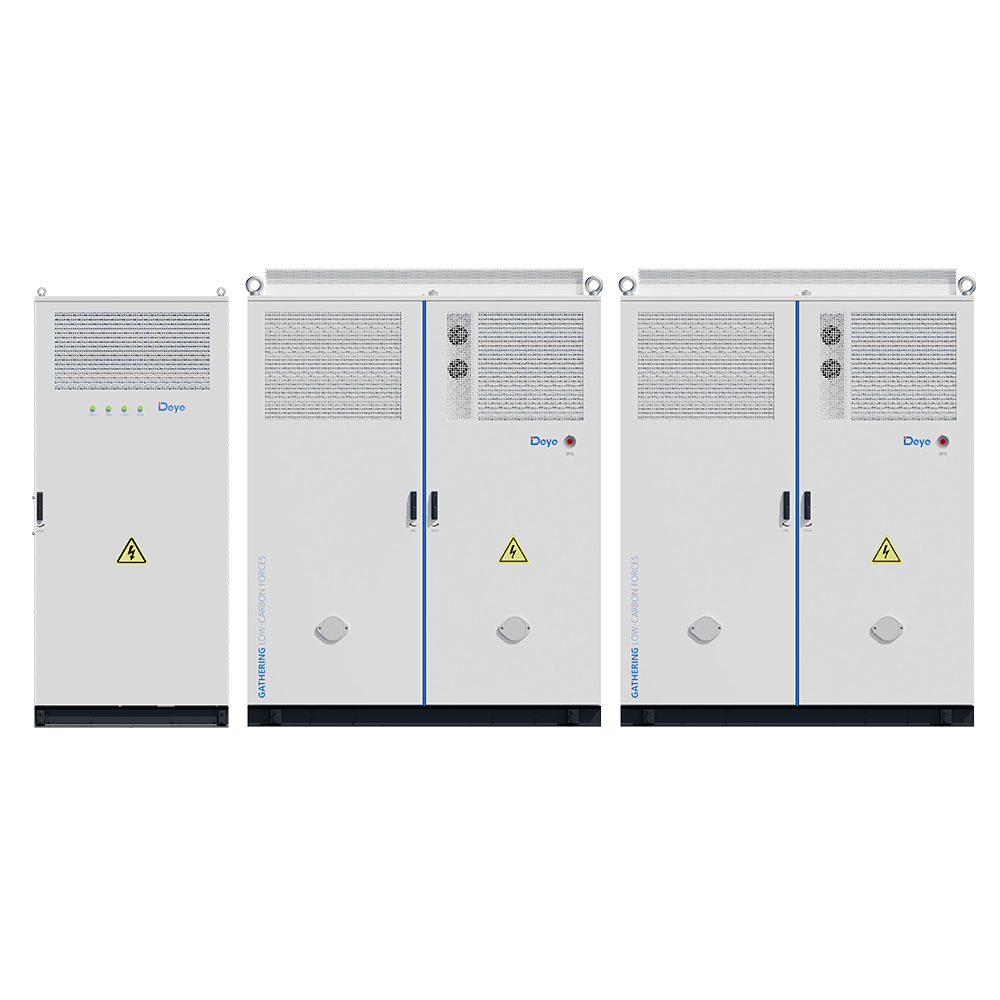

DEYE MC-L430-2H3 SERIES
MC-L430-2H3 (AC BESS)	Type: AC Battery Energy Storage System Nominal Energy: 430.08kWh Rated Power: 200kW Key Feature: This model is an all-in-one AC-coupled energy storage system. It includes the battery, battery management system (BMS), power conversion system (PCS), and energy management system (EMS) in a single cabinet.

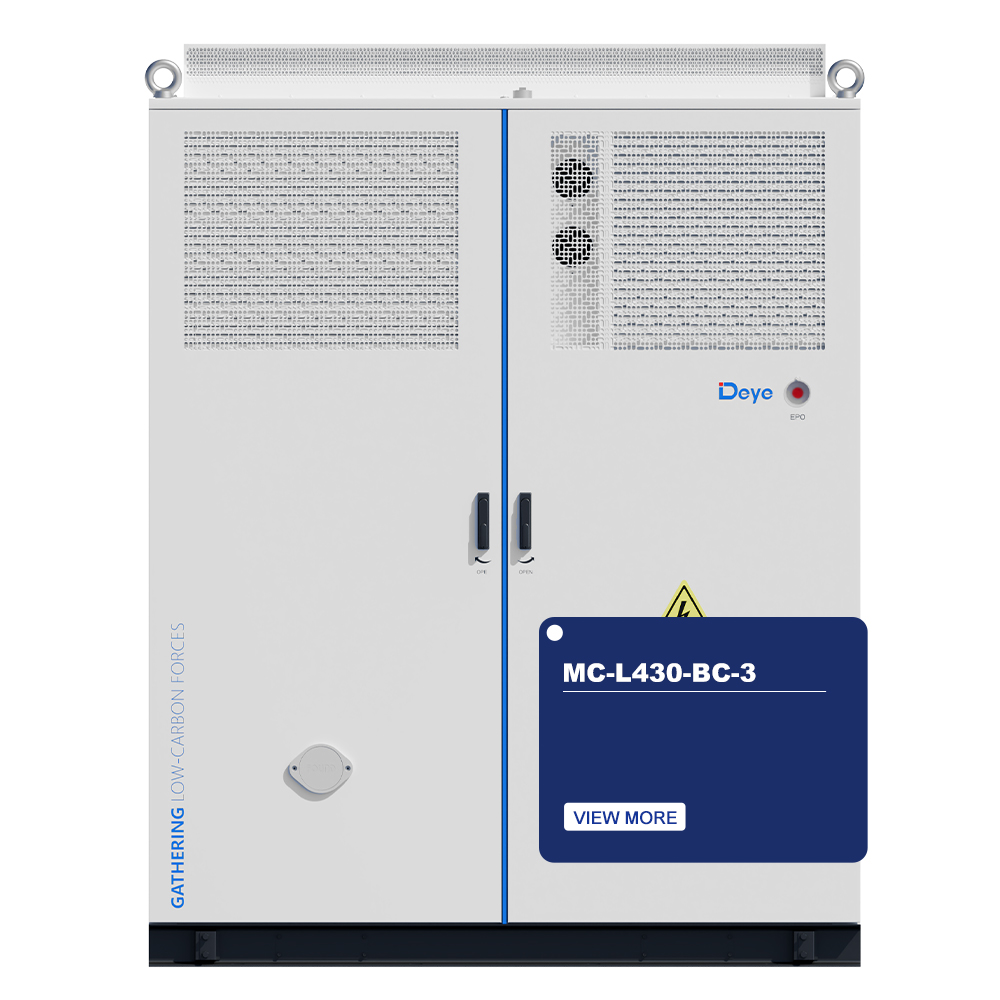

MC-L430-BC-3 (DC BESS)	Type: DC Battery Energy Storage System Nominal Energy: 430.08kWh Key Feature: This is a DC-coupled battery system. It is designed to be used with an external PCS, making it a flexible component for various energy storage configurations, especially when paired with solar or other DC power sources.
MS-MPPT400-2	Type: MPPT (Maximum Power Point Tracking) Controller Max. PV Input Power: 200kW Number of MPP Trackers: 8 Key Feature: This unit is designed to maximize the power output from a solar array. It is a critical component for integrating solar power into the energy storage system, ensuring the highest possible efficiency from the PV panels.

Intelligent Cloud Platform

Customizable load algorithmic modules for tailored energy distribution.
24 – hour online operation and maintenance (O&M) to ensure constant system monitoring.
Battery life and safety warning mechanisms to preempt potential issues.
Device cloud interconnection for seamless data sharing and remote management.

Ultimate Safety

Self – contained fire protection system for rapid fire suppression.
Explosion – proof safety protection system to mitigate explosion risks.
Five – level electrical safety protection for comprehensive electrical hazard prevention.
High – voltage interlocking to prevent loaded arc operation, enhancing operational safety.

Versatile Expansion

PCS/BMS/EMS all – in – one modular design for easy integration and maintenance.
Supports up to 8 cabinets in parallel to scale up energy storage capacity.
Accommodates 2 – hour and 4 – hour energy storage applications for flexible use cases.
Higher energy density reduces the system’s physical footprint, saving space.

Outstanding Performance

5 – level extreme safety protection including detection, early warning, smoke exhaust, fire fighting, and explosion venting.
Achieves 10ms seamless on – grid and off – grid switching for stable power supply.
Comes with a 10 – year warranty and 10 – year free replacement of coolant for long – term reliability.
Offers 420kW DC fast charging and DC coupling for energy storage system (ESS) and charging.
