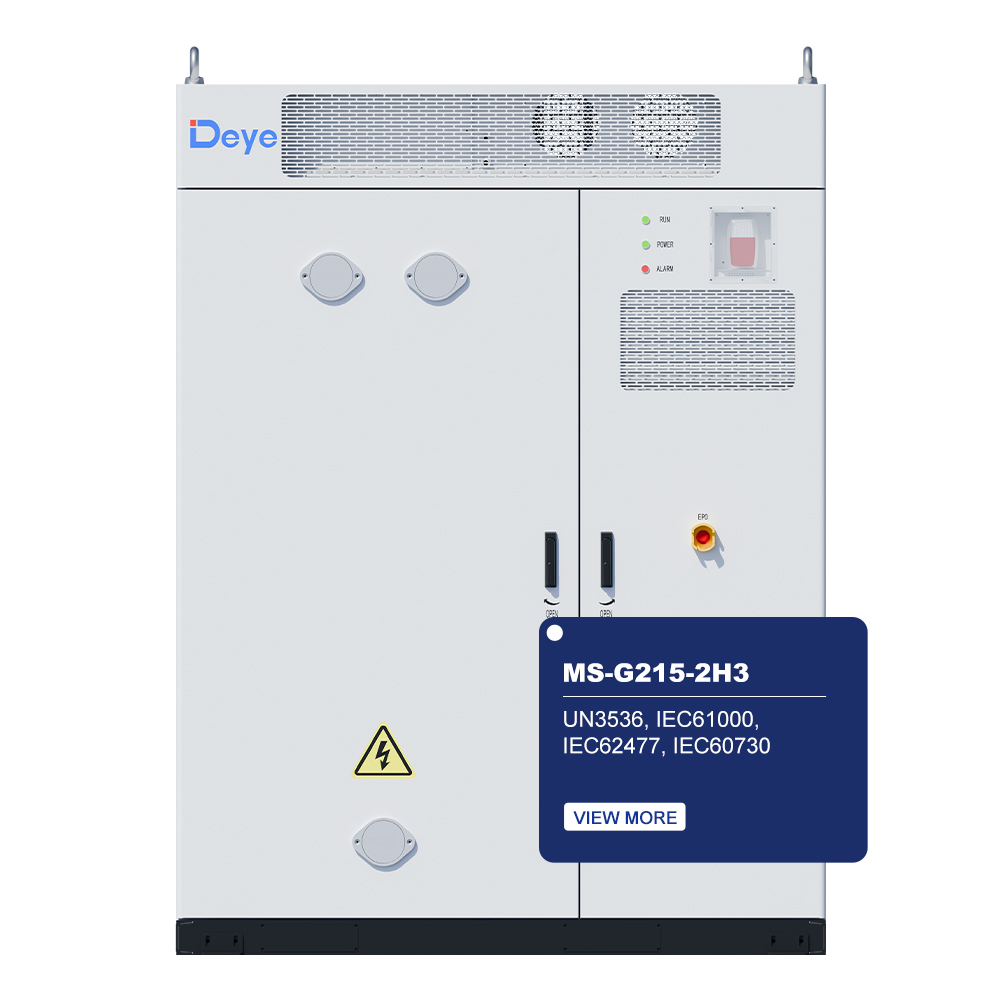

Description
| Parameter |
Specification |
| AC Output Power |
100 kW |
| AC Output Voltage &
Frequency |
380/400 Vac, 50/60 Hz |
| Energy Capacity |
215 kWh |
| Battery Voltage Range (Vdc)
|
660 – 864 (grid-on); 700 – 935
(grid-off) |
| Round-Trip Efficiency |
88% |
| Dimensions (W × D × H) |
1 865 × 1 000 × 2 500 mm |
| Weight |
2 900 kg |
| Communication |
ETH / 4G |
| Operating Temp. |
–20 °C to 50 °C (derating >
45 °C) |
| Altitude |
≤ 3 000 m |
| Enclosure Protection |
IP54, Anti-corrosion C5 |
| Certifications |
UN3536, IEC 61000, IEC 62477,
IEC 60730 |
Key Features
-
Scalable: It offers flexible scalability. For off – grid
backup, it supports up to 5 units (max 500kW/1MWh). In on – grid parallel
setups, up to 20 units are feasible (max 2MW/4.3MWh). For off – grid parallel,
up to 10 units can be used (max 1MW/2.15MWh), meeting diverse power needs.
-
Safer: Equipped with LFP batteries for enhanced safety. The
system features aerosol fire extinguishing. Its battery compartment has auto
venting and explosion – proof capabilities, ensuring utmost safety.
-
Intelligent Control: Boasts smart thermal management to keep
the battery temperature below 35℃. It also enables peak – valley management,
anti – backflow, and overload protection. Additionally, it supports load
tracking, demand control, backup power supply, and phase separation for
optimized power usage.
-
Multi – Fusion: Integrates EMS, PCS, and BMS seamlessly. It
allows expansion of the MPPT module and supports off – grid backup, providing
versatile functionality.
-
Reliable: Operates in a wide temperature range of – 20℃ to 50℃,
with an IP54 & C5 protection rating. It can work at altitudes up to 3000m
and has 1.1x overload capacity. With balancing solutions to extend battery life
and a triple auxiliary power design for stable supply, it’s highly dependable.
It has ≥6000 cycles, 70% EOL, and a 10 – year warranty, making it a long – lasting and
trustworthy choice for your energy storage requirements.
