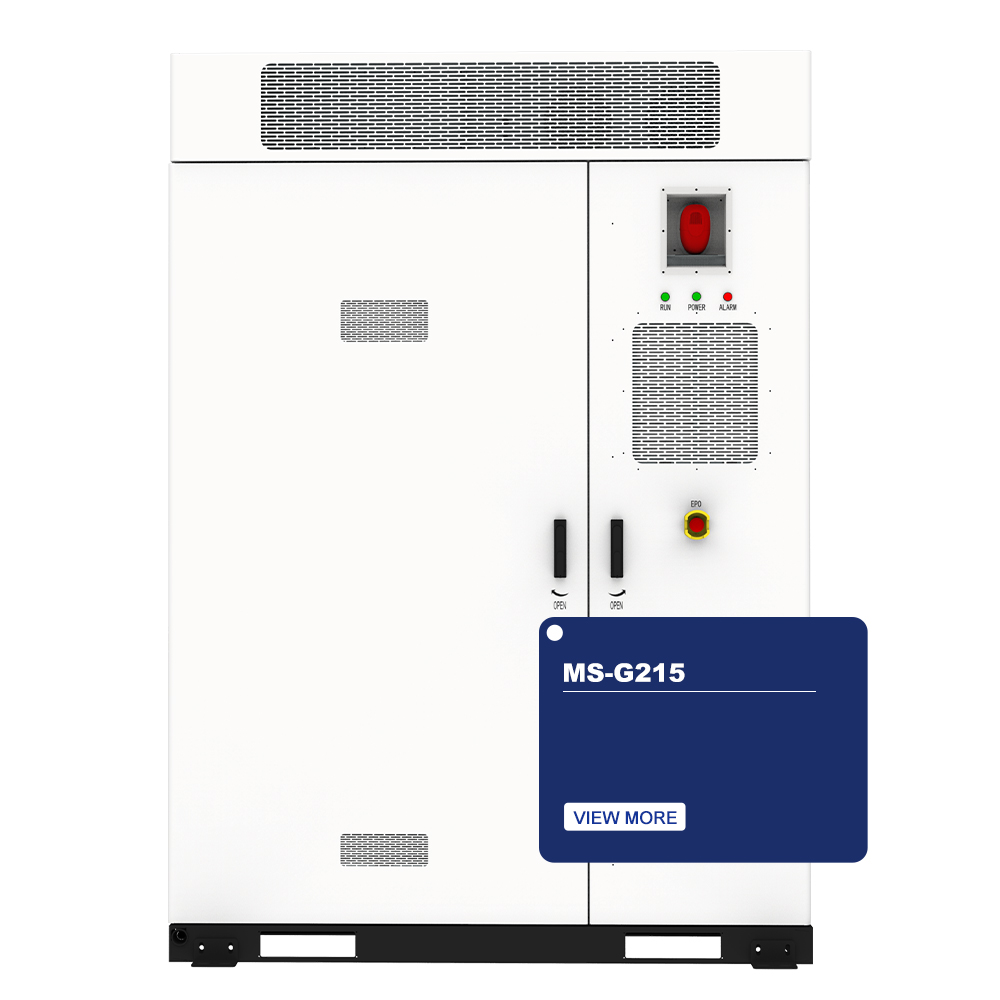

MS-G215 (CHN) Micro Grid System

Multi-fusion: Integrates EMS converter and BMS, features power supply redundancy design and supports black start function
Intelligent temperature control: In full-power operation, battery’s max temperature is under 35°C, with temperature difference less than 8°C
Scalable: Allows expansion of MPPT module, charging module and diesel generator connection
Reliable: Intelligent BMS offers full protection and proactive balancing to extend battery cycling life
Safer: Uses Lithium Iron Phosphate (LFP) Battery and adopts aerosol fire extinguishing solution
High protection: Provides 1-hour flame retardant protection and C4 shell protection

SKU: MS-G215 (CHN)Category: C&I ESS Solution

Description

MS-G215 Micro Grid System

The MS-G215 Micro Grid System is a cutting-edge energy solution with a nominal output power of 100KW and an energy storage capacity of 215KWh.

Item	Specification
Model	MS-G215
Nominal Output Power (KW)	100
AC Output Frequency and Voltage	50/60Hz; 380/400Vac
Grid Type	3L/PE
Energy (kWh)	215
Dimension (W x D x H, mm)	1765x1000x2500
Weight Appr. (kg)	2.7T
Battery Operating Voltage (V)	DC: 660 ~ 876
Max. RTE	88%
System Communication	ETH/4G
System Operating temperature range (°C)	-20~45
Max. working altitude (m)	≤3000
IP Rating of Enclosure	IP54
Anti-corrosion grade	C4
Installation Style	Floor-Mounted

Product Advantages

Multi-fusion: It comes with an EMS converter and BMS inside. The power supply redundancy design ensures stable power supply, and it supports the black start function for quick recovery in power outage situations.
Intelligent temperature control: During full-power operation, the battery’s maximum temperature is kept below 35°C, and the temperature difference is less than 8°C, ensuring optimal battery performance.
Scalable: It supports the expansion of MPPT modules, charging modules, and diesel generator connection, allowing for flexible system expansion as per needs.
Reliable: The intelligent BMS provides complete protection and proactive balancing solutions, effectively extending the battery’s cycling life.
Safer: Utilizing Lithium Iron Phosphate (LFP) Battery, the system adopts an aerosol fire extinguishing solution for enhanced safety.
High protection: It offers 1-hour flame retardant protection and C4 shell protection, ensuring durability in various environments.

With an AC output frequency of 50/60Hz, voltage of 380/400Vac, an IP54 enclosure rating, and a 10-year warranty, the MS-G215 is a reliable choice for meeting diverse energy demands.
