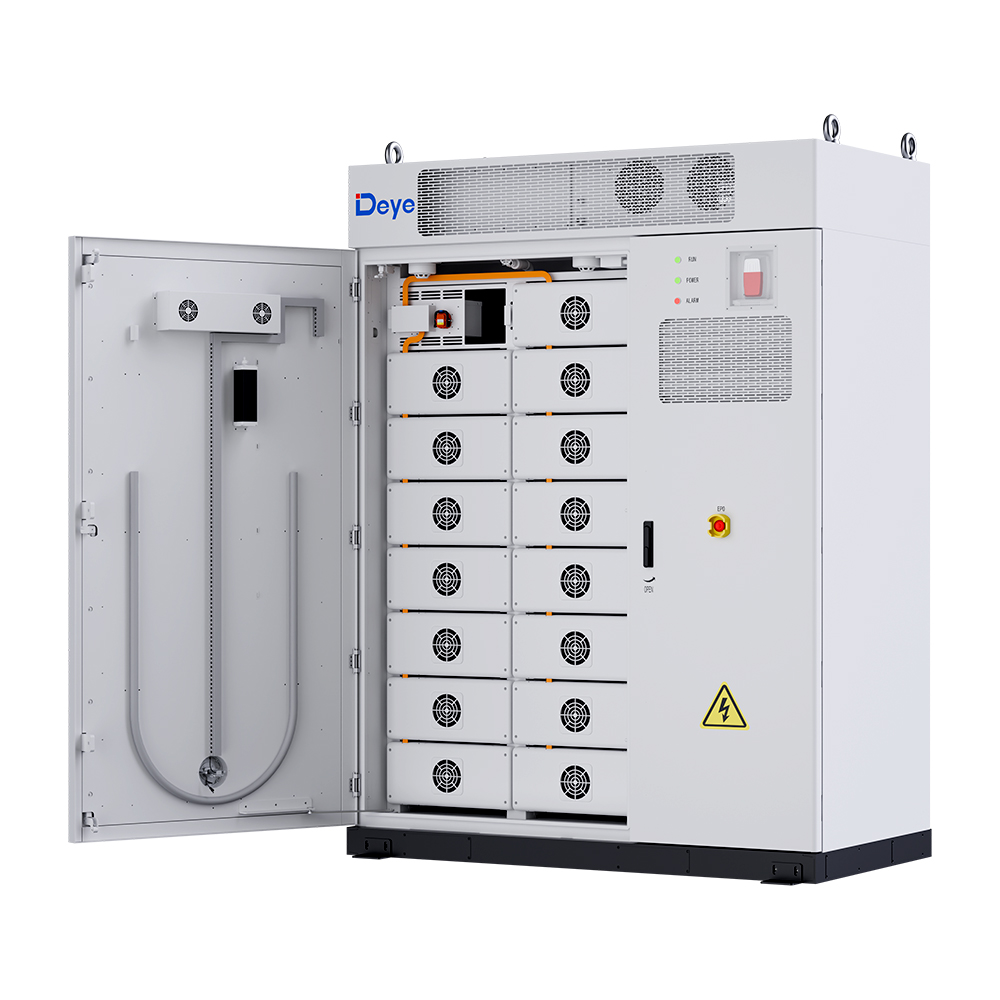

Description
| Parameter |
Value |
| AC Output Power
|
100 kW (380 / 400
Vac, 50 / 60 Hz) |
| PV Input Power
|
200 kWp |
| Energy Capacity
|
215 kWh |
| Round-Trip
Efficiency |
88 % |
| Max. Parallel
Units (Off-Grid) |
10 pcs |
| Communication
|
ETH / 4G (system)
· CAN / RS485 / ETH (converter) |
| Operating Temp.
|
–20 °C to 50 °C
|
| Altitude |
≤ 3,000 m |
| Dimensions (W × D
× H) |
1,865 × 1,000 ×
2,500 mm (system) |
| Weight |
3030 kg |
| Protection &
Certification |
IP54 · C5 · Class
1 SPD · UN3536 · IEC standards |
| Warranty |
10 years or ≥
6,000 cycles |
| Converter Max
Efficiency |
97.6 % |
| THD |
< 3 % |
Key Features
- Scalable:
- Supports up to 5 off – grid backup units, with a maximum capacity of
500kW/1MWh.
- Allows up to 20 on – grid units in parallel, reaching a maximum of
2MW/4.3MWh.
- Enables up to 10 off – grid parallel units, with a maximum capacity of
1MW/2.15MWh.
- Intelligent Control:
- Thermal management keeps the battery temperature below 35°C.
- Offers peak – valley management, anti – backflow, and overload protection.
- Provides load tracking, demand control, backup power, and phase separation.
- Reliable:
- Operates in a temperature range of – 20°C to 50°C.
- Has an IP54 & C5 protection rating and can function at altitudes up to
3000m.
- Boasts 1.1x overload capacity and balancing solutions to extend battery
life.
- Features a triple auxiliary power design for stable supply.
- Safer:
- Utilizes LFP batteries.
- The system supports aerosol fire extinguishing.
- The battery compartment has auto venting and explosion – proof capabilities.
- Multi – Fusion:
- Integrates EMS, PCS, and BMS.
- Supports the expansion of the MPPT module.
- Enables off – grid backup.
