Description

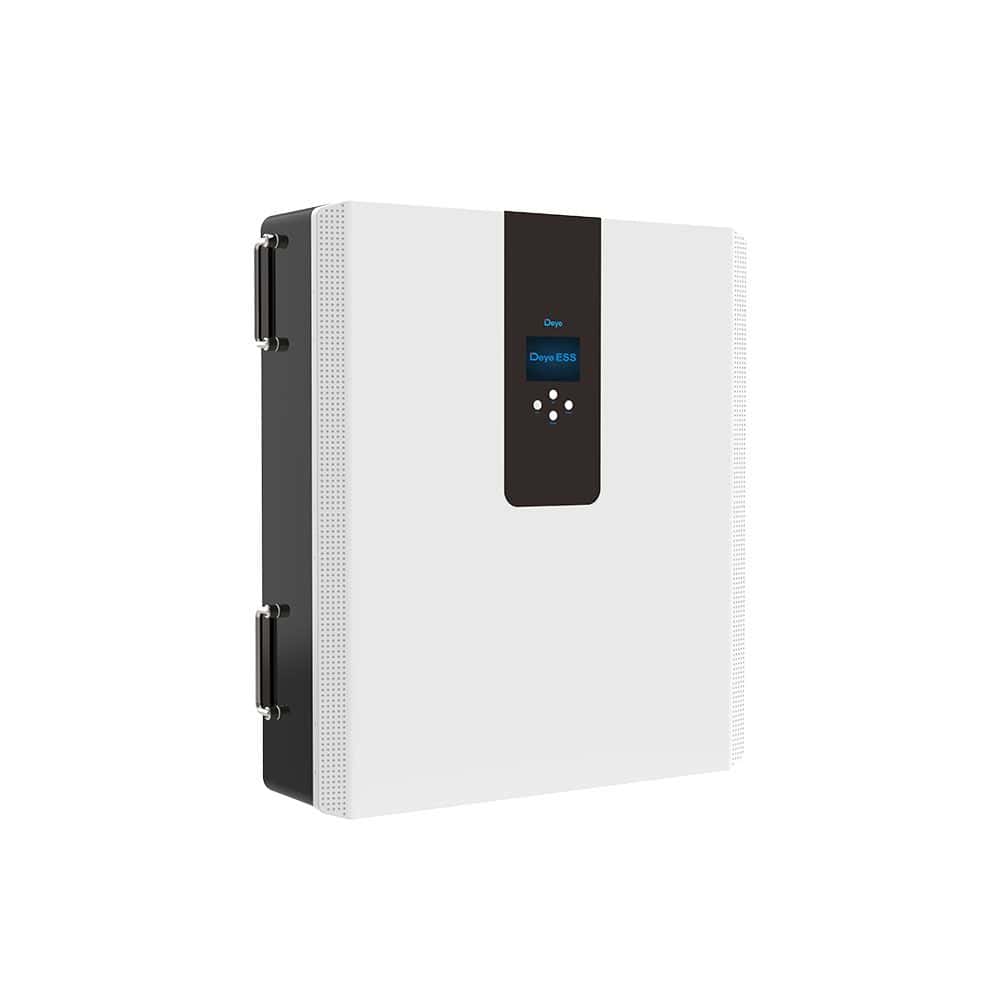

Introducing our all-in-one energy storage system, a top-tier solution for efficient and
reliable energy management.
|
Nominal Power |
3,600W /
5,000W (selectable variants) |
|
Output Frequency |
50Hz /
60Hz |
|
Output Voltage |
220/230 Vac |
|
Maximum Efficiency |
97% |
| MPPT
Efficiency |
>99% |
|
Battery Chemistry |
Lithium
Ferrophosphate (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Energy Capacity |
5.32kWh |
| Max.
Charging Current |
75A |
| Max.
Discharging Current |
100A |
|
Battery Cycle Life |
≥6,000 cycles at 25°C |
|
Dimensions (L×W×H) |
616 ×
191 × 690mm |
|
Weight |
~71kg |
|
Installation Type |
Wall-mounted |
| Noise
Level |
<30dB (whisper-quiet operation) |
Key Features
- Enhanced Reliability: Boasts a built-in Intelligent BMS for full
protection. Utilizes natural cooling, has an IP65 rating, and works in a wide
temperature range of -20°C to 55°C (with heating).
- Smart Application: Enables peak-shaving, smart load control, AC
coupling, etc. With a 4ms fast switching time, it ensures your energy security.
- Flexible Expansion: Allows up to 16 units in parallel
(80kW/84.8kWh). Supports expansion with Deye 5.1kWh LV battery, reaching a max
capacity of 163.2kWh.
- All-in-One Design: Integrates a 5kW hybrid inverter and a 5.3kWh
LFP battery, ensuring safety and long lifespan.
- Easy Installation: Features a flat, wall-mounted design to save
space, enabling quick and easy installation.
- Intelligent Control: Offers comfortable and easy control via App,
PC, or Touch-Display.
With ≥6000 cycles, 70% EOL, and IP65 rating for indoor and outdoor use, this system is
your ideal choice for energy efficiency.
