Description

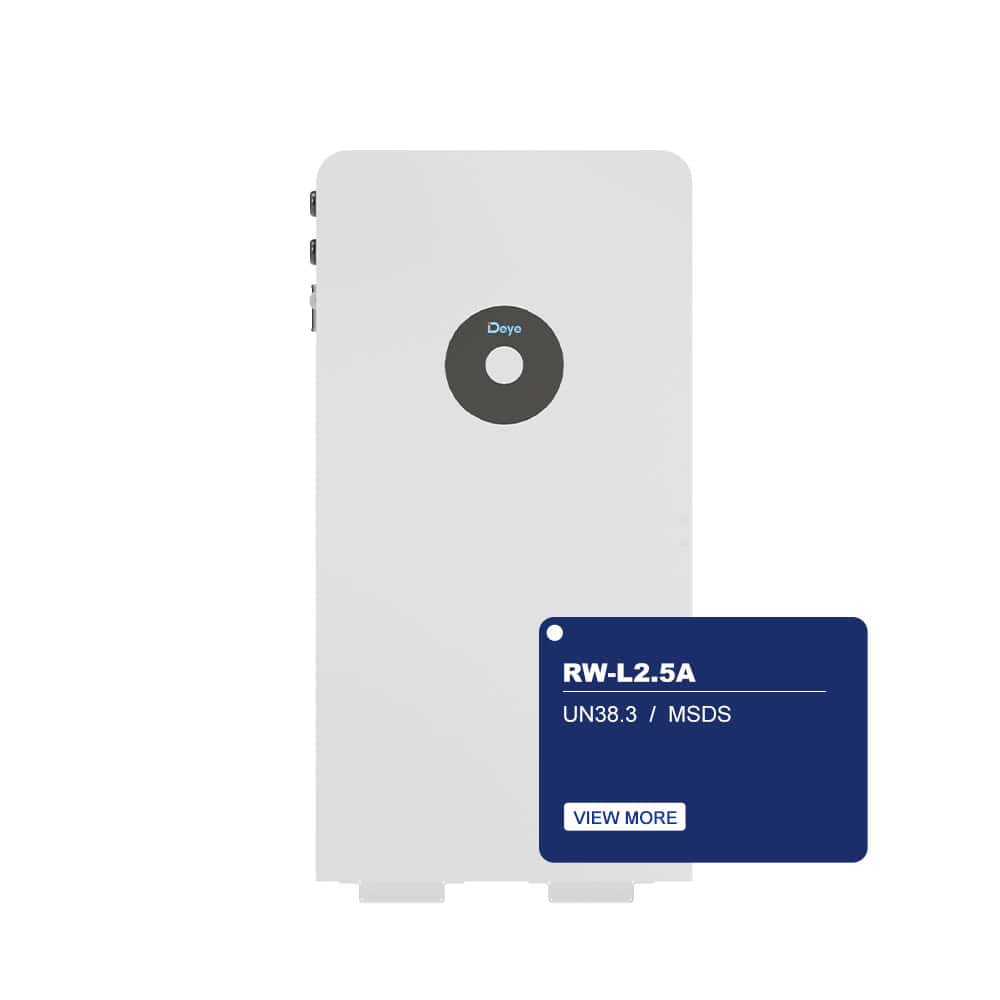

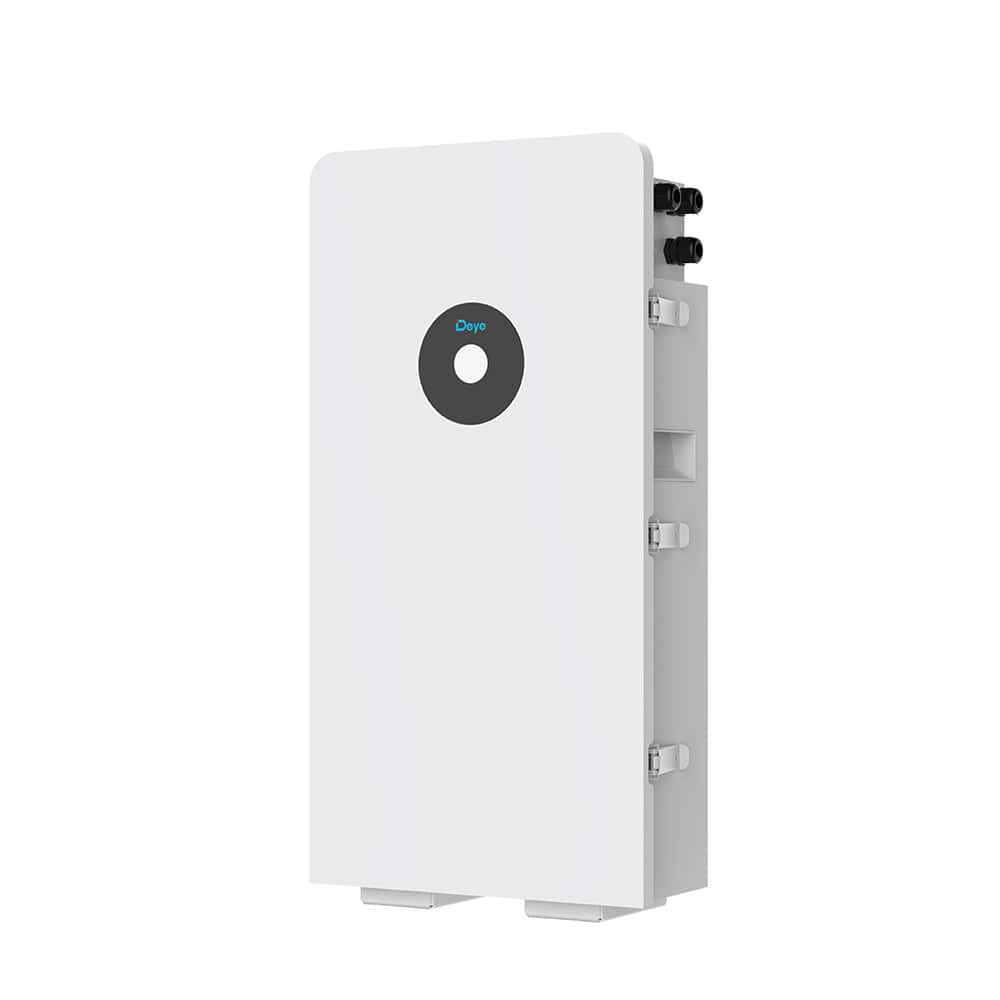

Introducing the RW-L2.5A Battery, a top energy storage solution powered by LiFePO₄
chemistry.
| Main Parameter
|
RW-L2.5A |
| Battery
Chemistry |
LiFePO₄ |
| Built-in
Circuit Breaker |
125A 1P, 60V |
| Capacity
(Ah) |
100Ah |
| Nominal
Energy (kWh) |
2.56 |
| Usable
Energy (kWh) |
2.3 |
| Charge /
Discharge Current (A) |
100 / 120 |
| Dimension
(W × H × D, mm) |
350x680x160 |
| Weight
Approximate (kg) |
32 |
| IP Rating
of Enclosure |
IP65 |
| Cycle
Life |
≥6000 (as per
cycle conditions) |
| Warranty
Period |
10 years |
|
Certification
|
UN38.3, MSDS |
- Battery Chemistry & Core Specs: It adopts LiFePO₄ chemistry,
ensuring a long lifespan. With a 100Ah capacity, it offers a nominal energy of 2.56
kWh and a usable energy of 2.3 kWh. The built – in 125A 1P, 60V circuit breaker adds
to safety.
- Flexibility: It supports up to 32 units in parallel. Featuring a
10A current limit, it’s compatible with any inverter for charging and discharging,
making it ideal for backup power and residential use.
- Convenience: Battery modules auto – network without DIP switches.
It also supports Deye remote monitoring and upgrade.
- Reliability: It allows max. 1C charge and discharge, with a peak
discharge current of 2C for 10s. The IP65 enclosure enables natural cooling and
suits both indoor and outdoor use. It operates in a wide temp range from – 20°C to
55°C.
- Safety & Intelligence: The LFP battery ensures high efficiency.
A built – in intelligent BMS enhances safety.
- Durability & Warranty: Boasting a cycle life of ≥6000 cycles
and a 10 – year warranty, it’s certified by UN38.3 and MSDS.
