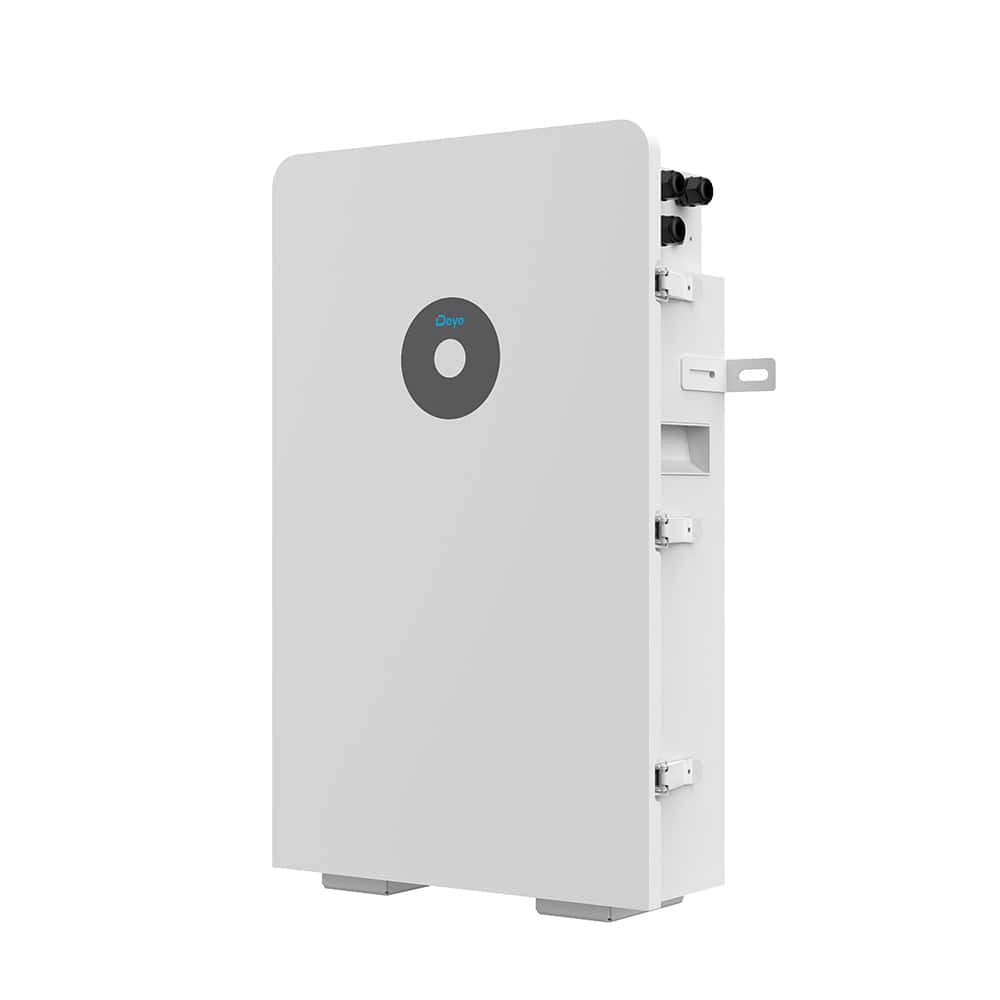

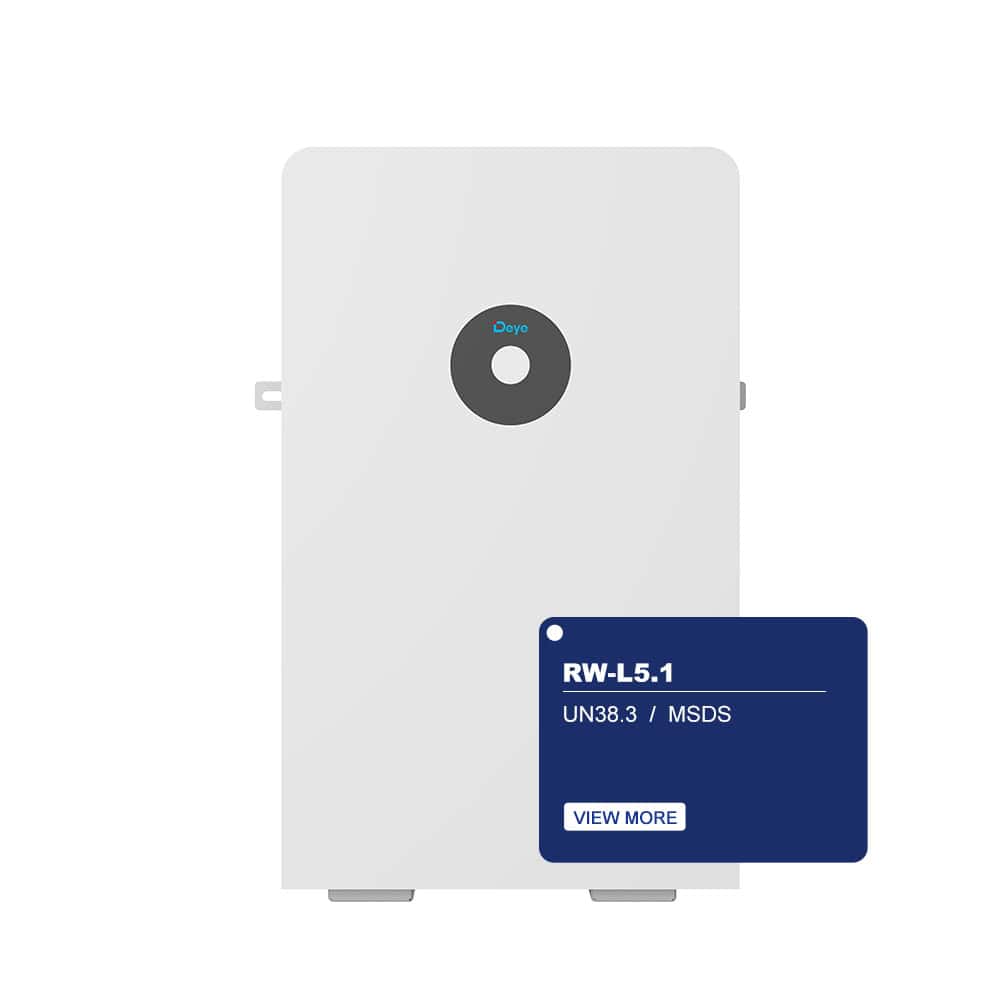

RW-L5.1 (AS, AF, EU, LATAM)

High Energy Capacity: 10.24 kWh nominal energy with 9.22 kWh usable energy (90% DoD).
Scalable Design: Connect up to 32 units in parallel for increased storage capacity.
Wide Operating Temperature Range: Functions efficiently in temperatures from -20°C to 55°C.
Safe Lithium Battery Technology: Utilizes LiFePO4 chemistry with built-in circuit breaker and intelligent BMS for enhanced safety.
IP65 Protection: Suitable for indoor and outdoor installation, resistant to dust and water.
Flexible Performance: Max charge/discharge current of 125A, with peak discharge of 200A for quick power needs.
User Monitoring: Master LED indicator to easily check state of charge (SOC) and operating status.
Long Cycle Life: Up to 6000 cycles, ensuring longevity and durability.

SKU: RW-L5.1 (AS, AF, EU, LATAM)Category: Low Voltage Series (LV)

Description

Introducing our advanced energy storage battery, a game-changer for backup power and residential energy needs.

Specification	Details
Capacity	125A
Nominal Voltage	51.2V
Usable Energy	5.12 kWh (@ 90% DoD)
Charge/Discharge Current – Max Continuous	200A
Charge/Discharge Current – Peak	240A (10 seconds)
Dimensions	420 mm (W) x 680 mm (H) x 160 mm (D)
Weight	Approximately 50 kg
Operating Temperature – Charge	0°C to 55°C
Operating Temperature – Discharge	-20°C to 55°C
Cycle Life	More than 6000 cycles
Installation	Wall – mounted or floor – mounted options available
Warranty Period	10 years

Flexible Configuration: Supports up to 32 units in parallel. With a 10A current limit, it’s compatible with any inverter for smooth charging and discharging, making it ideal for backup power and homes.
Reliable Performance: Enables max 1C charge and discharge. Boasts a 2C 10s peak discharge current. Housed in an IP65 case with natural cooling, it operates in a wide temperature range of -20°C to 55°C.
Convenient Operation: Features auto battery module networking (no DIP switches needed) and supports Deye remote monitoring and firmware upgrades.
Safer & Smarter Design: Utilizes LFP battery technology for long lifespan and high efficiency. Comes with a built – in circuit breaker and intelligent BMS.
