Description

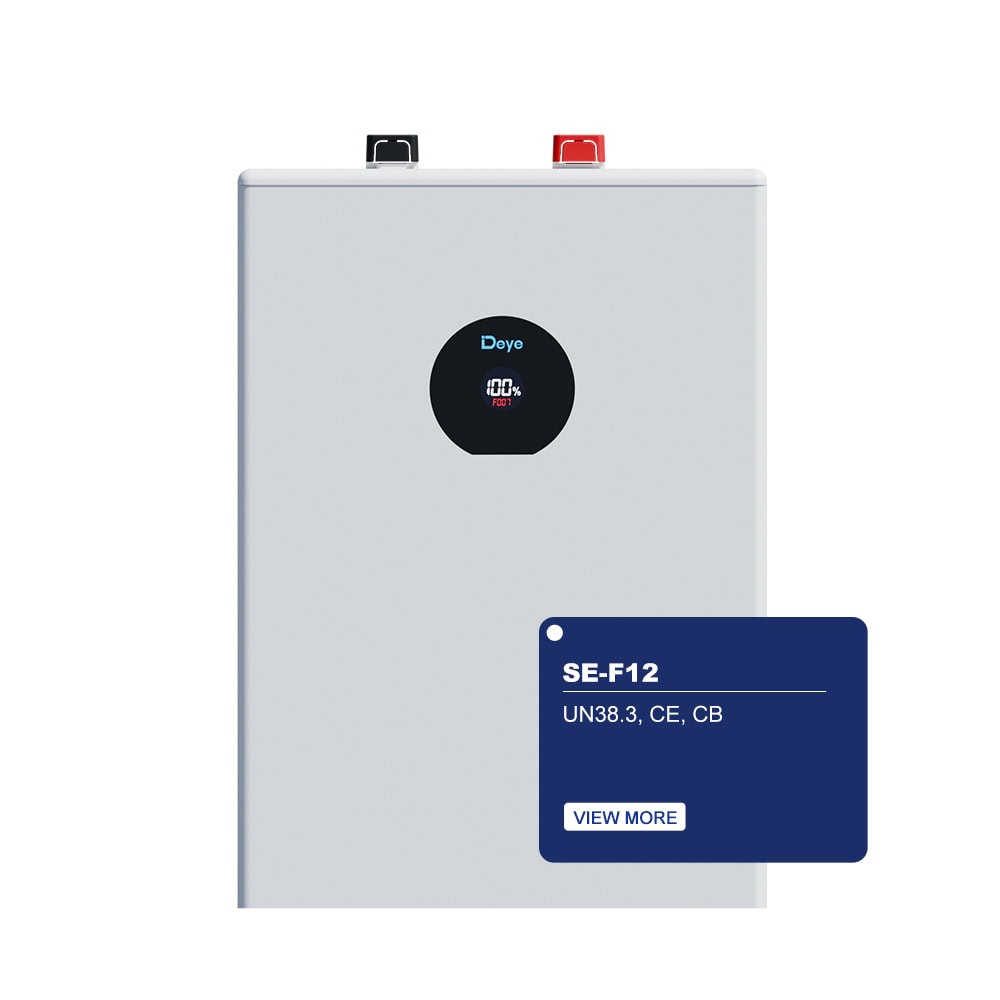

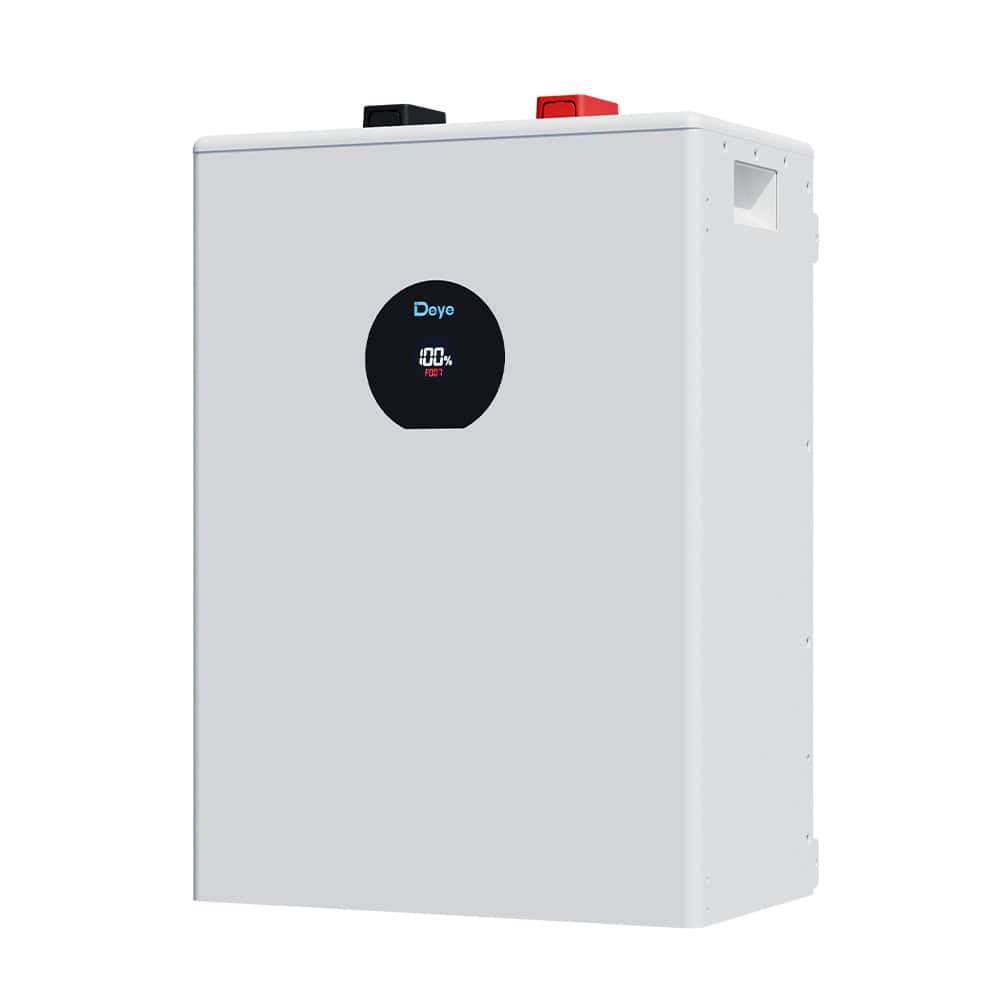

The Deye SE-F12 is a premier energy storage solution, engineered to deliver exceptional reliability, scalability, and efficiency. Whether you need a solar battery for house or a robust system for commercial applications, the SE-F12 is the ultimate choice. It features an advanced LiFePO4 battery chemistry, built with high-quality lfp cell technology, ensuring a long-lasting and energy-efficient system.
| Parameter | SE-F12 |
|---|---|
| Battery Chemistry | LiFePO4 (featuring advanced lfp cell technology) |
| Scalability | Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge) |
| Nominal Energy | 11.8 kWh |
| Voltage Range | 44.8 V ~ 57.6 V |
| Max. Continuous Current | 230 A |
| Peak Current | 280 A (10 seconds) |
| Cycle Life | 6,000+ cycles at 80% DoD |
| Dimensions | 400 × 583 × 232 mm |
| Weight | 84kg |
Key Features
- Large Capacity & Scalability for Energy Storage: The SE-F12 offers a nominal energy capacity of 11.8 kWh, making it a perfect solar battery for house and for applications requiring significant energy storage.
- Highly Efficient Power Handling: With a nominal voltage of 51.2 V and an operating voltage range of 44.8 V – 57.6 V, the SE-F12 delivers peak performance. It handles a maximum discharge current of 280 A (for up to 10 seconds) and a continuous current of 230 A.
- Durable Design and Longevity: The IP21-rated structure protects internal components and supports both wall-mounted and stack-mounted installations. Boasting a cycle life of over 6,000 cycles (at 80% Depth of Discharge), the SE-F12 is a dependable long-term investment in energy storage.

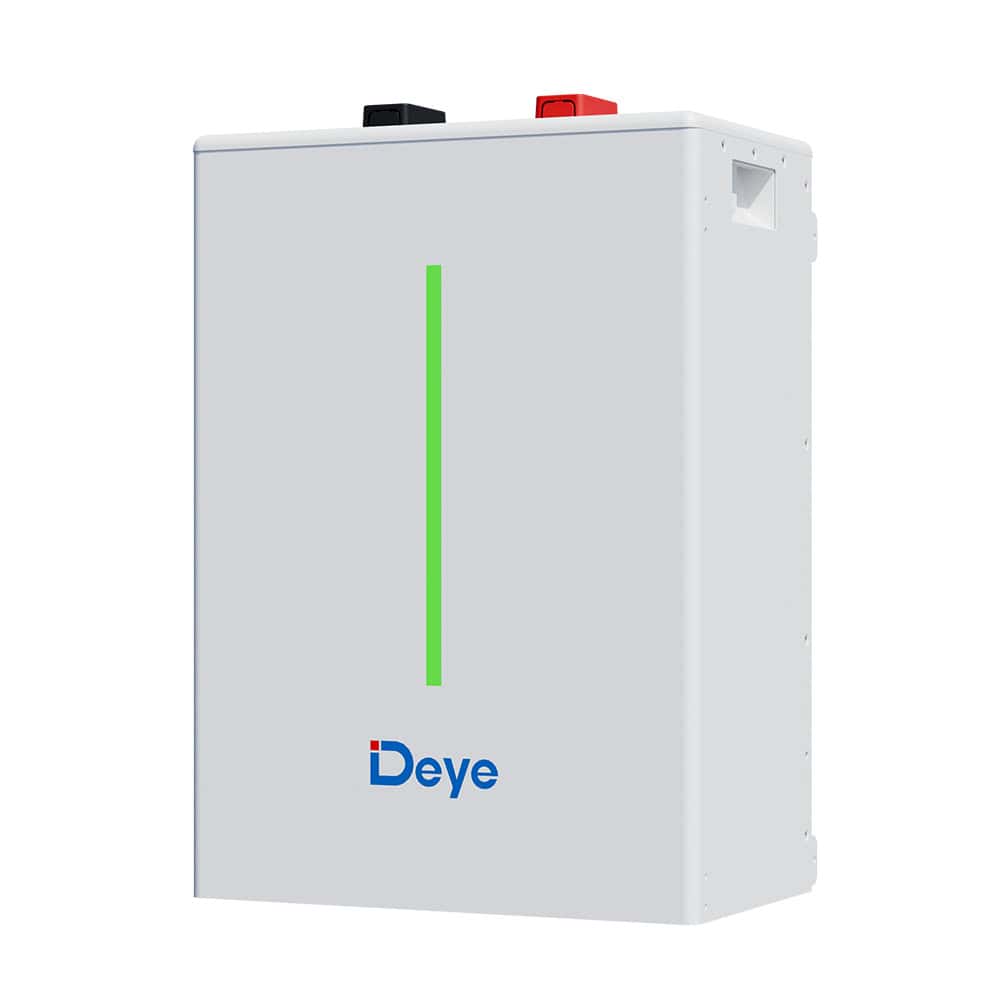

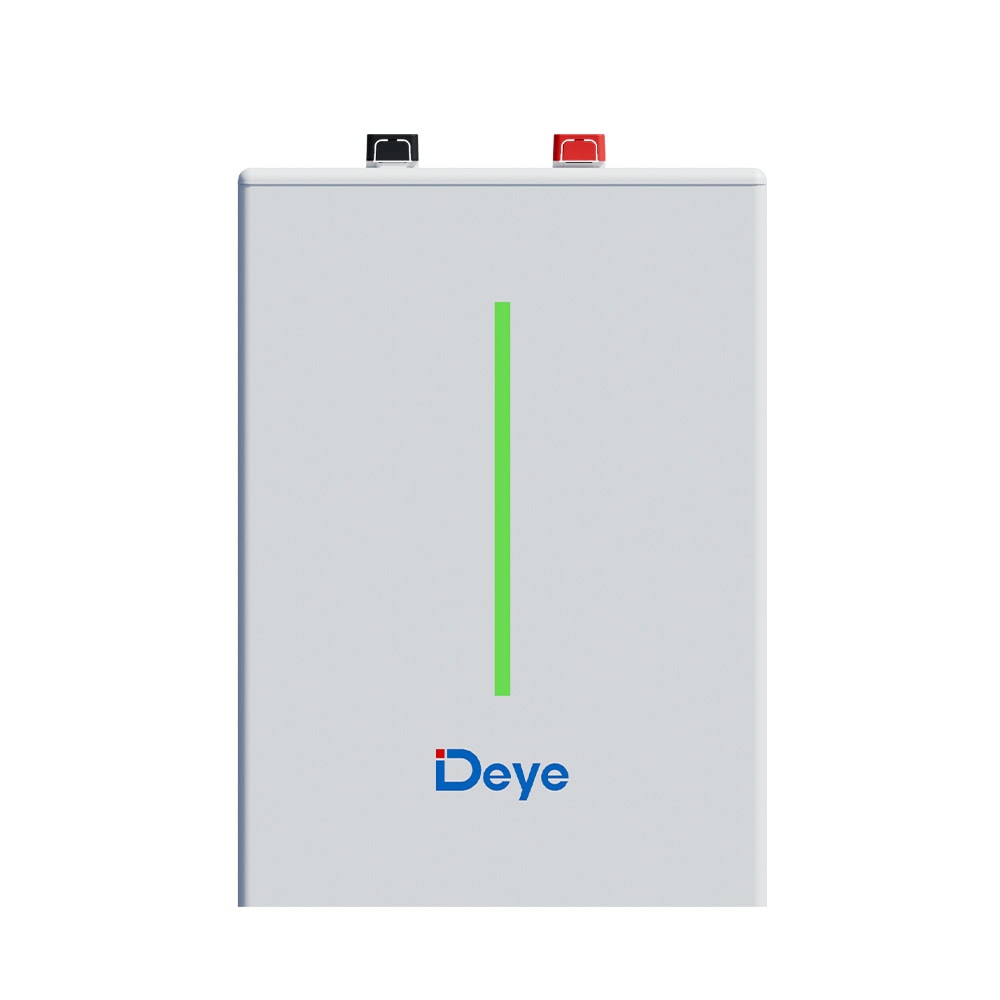

- Adaptability and Monitoring: Integrated LED indicators (SOC, running, and alarm status) provide real-time visibility. With CAN2.0, RS485, and Bluetooth communication, the system seamlessly integrates with inverters and local monitoring through the Deye App, putting control of your energy storage at your fingertips.
- Wide Operating Range: The unit operates efficiently across a wide range of conditions, with a charging temperature range of 0°C to 55°C and a discharging range of -20°C to 55°C.
The SE-F12 is fully compatible with Deye’s Smart Energy Management System. This enables advanced features like zero-export control, intelligent load management, and solar EV charging. When paired with Deye inverters and monitoring tools, it ensures smooth, smart energy distribution.
