Description

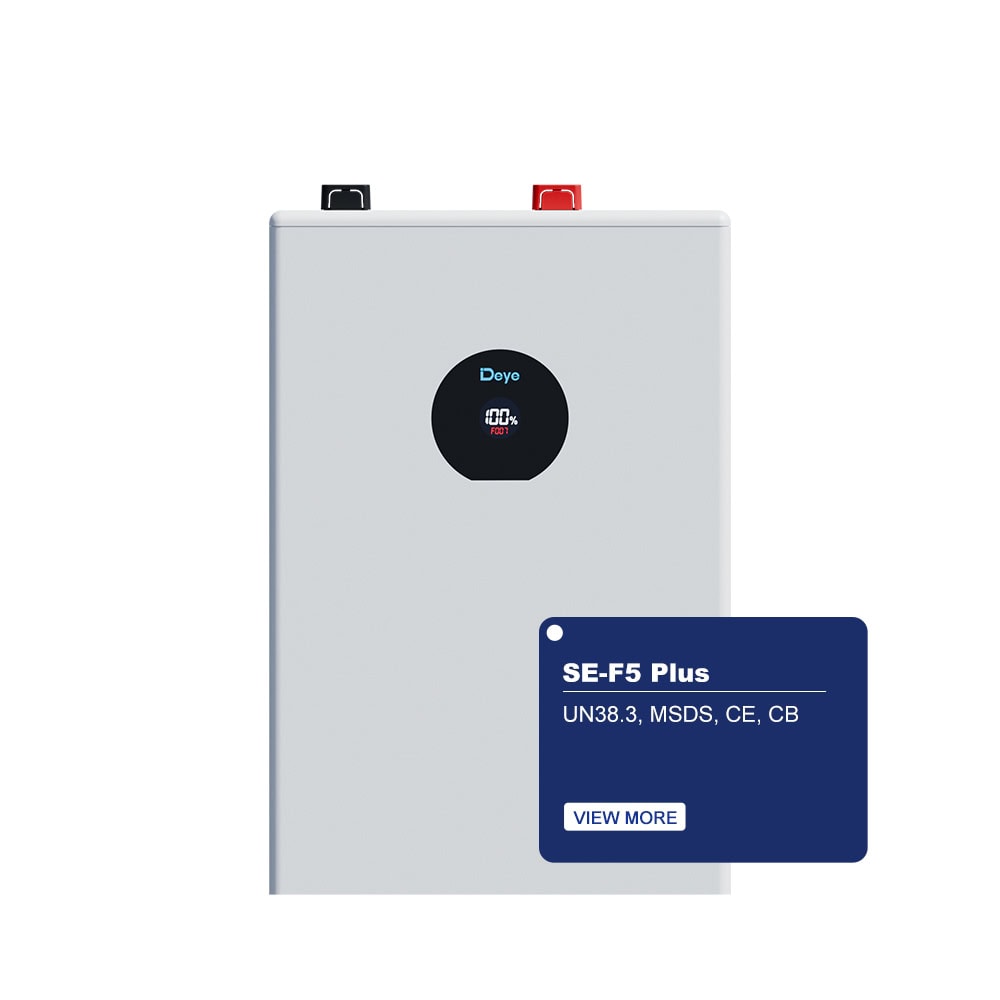

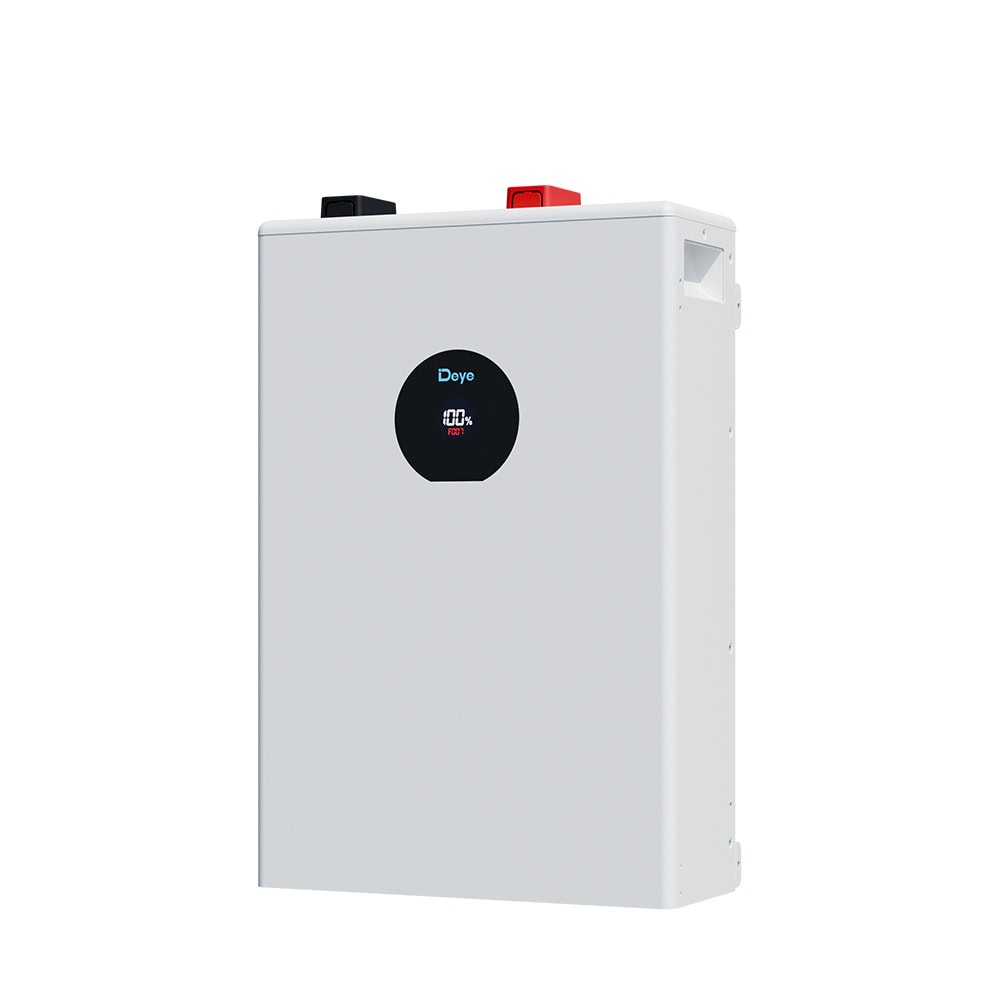

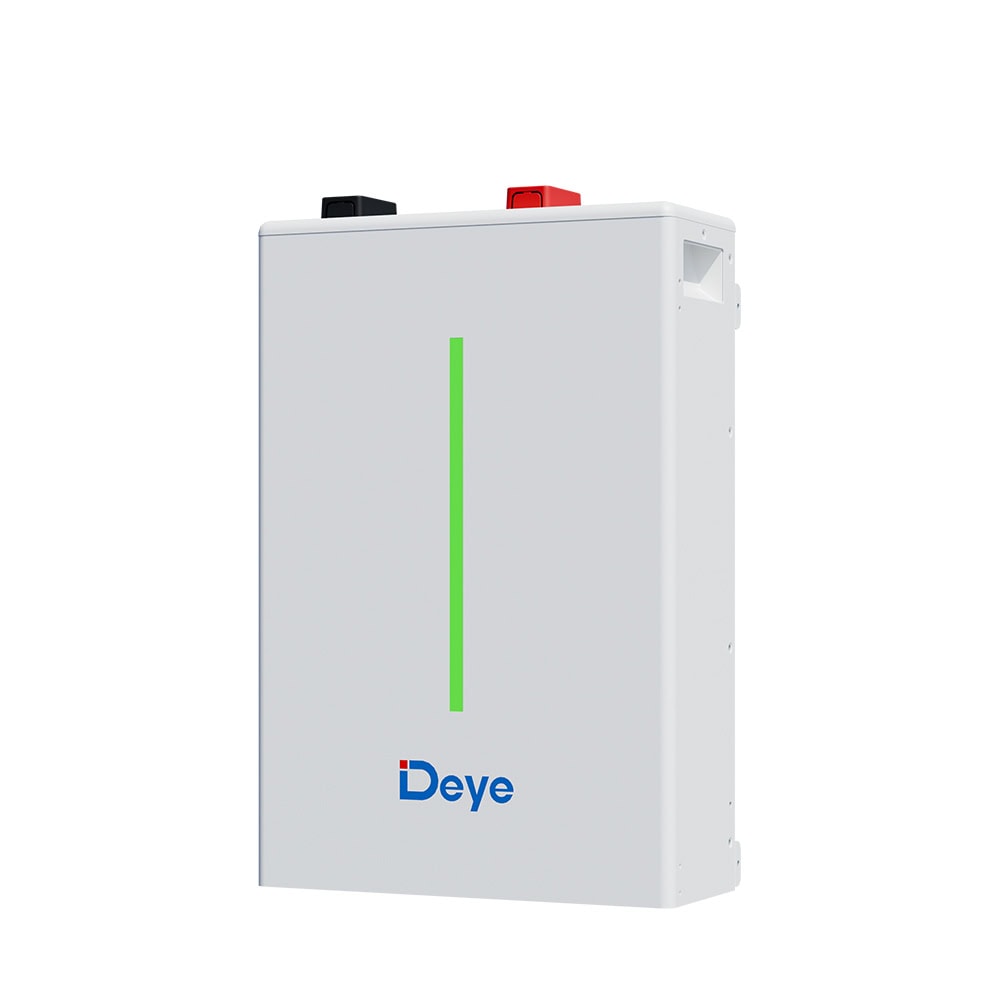

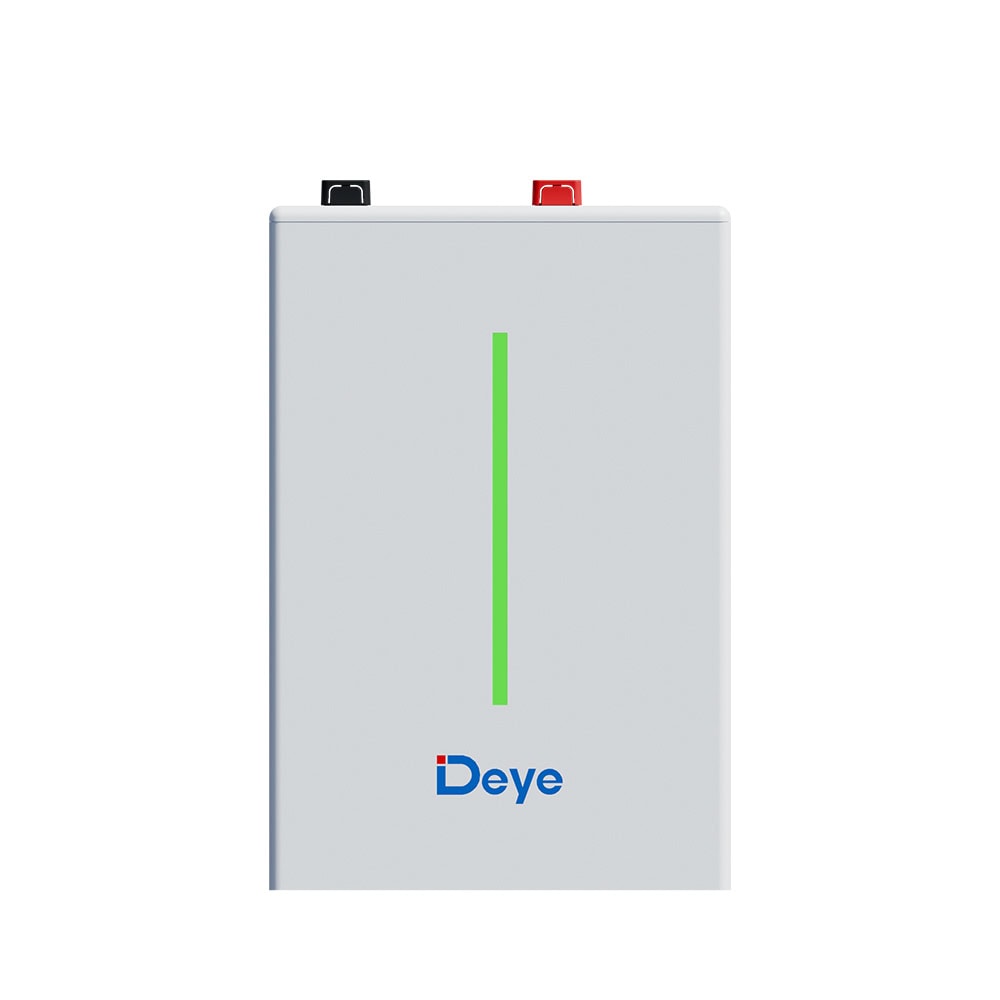

SE – F5 Plus is a cutting – edge energy storage system that leverages LiFePO₄ battery
chemistry to deliver reliable and efficient power storage. It boasts a nominal energy of
5.12 kWh, with a capacity of 100 Ah and a nominal voltage of 51.2 V (operating voltage
range: 44.8 V – 57.6 V).
| Specification |
Details |
| Battery Chemistry
|
LiFePO₄ |
| Capacity |
100 Ah |
| Nominal Voltage
|
51.2 V |
| Operating Voltage
|
44.8 V – 57.6 V
|
| Scalability |
Max 32 pcs in parallel (Max. 64
pcs can parallel with CAN-Bridge) |
| Nominal Energy
|
5.12 kWh |
| Charge Current
|
Max. Continuous:
100 A / Peak: 120 A (10 sec) |
| Discharge Current
|
Max. Continuous:
120 A / Peak: 150 A (10 sec) |
| Recommended Depth
of Discharge (DoD) |
90% |
| Dimensions (W × H
× D) |
370 × 548 × 140
mm |
| Approximate
Weight |
41 kg |
| LED Indicators
|
SOC, working,
protecting, & Buzzer |
| IP Rating of
Enclosure |
IP21 |
| Operating
Temperature |
Charge: 0~55°C /
Discharge: -20°C~55°C |
| Storage
Temperature |
0~35°C |
| Relative Humidity
|
95%
(non-condensing) |
| Altitude |
≤3000 m |
Key Features & Benefits:
- Powerful Charging & Discharging: Supports a max. continuous
charge current of 100 A (peak 120 A for 10 sec) and max. continuous discharge
current of 120 A (peak 150 A for 10 sec), enabling swift energy transfer.
- High Utilization & Durability: Features a recommended depth of
discharge (DoD) of 90% for maximum energy use. Operates reliably in a wide
temperature range: charge at 0 – 55°C, discharge at – 20°C – 55°C, with natural
cooling.
- Flexible Installation & Monitoring: Offers wall – mounted,
floor – mounted, and stack – mounted options. Comes with LED indicators (SOC,
working, protecting) and buzzer, plus communication via CAN2.0, RS485, Bluetooth +
APP for easy monitoring.
- Safety & Compliance: Equipped with an advanced BMS with active
fuse for comprehensive protection. Certified by UN38.3 and MSDS, ensuring safety and
quality.
