SE-G10.2 (AS, AF, LATAM)

High Capacity: 200 Ah nominal capacity with 10.24 kWh energy storage
Safe and Reliable: Cobalt-free lithium iron phosphate (LFP) chemistry
Wide Operating Range: Functions effectively in temperatures from -20°C to 55°C
Modular Design: Expandable up to 64 units in parallel for scalable energy solutions
User-Friendly: Automatic networking, remote monitoring, and easy firmware upgrades
Eco-Friendly: Constructed with non-toxic, pollution-free materials
Versatile Mounting Options: Supports rack, wall, or stacked installations for efficient space usage
Robust Communication: Equipped with CAN 2.0 and RS485 ports for seamless connectivity
Long Cycle Life: Over 6000 cycles at optimal conditions, ensuring durability and reliability

SKU: SE-G10.2 (AS, AF, LATAM)Category: Low Voltage Series (LV)

Description

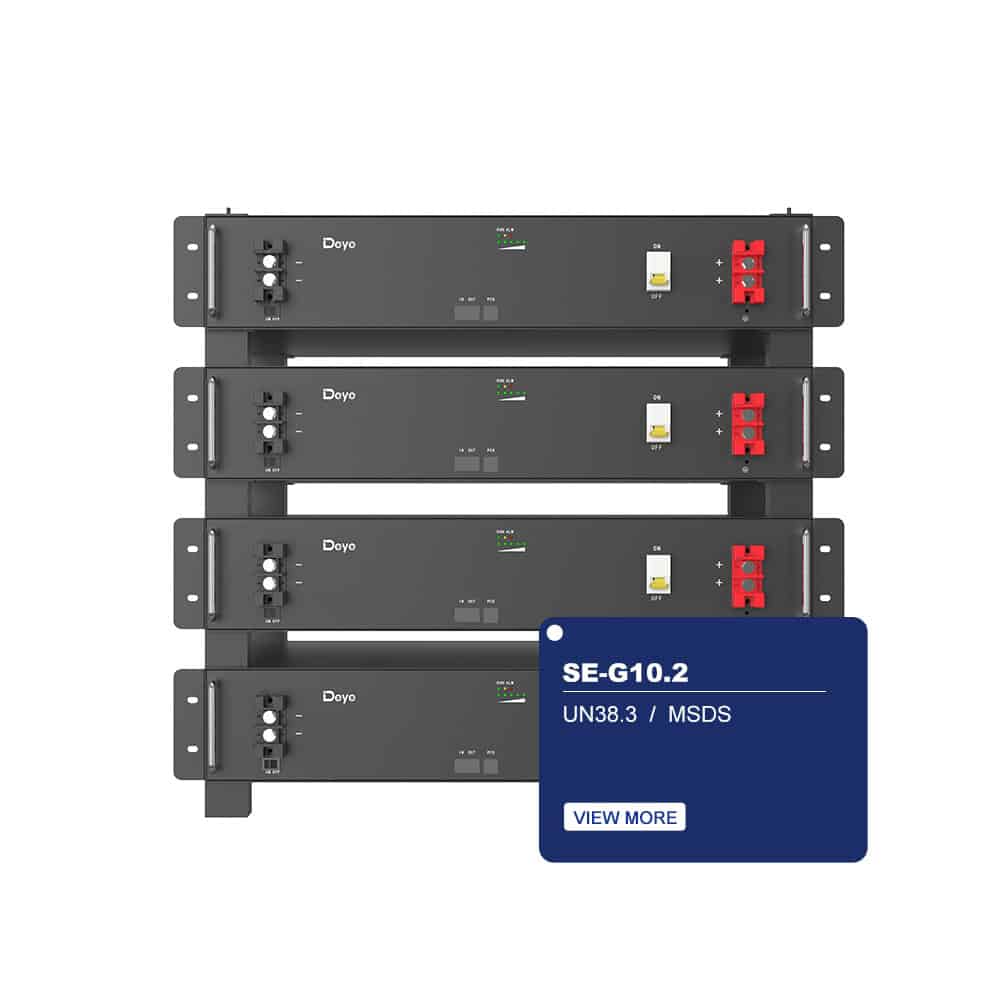

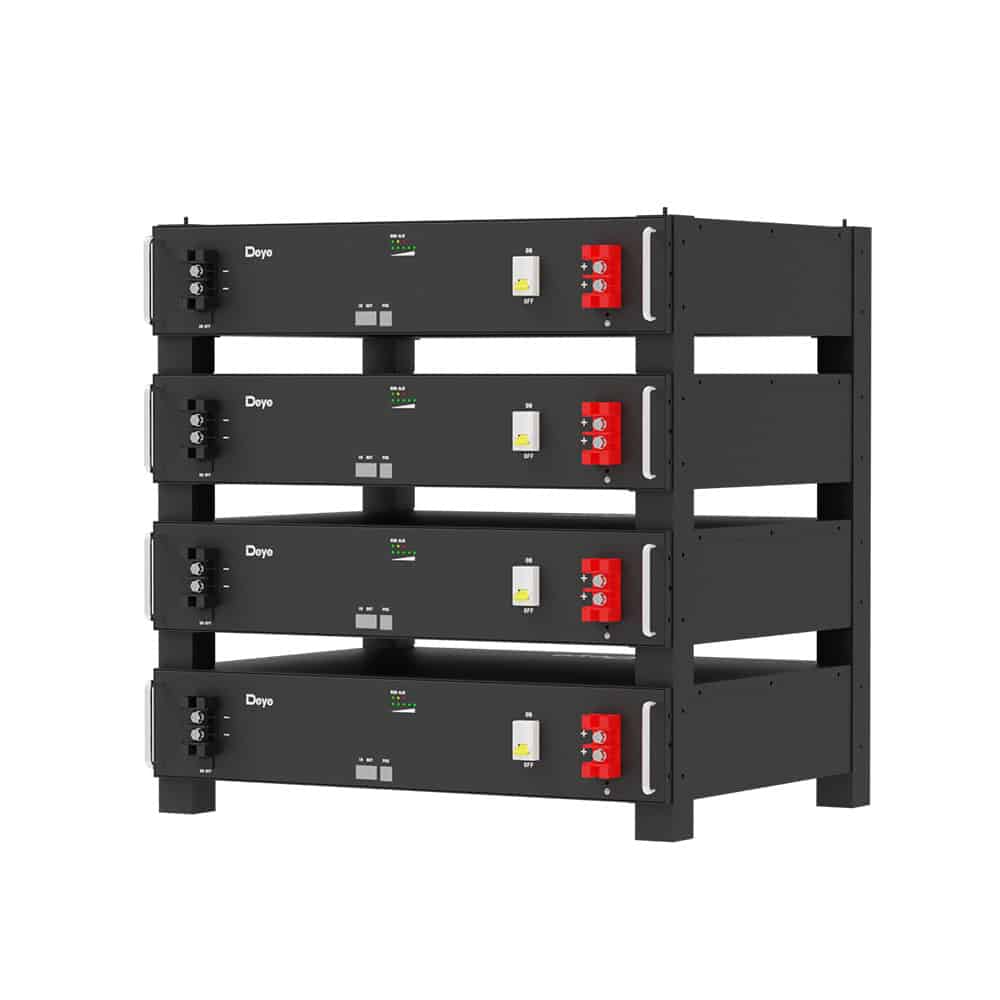

Introducing the SE-G10.2 battery, powered by Lithium Iron Phosphate (LiFePO4) chemistry, designed to deliver outstanding performance and reliability.

Specification	Details
Model	SE – G10.2
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Capacity	200 Ah
Nominal Voltage	51.2 V
Operating Voltage	44.8 V – 57.6 V
Nominal Energy	10.24 kWh
Cell Configuration	2P16S
Max. Charge Current	100 A continuous, 200 A peak (10 sec)
Max. Discharge Current	100 A continuous, 200 A peak (10 sec)
Recommended Depth of Discharge	80% DoD
Dimensions	710 mm (W) × 540 mm (D) × 133 mm (H)
Weight	Approx. 85 kg
Cycle Life	≥6000 cycles (at 25℃ with 0.2C discharge and 80% DoD)
Warranty Period	5 years
Communication Port	CAN2.0, RS485
IP Rating	IP20
Operating Temperature	Charging: 0℃ to 55℃, Discharge: -20℃ to 55℃
Storage Temperature	0℃ to 35℃
Relative Humidity	Up to 95%
Altitude	≤2000 m

High-Performance Specs: Boasts a nominal capacity of 200 Ah, nominal voltage of 51.2 V, and nominal energy of 10.24 kWh. It supports a max continuous charge/discharge current of 100 A (200 A peak for 10 sec) and an operating voltage range of 44.8 V – 57.6 V.
Exceptional Durability: Offers a cycle life of ≥6000 cycles (at 25℃ with 0.2C discharge and 80% DoD) and comes with a 5-year warranty. Even at end – of – life (EOL), it retains 70% capacity.
Versatile Operation: Charging temperature ranges from 0℃ to 55℃, while discharge is possible from -20℃ to 55℃. It’s suitable for both residential and commercial use, with easy expandability – up to 64 units can be paralleled for 327kWh/655kWh total capacity.
User-Friendly & Safe: Enables easy operation and maintenance with auto battery module networking (no DIP switches), remote monitoring/ firmware upgrade, external power supply activation to prevent suspension, and over-discharge direct recharge. The built-in circuit breaker, intelligent BMS, and eco-friendly, non-toxic materials ensure safety.
