Description

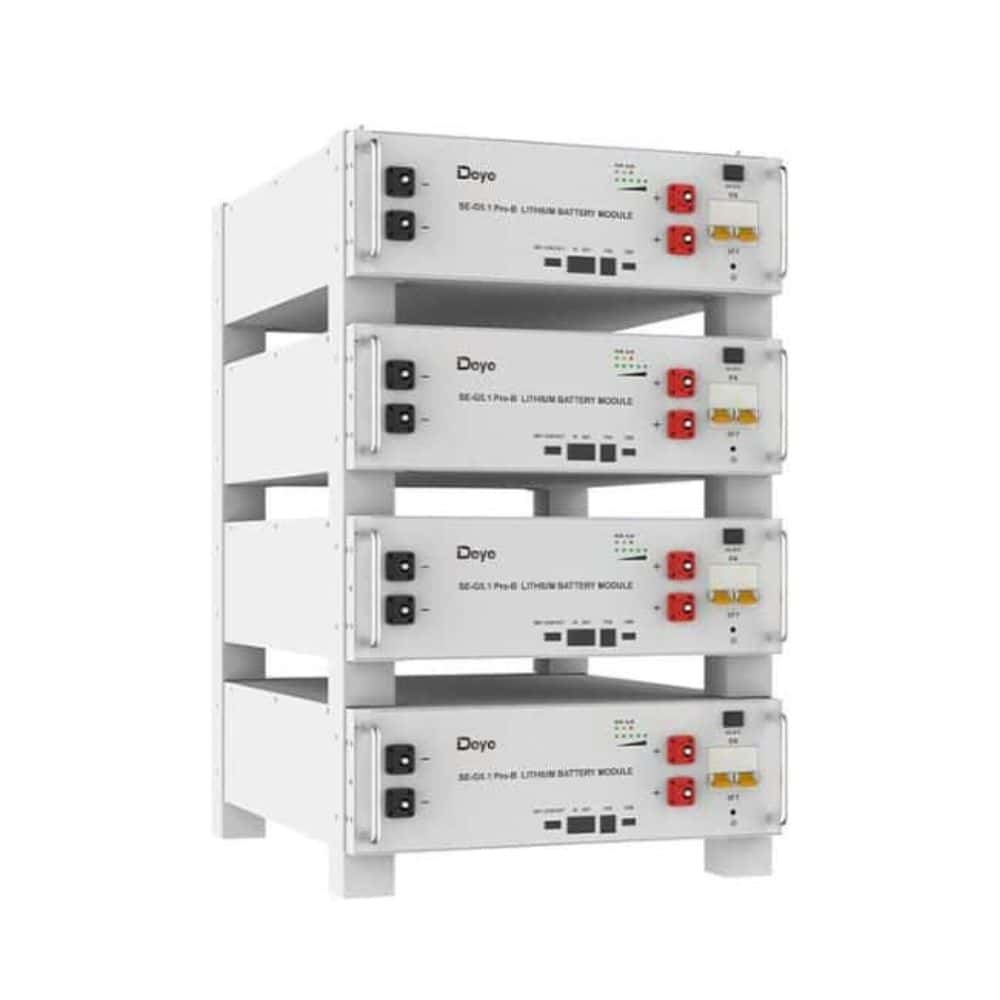

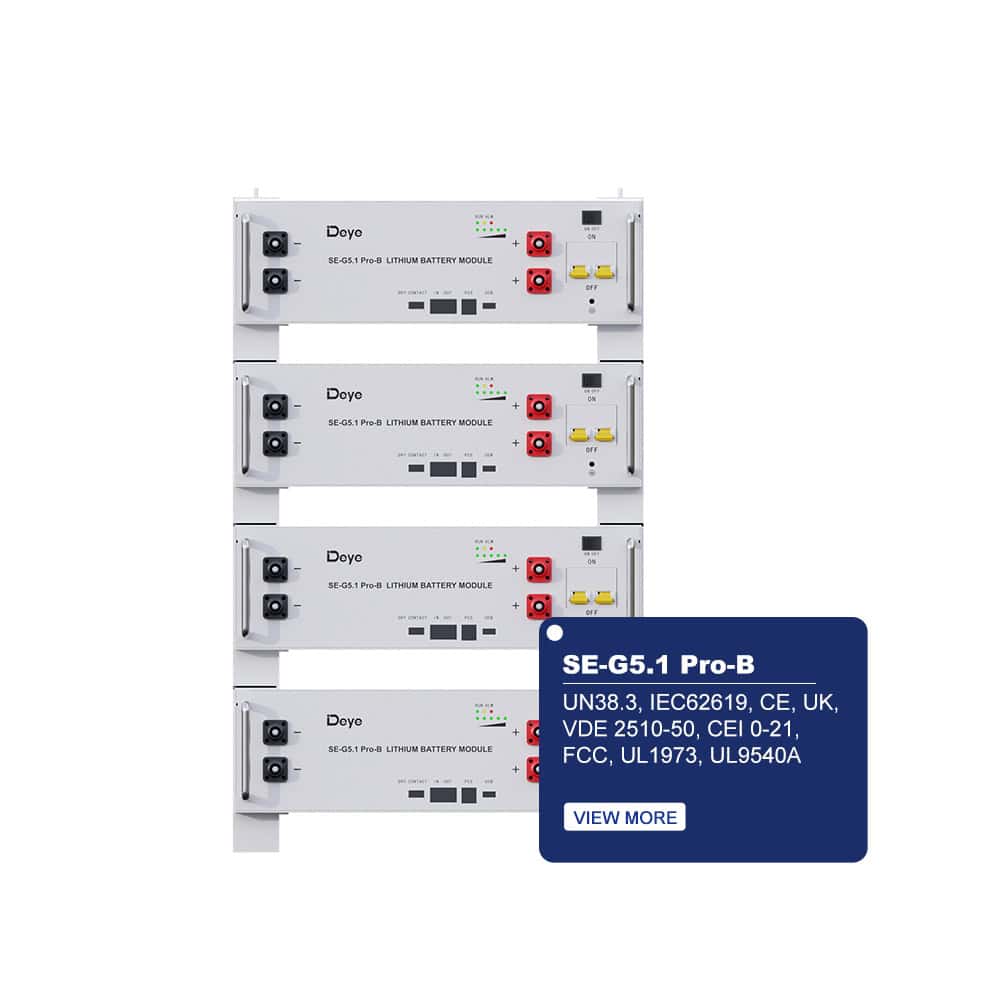

SE-G5.1 Pro-B Residential ESS Solution
SE-G5.1 Pro-B is an outstanding residential Energy Storage System (ESS) solution,
designed to meet diverse energy needs with remarkable features.
| Category |
Specification
|
| Battery Chemistry
|
LiFePO₄ |
| Built-in Circuit
Breaker |
125A 2P, 60Vdc
|
| Capacity (Ah)
|
100 |
| Scalability |
Max. 64 pcs pack
(327kWh) in parallel (Max. 32 pcs no external setup) |
| Nominal Voltage
(V) |
51.2 |
| Operating Voltage
(V) |
43.2 – 57.6 |
| Energy (kWh) |
5.12 |
| Usable Energy
(kWh) |
4.6 |
| Recommended Depth
of Discharge |
90% |
| Dimension (W×H×D,
mm) |
440 × 133 × 540
|
| Weight
Approximate (kg) |
45 |
| Master LED
Indicator |
5LED (SOC: 20% –
SOC100%), 3LED (working, alarming, protecting) |
| IP Rating of
Enclosure |
IP20 |
| Operating
Temperature |
Charge: 0~55°C
(Optional heating: -20°C – 55°C), Discharge: -20°C~55°C |
| Altitude |
≤2000m |
| Cycle Life |
≥6000 (25°C±2°C,
0.5C / 0.5C, 90%DOD, 70%EOL) |
| Installation |
Wall-Mounted,
Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm)
|
| Communication
Port |
CAN2.0, RS485
|
| Warranty Period
|
10 years |
| Certification
|
UN38.3, IEC62619,
CE, UK, VDE 2510-50, CEI 0-21, FCC, UL1973, UL9540A, UL9540 |
Key Benefits
- Flexible & Scalable: Boasting a modular design, it allows easy
expansion—up to 64 units can be paralleled, reaching a max capacity of 327kWh. It
suits both residential and commercial use, boosting self-consumption ratios
effectively.
- Safe & Reliable: Equipped with cobalt-free Lithium Iron
Phosphate (LFP) batteries, it ensures safety, long lifespan, high efficiency, and
power density. An intelligent BMS offers complete protection. It supports high
discharge power, has an IP20 rating, natural cooling, and operates in a wide
temperature range of -20°C to 55°C.
- Convenient & Smart: Battery modules auto-network, enabling easy
maintenance. It supports remote monitoring, upgrade, and USB drive firmware update.
- Eco-Friendly & Space-Smart: Made with environmental protection
materials, the whole module is non-toxic and pollution-free. With ultra-thin,
super-thin, and modular design options, it fits diverse installation scenarios and
space requirements.
