Description
Key Features
- High Efficiency: Achieves a maximum efficiency of up to 97.5% with a single MPPT tracker.
- Low Start-up Voltage: Starts up at a low voltage of 80V, enabling optimal performance even in low-light conditions.
- Zero Export Application: Supports zero export functionality, allowing you to manage your energy consumption and maximize self-consumption.
- VSG Application: Enables voltage support capabilities, contributing to grid stability.
- String Intelligent Monitoring: Offers optional string intelligent monitoring for enhanced system diagnostics.
- Wide Output Voltage Range: Provides flexible output voltage for compatibility with various grid configurations.
- Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.
- Comprehensive Protection: Includes DC polarity reverse connection protection, AC output overcurrent/overvoltage protection, short-circuit protection, thermal protection, and surge protection.
- Monitoring & Communication: Supports various communication interfaces, including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232, and monitoring modes.
Technical Specifications
| Parameter | SUN-1K-G04 P1-EU-AM1 | SUN-1.5K-G04 P1-EU-AM1 | SUN-2K-G04 P1-EU-AM1 | SUN-2.2K-G04 P1-EU-AM1 | SUN-2.5K-G04 P1-EU-AM1 | SUN-2.7K-G04 P1-EU-AM1 | SUN-3K-G04 P1-EU-AM1 | SUN-3.3K-G04 P1-EU-AM1 | SUN-3.6K-G04 P1-EU-AM1 | SUN-4K-G04 P1-EU-AM1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. PV Input Power (kW) | 1.3 | 2 | 2.6 | 2.9 | 3.3 | 3.5 | 3.9 | 4.3 | 4.7 | 5.2 |
| Max. PV Input Voltage (V) | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Start-up Voltage (V) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| MPPT Voltage Range (V) | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 | 70-500 |
| Rated PV Input Voltage (V) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 420 |
| Max. Operating PV Input Current (A) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max. Input Short Circuit Current (A) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rated AC Output Active Power (kW) | 1 | 1.5 | 2 | 2.2 | 2.5 | 2.7 | 3 | 3.3 | 3.6 | 4 |
| Rated AC Output Current (A) | 4.6/4.4 | 6.8/6.5 | 9.1/8.7 | 10/9.6 | 11.4/10.9 | 12.3/11.8 | 13.7/13.1 | 15/14.4 | 16.4/15.7 | 18.2/17.4 |
| Max. AC Output Current (A) | 5/4.8 | 7.5/7.2 | 10/9.6 | 11/10.6 | 12.5/12 | 13.5/13 | 15/14.4 | 16.5/15.8 | 18/17.3 | 20/19.2 |
| Rated Output Voltage/Range (V) | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 | 220/230 |
| Max. AC Output Apparent Power (kVA) | 1.1 | 1.65 | 2.2 | 2.42 | 2.75 | 2.97 | 3.3 | 3.63 | 3.96 | 4.4 |
General Data
- Inverter Topology: Non-Isolated
- Cabinet Size: 280×310×184 mm (excluding connectors and brackets)
- Weight: 6.35 kg
- Cooling Type: Natural Cooling
- Warranty: 5 Years
Standards & Certifications
- Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105
- EMC/Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Ingress Protection Rating: IP 65

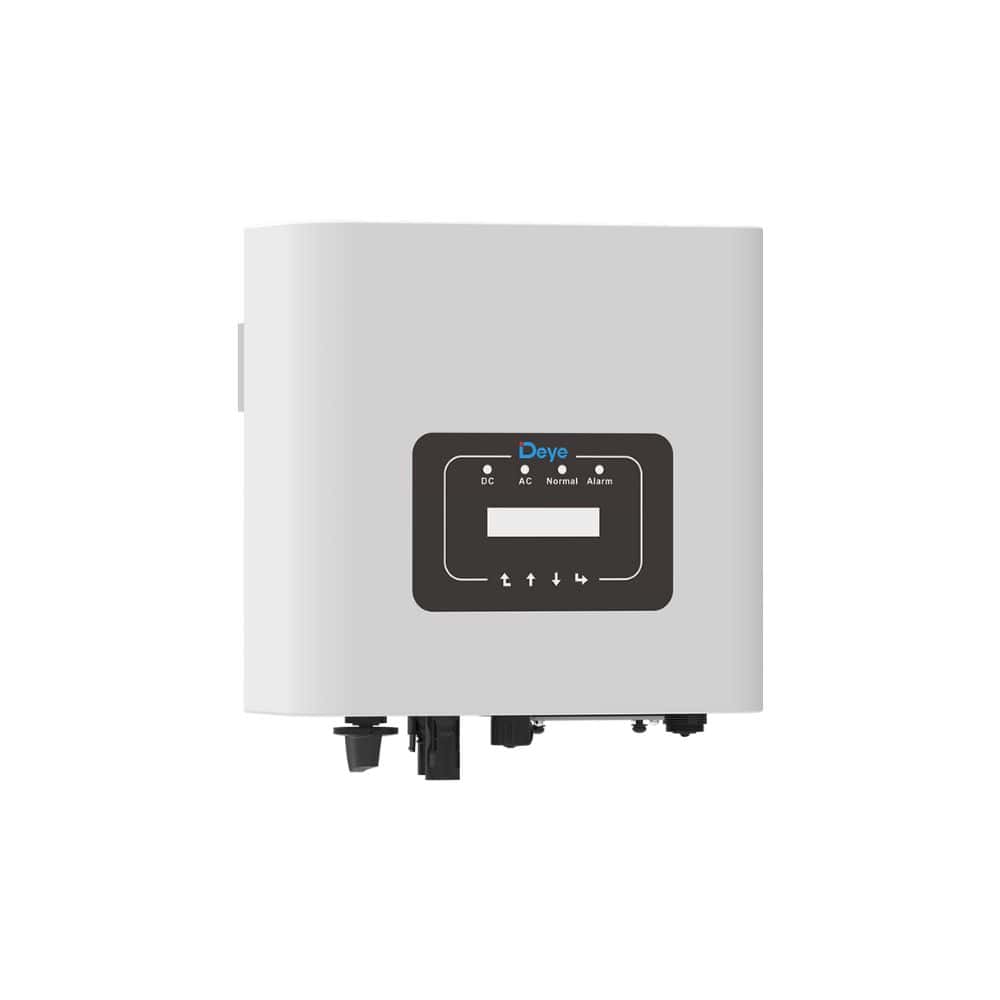

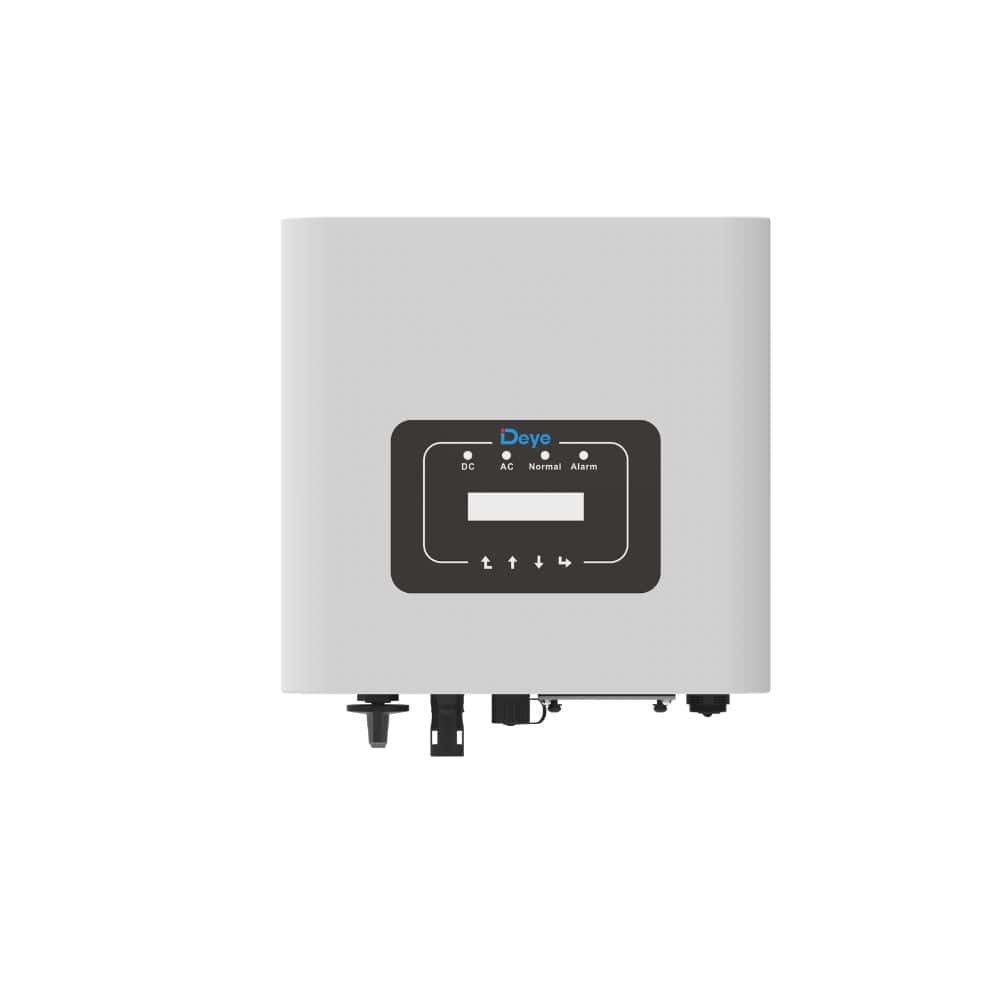

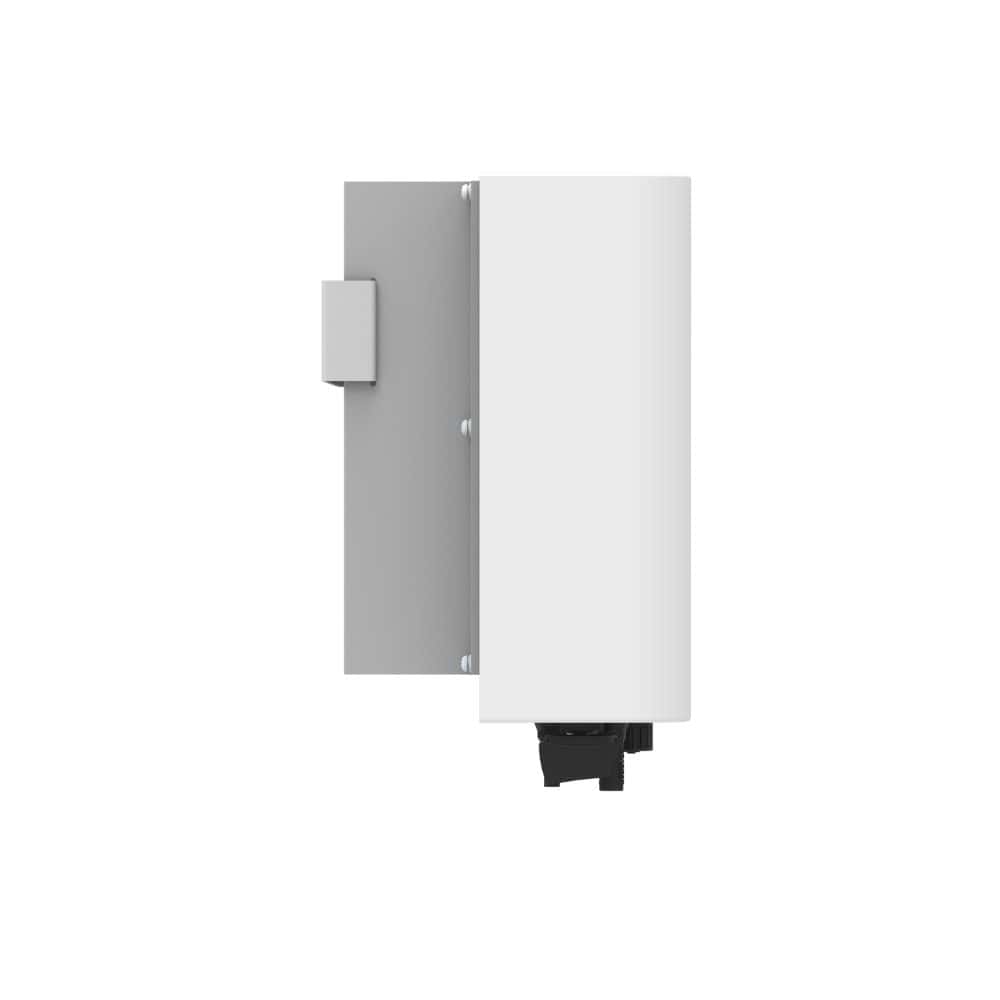

The Deye SUN-(1-4)K-G04P1-EU-AM1 is a reliable and feature-rich inverter for residential and commercial solar PV installations. It offers high efficiency, versatile functionality, and robust protection for a secure and optimized energy generation solution.
