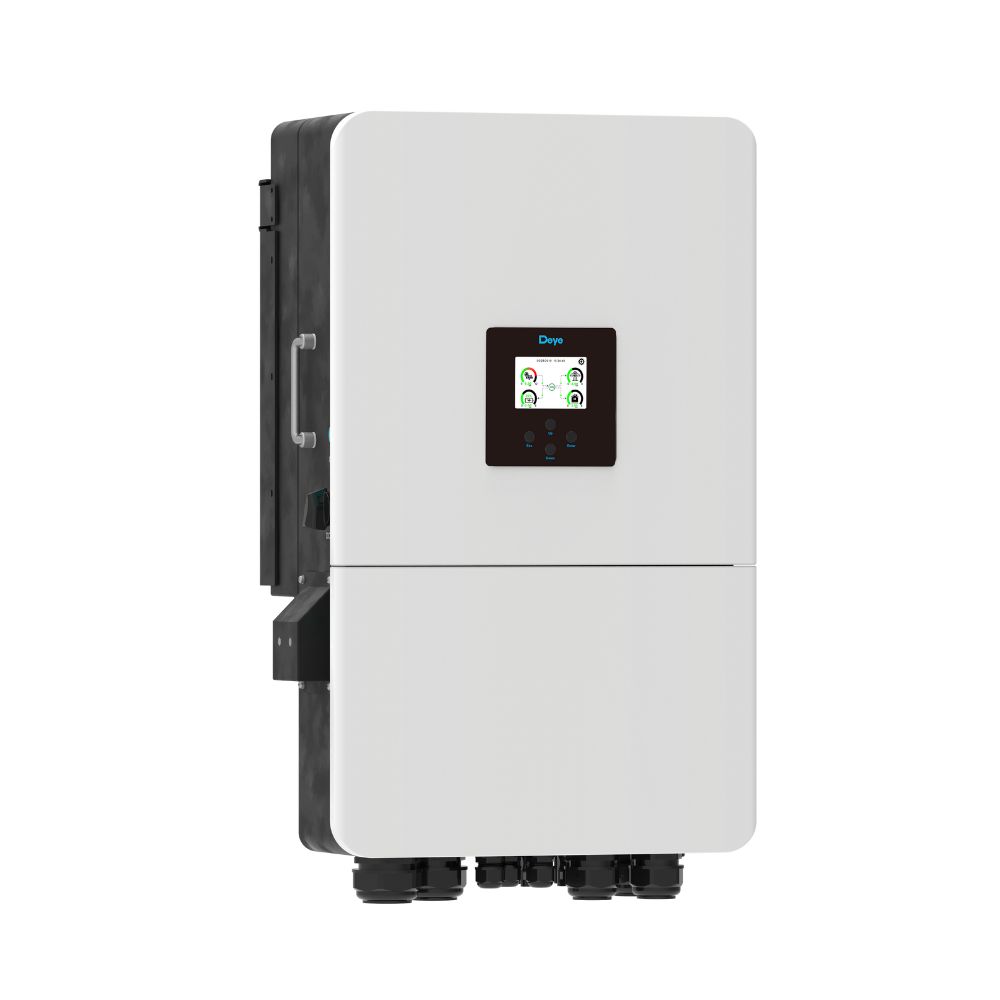

SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter

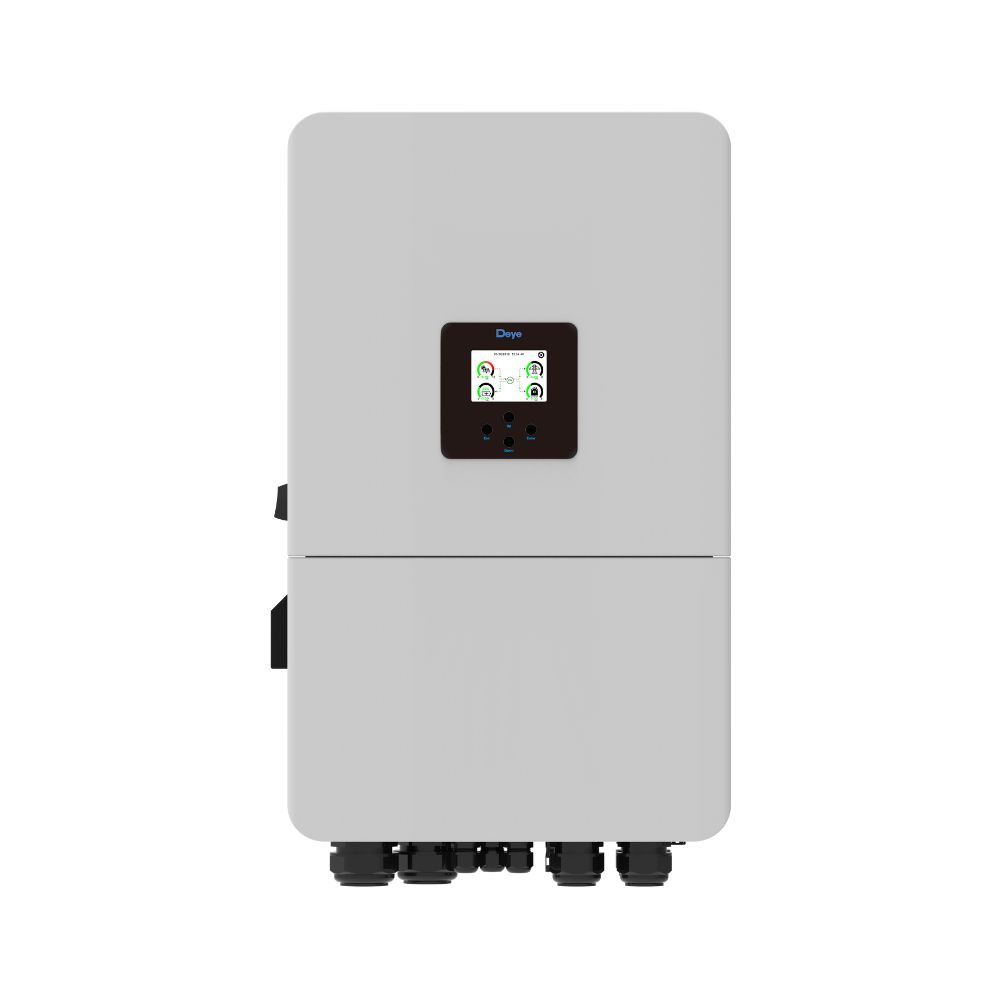

SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter - Image 2

SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter

Battery Compatibility: Supports lead-acid or lithium-ion batteries (40-60V, 2 inputs), with max charging/discharging currents up to 350A and adaptive Li-ion charging via BMS
PV Input Capacity: Handles max PV access power up to 40,000W, with 2 MPPT trackers (2 strings each) and a 160-650V MPPT voltage range
AC Performance: Rated active power from 14,000W to 20,000W, supports 3L+N+PE grid connection, with THDi <3% and DC injection <0.5% In
Efficiency & Protection: Boasts max efficiency 97.6%, Euro efficiency 97.0%, and integrated protections (DC reverse polarity, AC overcurrent/voltage, etc.)
General Features: Operates in -40~+60°C, IP65 rated, with communication options (RS485/ WIFI/4G etc.) and 5-10 year warranty

SKU: SUN-14/15/16/18/20K-SG05LP3-EU-SM2Category: Hybrid Inverter, Inverter

Description

SUN-5/6/8/10/12K-SG04LP3-EU Three Phase Hybrid Inverter
100% unbalanced output, max. output up to 50% rated power for each phase AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 350A 48V low voltage battery, transformer isolation design 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model	SUN-14K-SG05LP3-EU-SM2	SUN-15K-SG05LP3-EU-SM2	SUN-16K-SG05LP3-EU-SM2	SUN-18K-SG05LP3-EU-SM2	SUN-20K-SG05LP3-EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	260	280	300	330	350
Max. Discharging Current (A)	260	280	300	330	350
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	2
PV String Input Data
Max. PV Access Power (W)	28000	30000	32000	36000	40000
Max. PV Input Power (W)	22400	24000	25600	28800	32000
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	160-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	36+36
Max. Input Short-Circuit Current (A)	54+54
No. of MPP Trackers/ No. of Strings/MPP Tracker	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	14000	15000	16000	18000	20000
Max. AC Input/Output Apparent Power (VA)	15400	16500	17600	19800	22000
Rated AC Input/Output Current (A)	21.3/20.3	22.8/21.8	24.3/23.2	27.3/26.1	30.4/29
Max. AC Input/Output Current (A)	23.4/22.4	25/24	26.7/25.6	30/28.7	33.4/31.9
Max. Continuous AC Pass-through (grid to load) (A)	70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
