Description

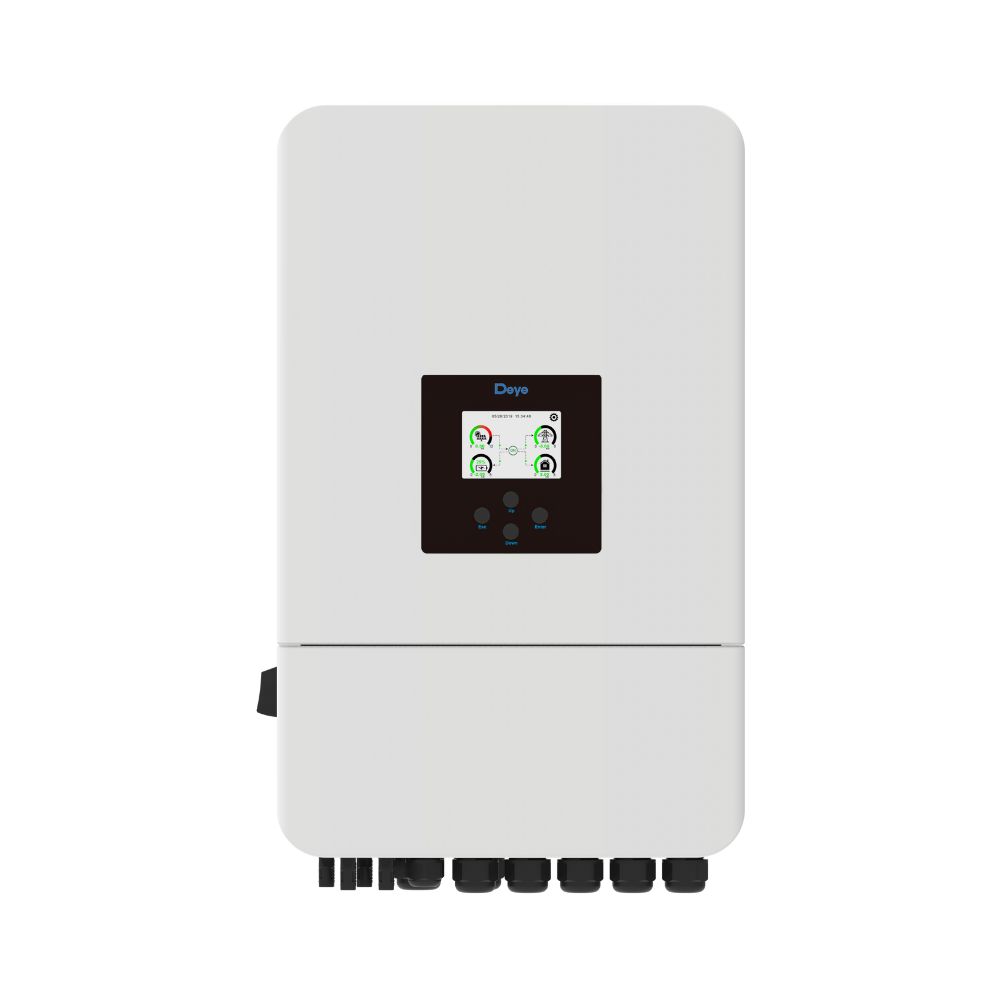

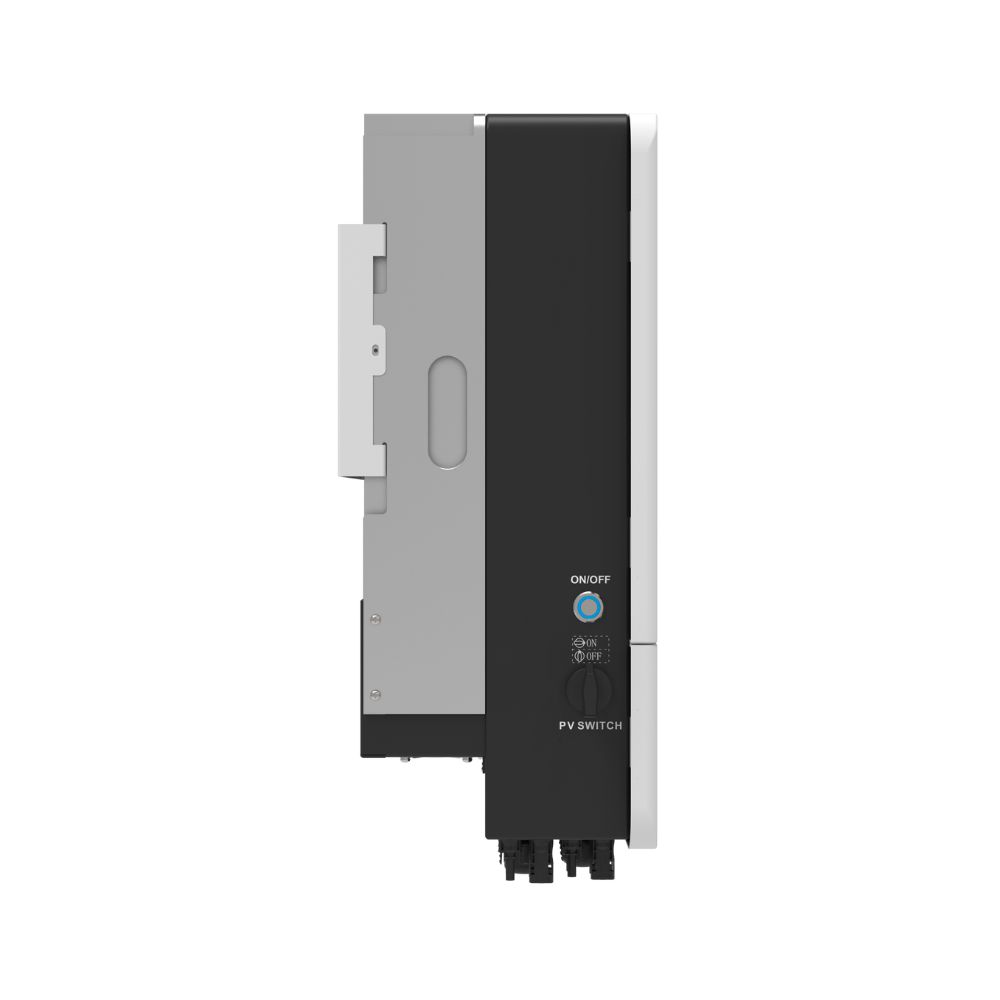

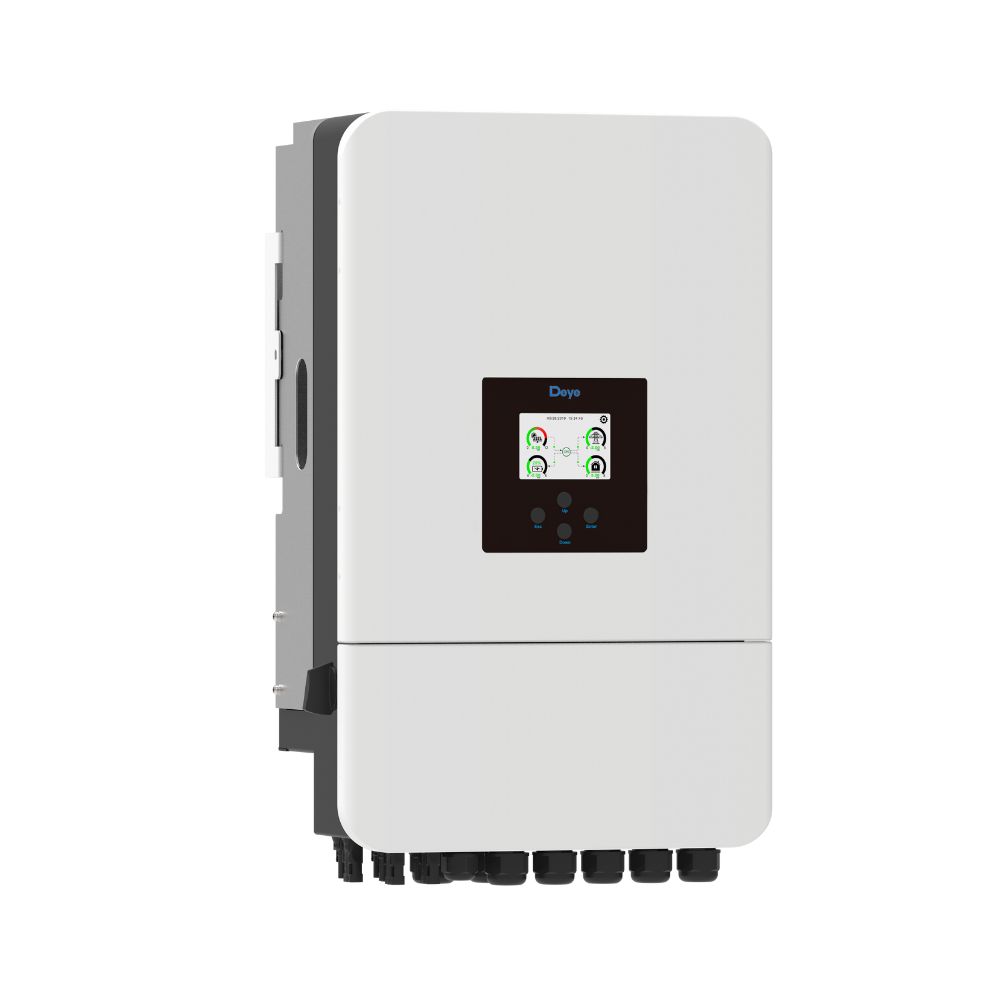

SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P Single Phase Hybrid Inverter |
|||||||
|---|---|---|---|---|---|---|---|
|
|
|
Model
|
SUN-3.6K-SG05
LP1-EU-SM2-P
|
SUN-5K-SG05
LP1-EU-SM2-P
|
SUN-6K-SG05
LP1-EU-SM2-P
|
SUN-7K-SG05
LP1-EU-SM2-P
|
SUN-7.6K-SG05
LP1-EU-SM2-P
|
SUN-8K-SG05
LP1-EU-SM2-P
|
SUN-10K-SG05
LP1-EU-SM2-P
|
|---|---|---|---|---|---|---|---|
|
Battery
Input Data
|
|||||||
|
Battery
Type
|
Lead-acid
or Lithium-ion
|
||||||
|
Battery
Voltage Range (V)
|
40-60
|
||||||
|
Max.
Charging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
210
|
|
Max.
Discharging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
210
|
|
Charging
Strategy for Li-ion
Battery
|
Self-adaption
to BMS
|
||||||
|
Number
of Battery Input
|
1
|
||||||
|
PV
String Input
Data
|
|||||||
|
Max.
PV Access Power (W)
|
7200
|
10000
|
12000
|
14000
|
15200
|
16000
|
20000
|
|
Max.
PV Input Power (W)
|
5760
|
8000
|
9600
|
11200
|
12160
|
12800
|
16000
|
|
Max.
PV Input Voltage (V)
|
500
|
||||||
|
Start-up
Voltage (V)
|
125
|
||||||
|
MPPT
Voltage Range (V)
|
150-425
|
||||||
|
Rated
PV Input Voltage (V)
|
370
|
||||||
|
Max.
Operating PV Input Current
(A)
|
18+18
|
32+32
|
|||||
|
Max.
Input Short-Circuit Current
(A)
|
27+27
|
48+48
|
|||||
|
No.
of MPP Trackers/No. of Strings
MPP Tracker
|
2/1+1
|
2/2+2
|
|||||
|
AC
Input/Output
Data
|
|||||||
|
Rated
AC Input/Output Active Power
(W)
|
3600
|
5000
|
6000
|
7000
|
7600
|
8000
|
10000
|
|
Max.
AC Input/Output Apparent Power
(VA)
|
3960
|
5500
|
6600
|
7700
|
8360
|
8800
|
11000
|
|
Rated
AC Input/Output Current
(A)
|
16.4/15.7
|
22.8/21.8
|
27.3/26.1
|
31.9/30.5
|
34.6/33.1
|
36.4/34.8
|
45.5/43.5
|
|
Max.
AC Input/Output Current
(A)
|
18/17.3
|
25/24
|
30/28.7
|
35/33.5
|
38/36.4
|
40/38.3
|
50/47.9
|
|
Max.
Continuous AC Passthrough (grid
to load) (A)
|
35
|
40
|
50
|
||||
|
Peak
Power (off-grid) (W)
|
2
times of rated power, 10s
|
||||||
|
Power
Factor Adjustment Range
|
0.8
leading to 0.8 lagging
|
||||||
|
Rated
Input/Output Voltage/Range
(V)
|
220/230
0.85Un-1.1Un
|
||||||
|
Rated
Input/Output Grid
Frequency/Range(Hz)
|
50/45-55,
60/55-65
|
||||||
|
Grid
Connection Form
|
L+N+PE
|
||||||
|
Total
Current Harmonic Distortion
THDI
|
<3%
(of nominal power)
|
||||||
|
DC
Injection Current
|
<0.5%
In
|
||||||
|
Efficiency
|
|||||||
|
Max.
Efficiency
|
97.6%
|
||||||
|
Euro
Efficiency
|
96.5%
|
||||||
|
MPPT
Efficiency
|
>99%
|
||||||
