SUN-3K-SG04LP1-24-EU-SM1

Battery Compatibility: Supports Lead-acid or Lithium-ion batteries; features self-adaption to BMS for Li-ion batteries and allows 1 battery input
PV String Input: Offers varying max PV access power (6000W to 12000W), MPPT voltage range of 150-425V, and multiple MPP trackers (1/1 or 2/1+1 configurations)
AC Performance: Provides rated active power from 3000W to 6000W, supports peak power (2x rated power for 10s off-grid), and ensures low THDi (<3% of nominal power) with L+N+PE grid connection
Charging/Discharging: Boasts max charging/discharging currents (up to 140A/135A respectively) and flexible battery voltage ranges (20-30V or 40-60V)

SKU: SUN-3K-SG04LP1-24-EU-SM1Category: Hybrid Inverter, Inverter

Description

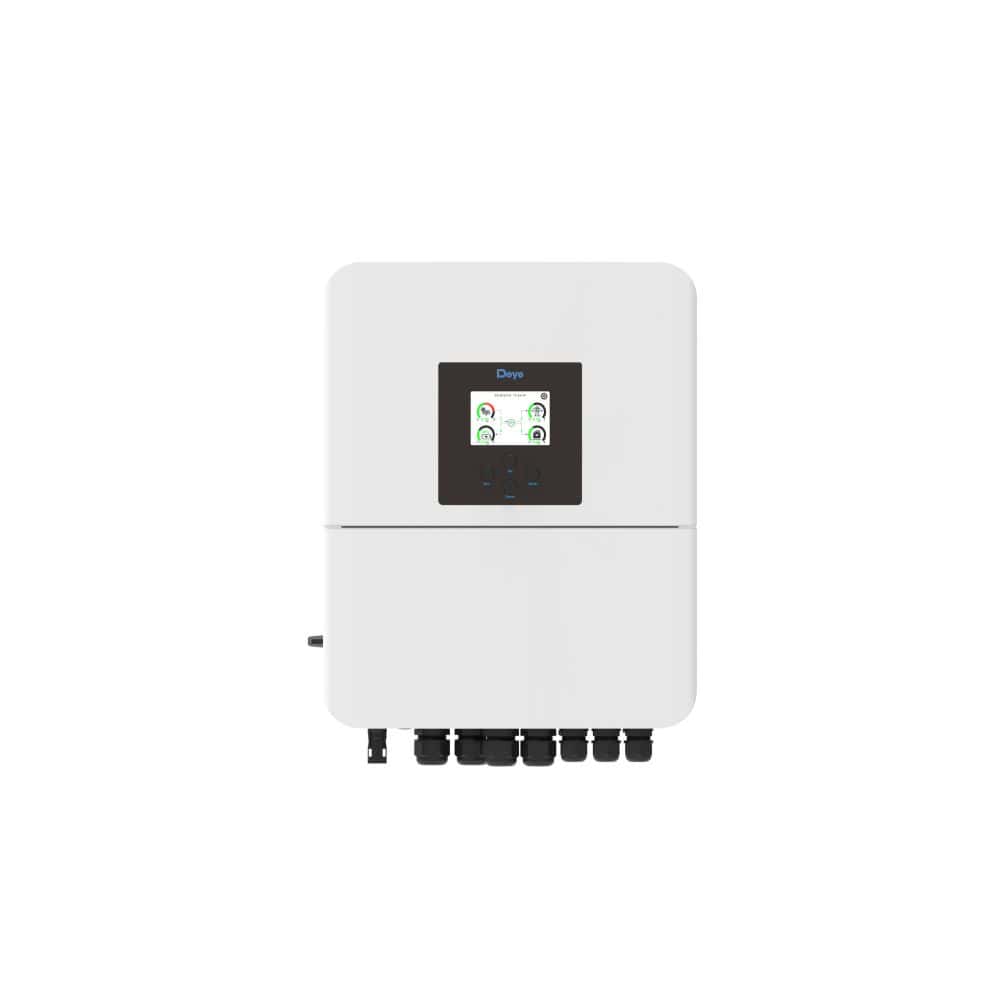

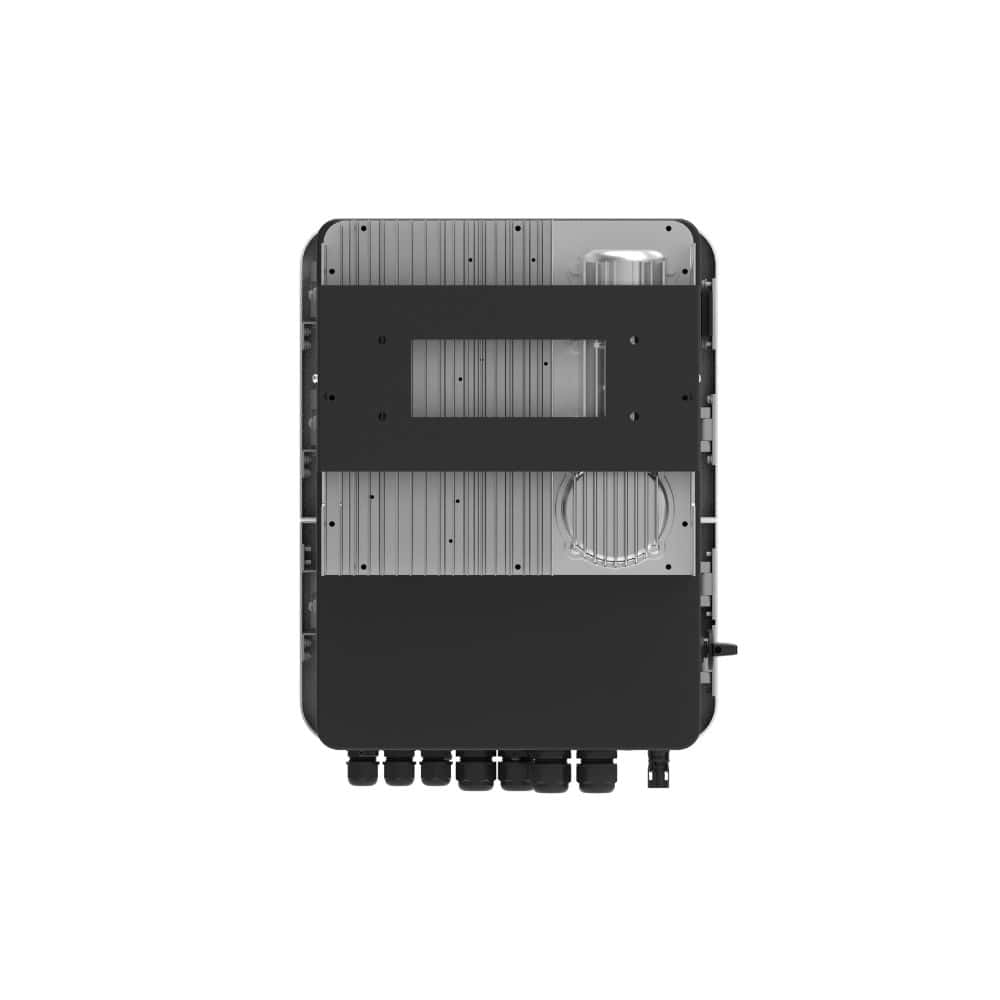

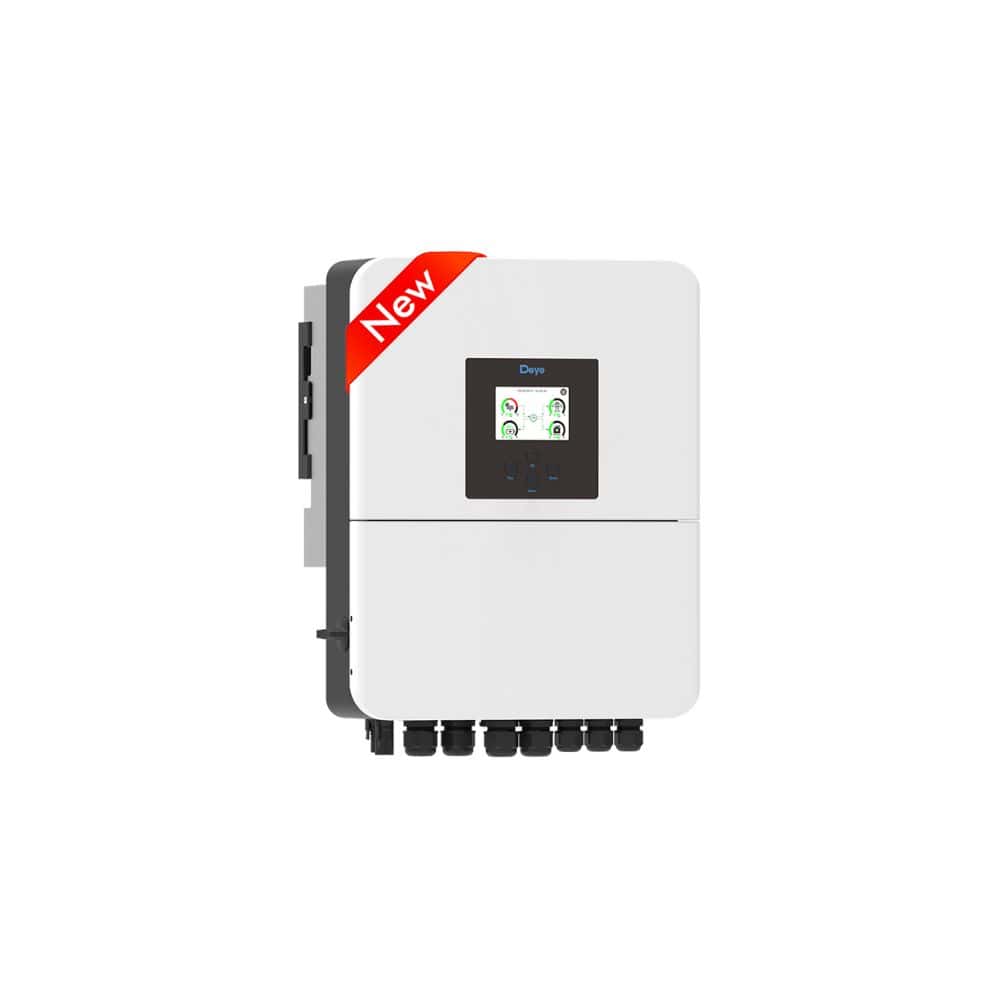

SUN-3K-SG04LP1-24-EU-SM1 Single Phase Hybrid Inverter
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model	SUN-3K-SG04LP1 -24-EU-SM1	SUN-3K-SG04LP1 -EU-SM1	SUN-3.6K-SG04LP1 -EU-SM2	SUN-5K-SG04LP1 -EU-SM2	SUN-6K-SG04LP1 -EU-SM2
Model	SUN-3K-SG04LP1 -24-EU-SM1	SUN-3K-SG04LP1 -EU-SM1	SUN-3.6K-SG04LP1 -EU-SM2	SUN-5K-SG04LP1 -EU-SM2	SUN-6K-SG04LP1 -EU-SM2	Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30	40-60	40-60	40-60	40-60
Max. Charging Current (A)	140	70	90	120	135
Max. Discharging Current (A)	140	70	90	120	135
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	6000	6000	7200	10000	12000
Max. PV Input Power (W)	4800	4800	5760	8000	9600
Max. PV Input Voltage (V)			500
Start-up Voltage (V)			125
MPPT Voltage Range (V)			150-425
Rated PV Input Voltage (V)			370
Max. Operating PV Input Current (A)	18			18+18
Max. Input Short-Circuit Current (A)	27			27+27
No. of MPP Trackers/ No. of Strings MPP Tracker	1/1			2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	3000			3600	5000
Max. AC Input/Output Apparent Power (VA)	3300			3960	5500
Rated AC Input/Output Current (A)	13.7/13.1			16.4/15.7	22.8/21.8
Max. AC Input/Output Current (A)	15/14.4			18/17.3	25/24
Max. Continuous AC Passthrough (grid to load) (A)	35				40
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
