SUN-5/6/7.6/8K-SG02LP2-US-AM2

Battery Compatibility: Supports Lead-acid or Lithium-ion batteries, with a voltage range of 40-60V. Offers max charging/discharging currents up to 250A (depending on model) and self-adaptive BMS charging for Li-ion
PV Input Capacity: Handles max PV input power up to 18,000W, with a max voltage of 500V and MPPT range of 150-425V. Features multiple MPP trackers (up to 3) and string configurations
AC Performance: Provides rated active/apparent power up to 12,000W/VA, with max AC currents up to 50A. Supports peak off-grid power (2x rated for 10s), flexible power factor adjustment, and low harmonic distortion (<3%)

SKU: SUN-5/6/7.6/8K-SG02LP2-US-AM2Category: Hybrid Inverter, Inverter

Description

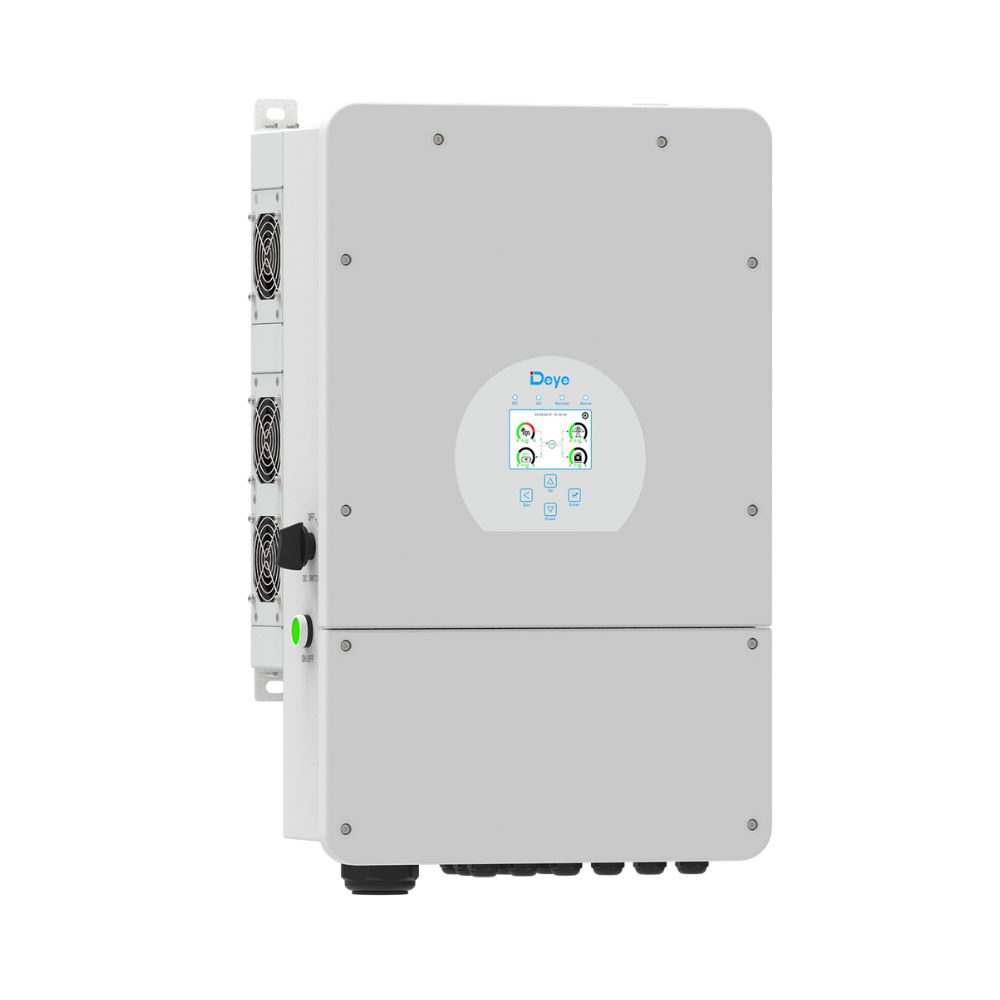

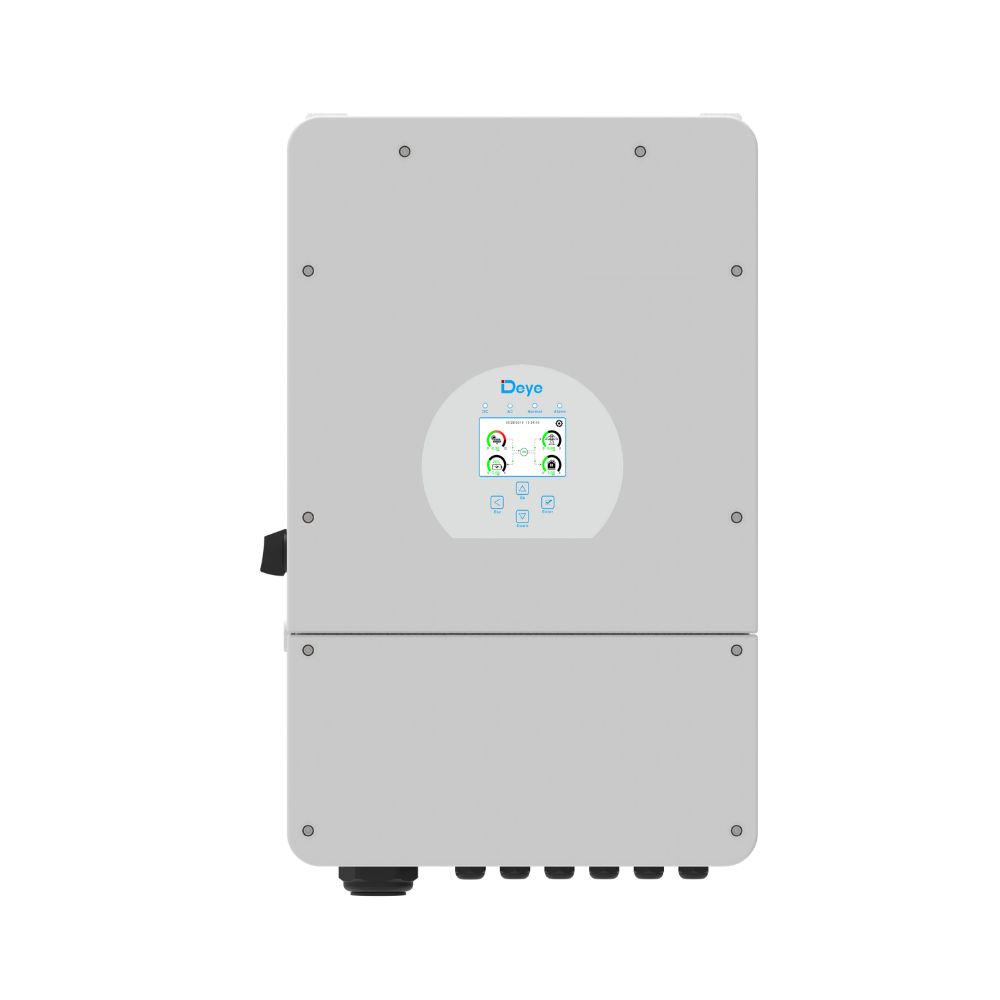

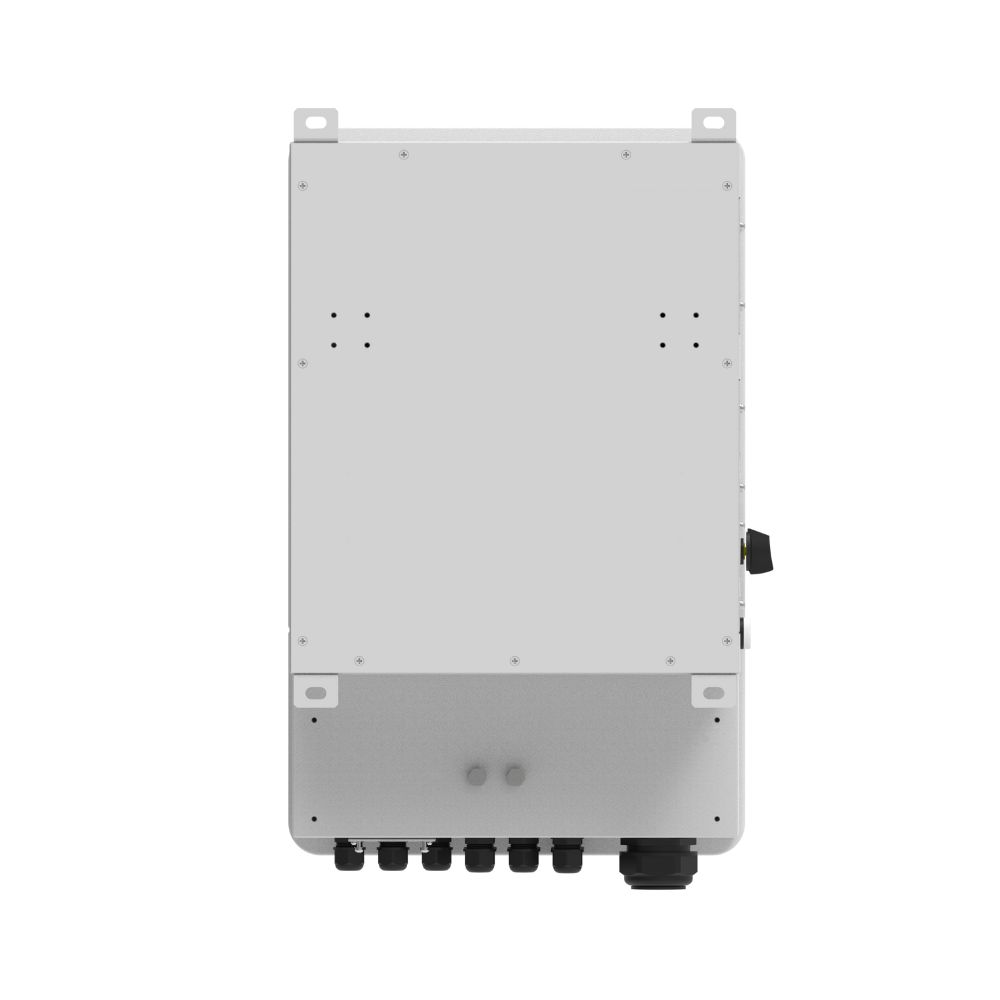

SUN-5/6/7.6/8K-SG02LP2-US-AM2 Split Phase Hybrid Inverter
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 250A 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model	SUN-5K-SG02 LP2-US-AM2	SUN-6K-SG02 LP2-US-AM2	SUN-7.6K-SG02 LP2-US-AM2	SUN-8K-SG02 LP2-US-AM2	SUN-10K-SG02 LP2-US-AM3	SUN-12K-SG02 LP2-US-AM3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	120	135	190	190	220	250
Max. Discharging Current (A)	120	135	190	190	220	250
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Input Power (W)	7500	9000	11400	12000	15000	18000
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	20+20		26+26		26+26+26
Max. Input Short-Circuit Current (A)	44+44		44+44		44+44+44
No. of MPP Trackers/	2/2+2				3/2+2+2
No. of Strings MPP Tracker	2/2+2				3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	5000	6000	7600	8000	10000	12000
Max. AC Input/Output Apparent Power (VA)	5000	6000	7600	8000	10000	12000
Rated AC Input/Output Current (A)	20.9	25	31.7	33.4	41.7	50
Max. AC Input/Output Current (A)	20.9	25	31.7	33.4	41.7	50
Max. Continuous AC Passthrough (grid to load) (A)	35	40	50		60
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Rated Input/Output Voltage/Range (V)	120/240; 208 0.88Un＜U＜1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	60/55-65
Grid Connection Form	2L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
