SUN-5_6_8_10_12_15_20_25K-SG01HP3-EU-AM2-01

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2

Battery: Supports lithium-ion, 160-700V range, max 50A charge/discharge, adaptive BMS charging
PV Input: Up to 50,000W access power, 150-850V MPPT range, multiple MPPT trackers for efficiency
AC Performance: Rated power up to 25,000W, flexible grid frequency, <3% THDi, supports grid-tied/off-grid with peak power
System Features: 3L+N+PE grid connection, AC passthrough, efficient energy management

SKU: SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2Category: Hybrid Inverter, Inverter

Description

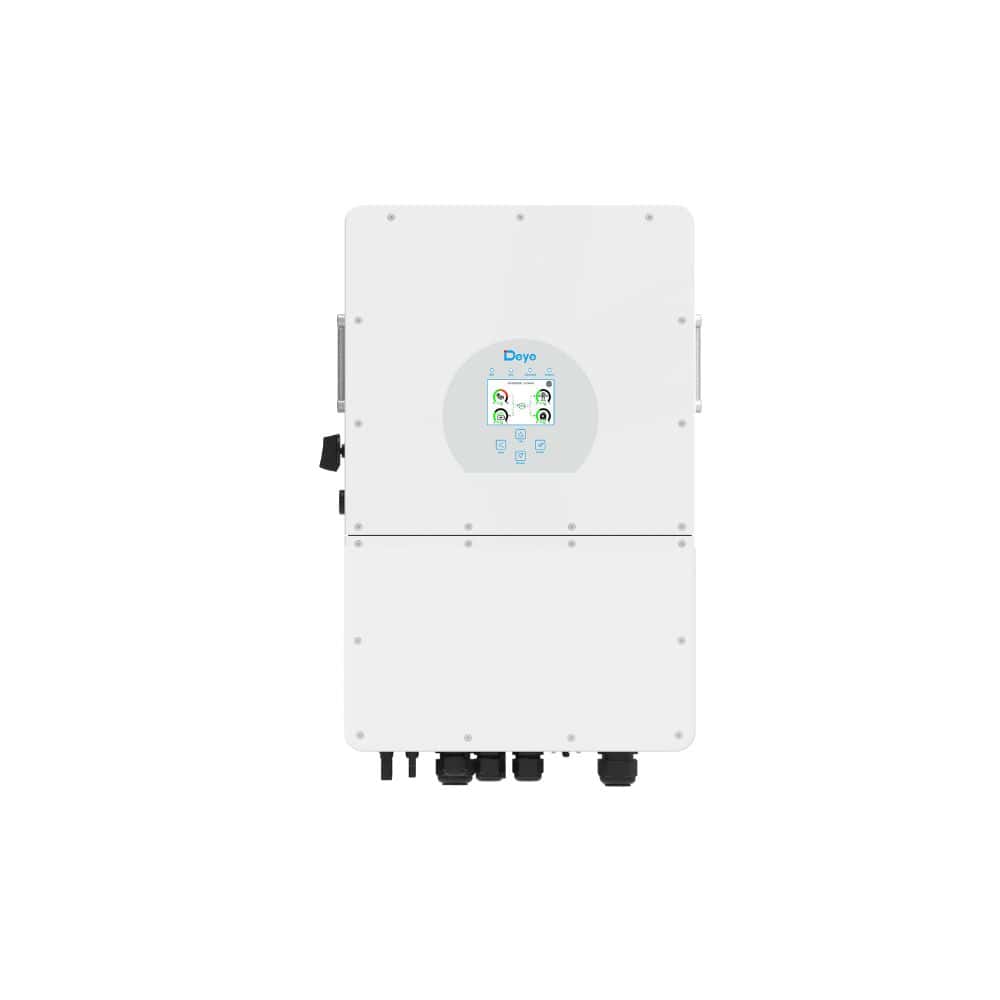

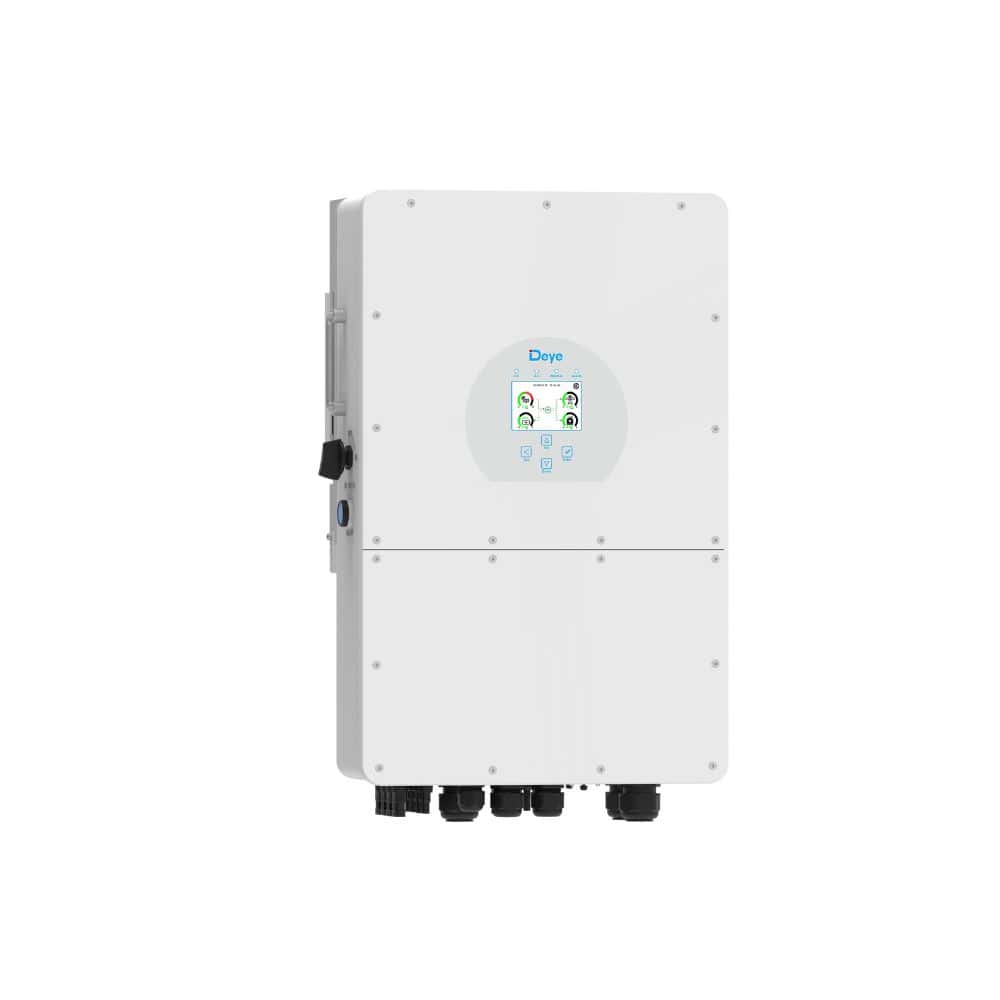

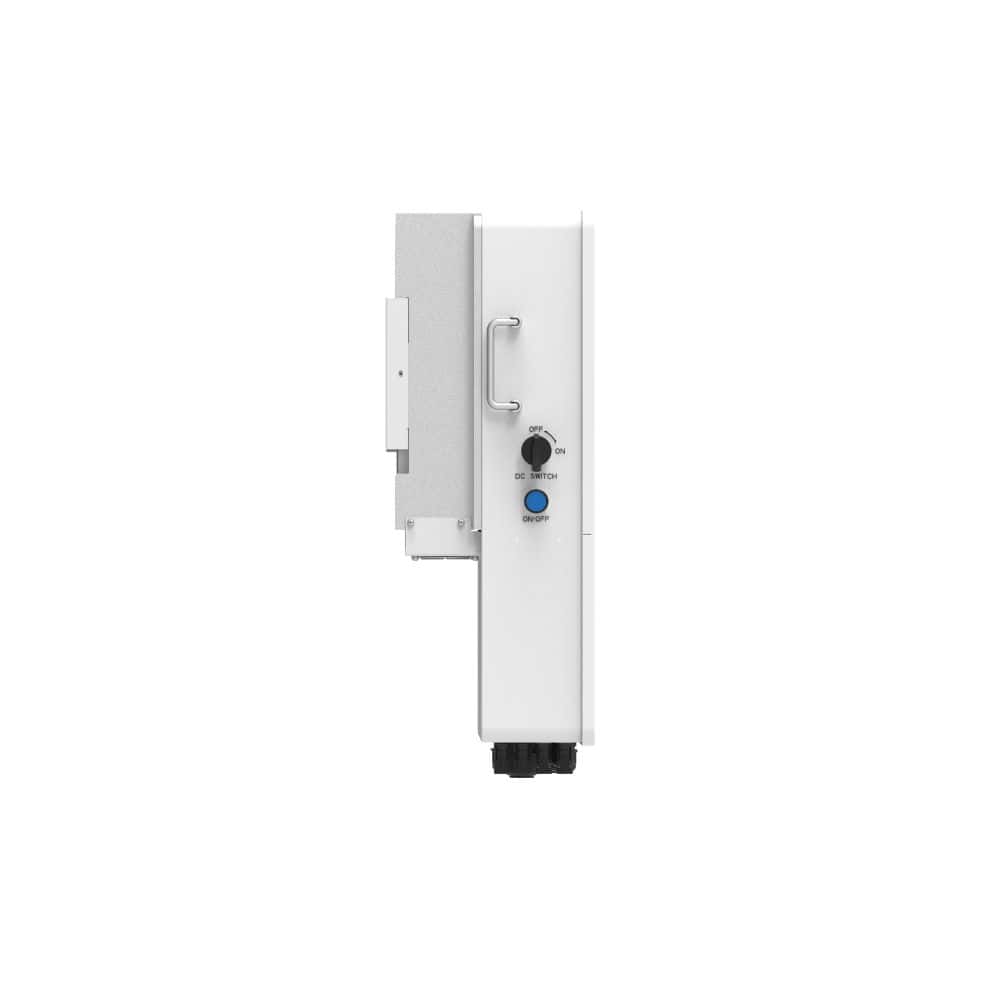

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 Three Phase Hybrid Inverter
100% unbalanced output AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 50A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model	SUN-5K-SG01 HP3-EU.AM2	SUN-6K-SG01 HP3-EU.AM2	SUN-8K-SG01 HP3-EU.AM2	SUN-10K-SG01 HP3-EU.AM2	SUN-12K-SG01 HP3-EU.AM2	SUN-15K-SG01 HP3-EU.AM2	SUN-20K-SG01 HP3-EU.AM2	SUN-25K-SG01 HP3-EU.AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160-700
Max Charging Current (A)	30	30	37					50
Max Discharging Current (A)	30	30	37					50
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max PV Access Power (W)	10000	12000	16000	20000	24000	30000	40000	50000
Max PV Input Power (W)	8000	9600	12800	16000	19200	24000	32000	40000
Max PV Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Voltage Range (V)	150-850
Rated PV Input Voltage (V)	600							700
Max Operating PV Input Current (A)	20+20				26+20		26+26
Max Input Short-Circuit Current (A)	30+30				39+30		39+39
No. of MPPT Trackers/ No. of Strings MPPT Tracker	2/1+1				2/2+1		2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	5000	6000	8000	10000	12000	15000	20000	25000
Max AC Input/Output Apparent Power (VA)	5500	6600	8800	11000	13200	16500	22000	27500
Rated AC Input/Output Current (A)	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29	37.9/36.3
Max AC Input/Output Current (A)	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9	41.7/39.9
Max Continuous AC Passthrough (grid to load) (A)	40				80
Peak Power (off-grid) (W)	1.5 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V,230/400V, 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
