Description
Key Features
- High Efficiency: Achieves a maximum efficiency of up to 98.5% with dual MPPT trackers, ensuring maximum energy output from your solar panels.
- Low Start-up Voltage: Starts up at a low voltage of 250V, enabling optimal performance even in low-light conditions.
- Zero Export Application: Supports zero export functionality, allowing you to manage your energy consumption and maximize self-consumption.
- VSG Application: Enables voltage support capabilities, contributing to grid stability.
- String Intelligent Monitoring: Offers optional string intelligent monitoring for enhanced system diagnostics.
- Wide Output Voltage Range: Provides flexible output voltage for compatibility with various grid configurations.
- Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.
- Comprehensive Protection: Includes DC polarity reverse connection protection, AC output overcurrent/overvoltage protection, short-circuit protection, thermal protection, and surge protection.
- Monitoring & Communication: Supports various communication interfaces, including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232, and monitoring modes.
- Three-Phase System: Designed for three-phase grid connections, supporting 127V/220V and 133V/230V with 50/60Hz frequency.
- Natural Cooling: Features a natural cooling system for optimal heat dissipation and reliable operation.
Technical Specifications
| Parameter | SUN-6K-G06-LV | SUN-8K-G06-LV |
|---|---|---|
| Max. PV Input Power (kW) | 7.8 | 10.4 |
| Max. PV Input Voltage (V) | 800 | 800 |
| Start-up Voltage (V) | 250 | 250 |
| MPPT Voltage Range (V) | 200-700 | 200-700 |
| Rated PV Input Voltage (V) | 500 | 500 |
| Max. Operating PV Input Current (A) | 13+13 | 13+26 |
| Max. Input Short Circuit Current (A) | 19.5+19.5 | 19.5+39 |
| Rated AC Output Active Power (kW) | 6 | 8 |
| Rated AC Output Current (A) | 15.8/15.1 | 21/20.1 |
| Max. AC Output Current (A) | 15.8/15.1 | 21/20.1 |
| Rated Output Voltage/Range (V) | 127V/220V, 133V/230V | 127V/220V, 133V/230V |
General Data
- Inverter Topology: Non-Isolated
- Cabinet Size: 283×463×178 mm (excluding connectors and brackets)
- Weight: 11 kg
- Cooling Type: Natural Cooling
- Warranty: 5 Years
Standards & Certifications
- Grid Regulation: NBR 16149, NBR 16150, EN 50549, RD 140
- EMC/Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Ingress Protection Rating: IP 65

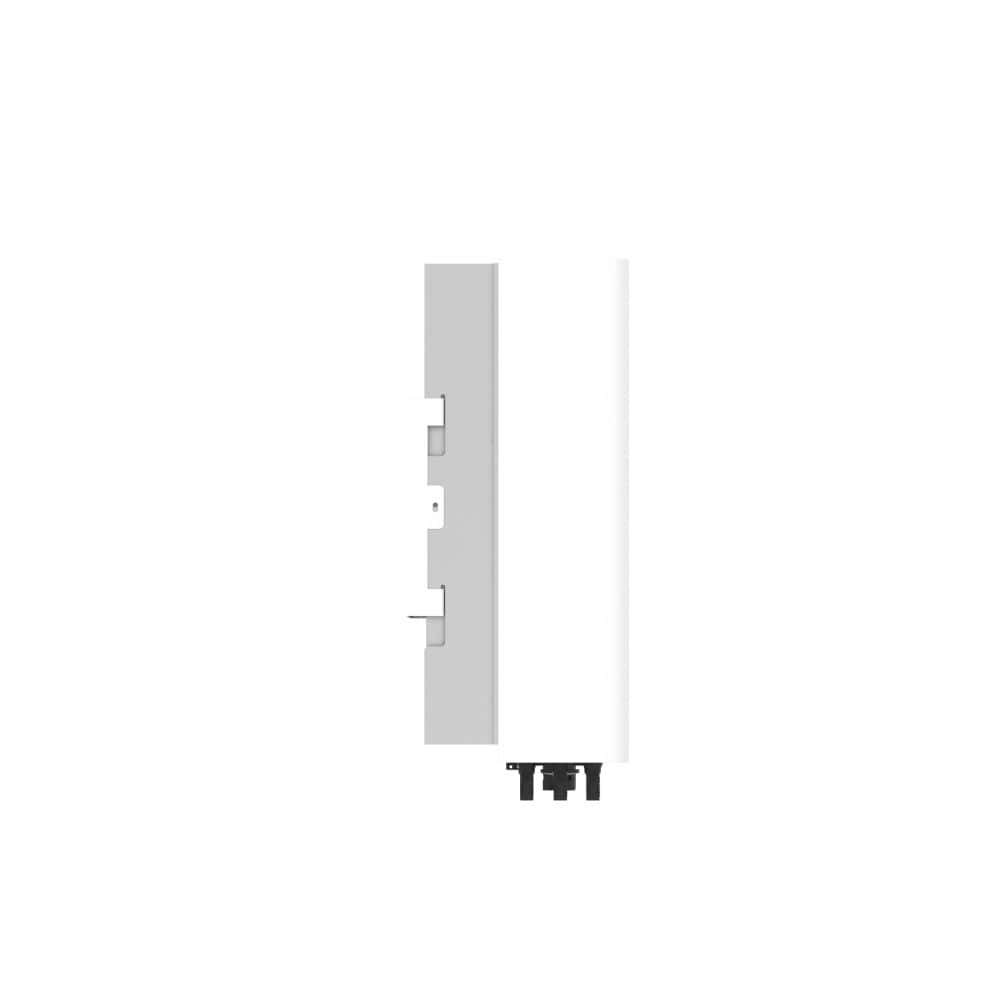

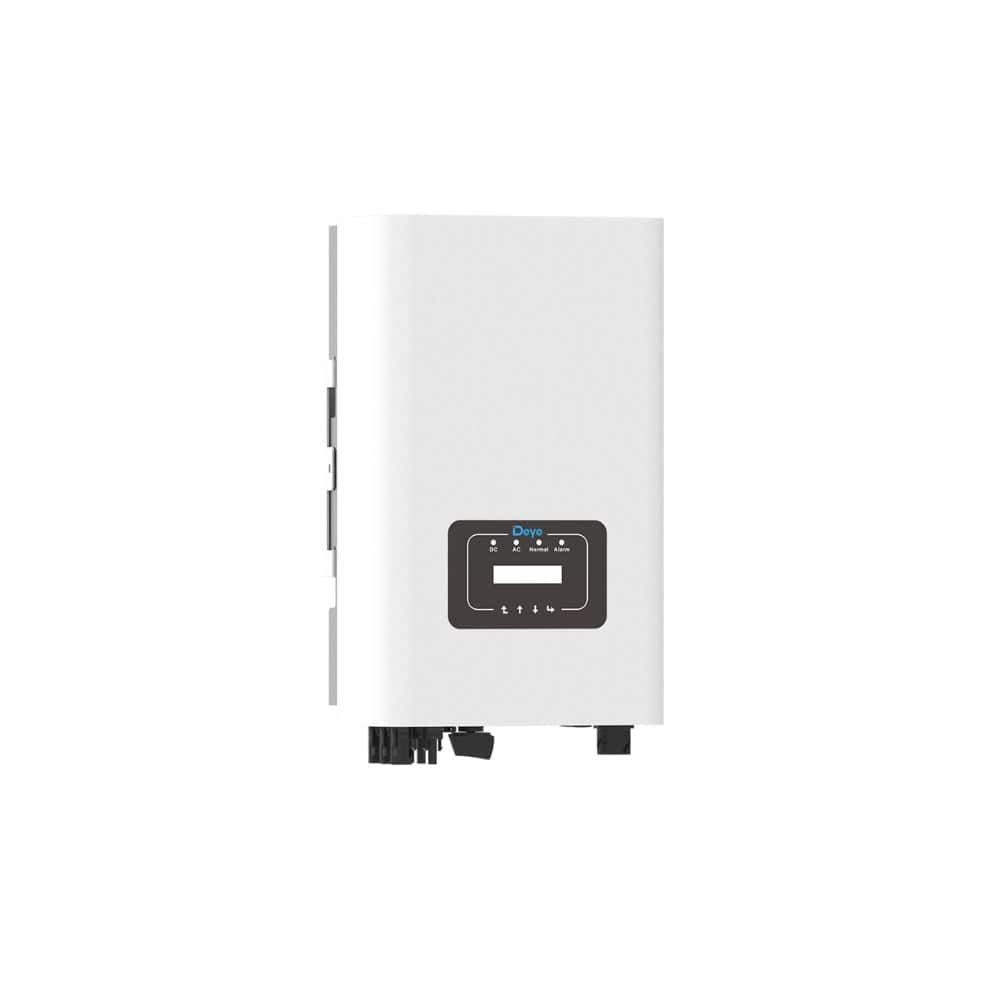

The Deye SUN-(6-8)K-G06-LV is a powerful and feature-rich three-phase inverter ideal for larger residential and commercial solar PV systems. This inverter provides high efficiency, advanced functionality, and robust protection for a secure and optimized energy generation solution in low-voltage grid environments.
