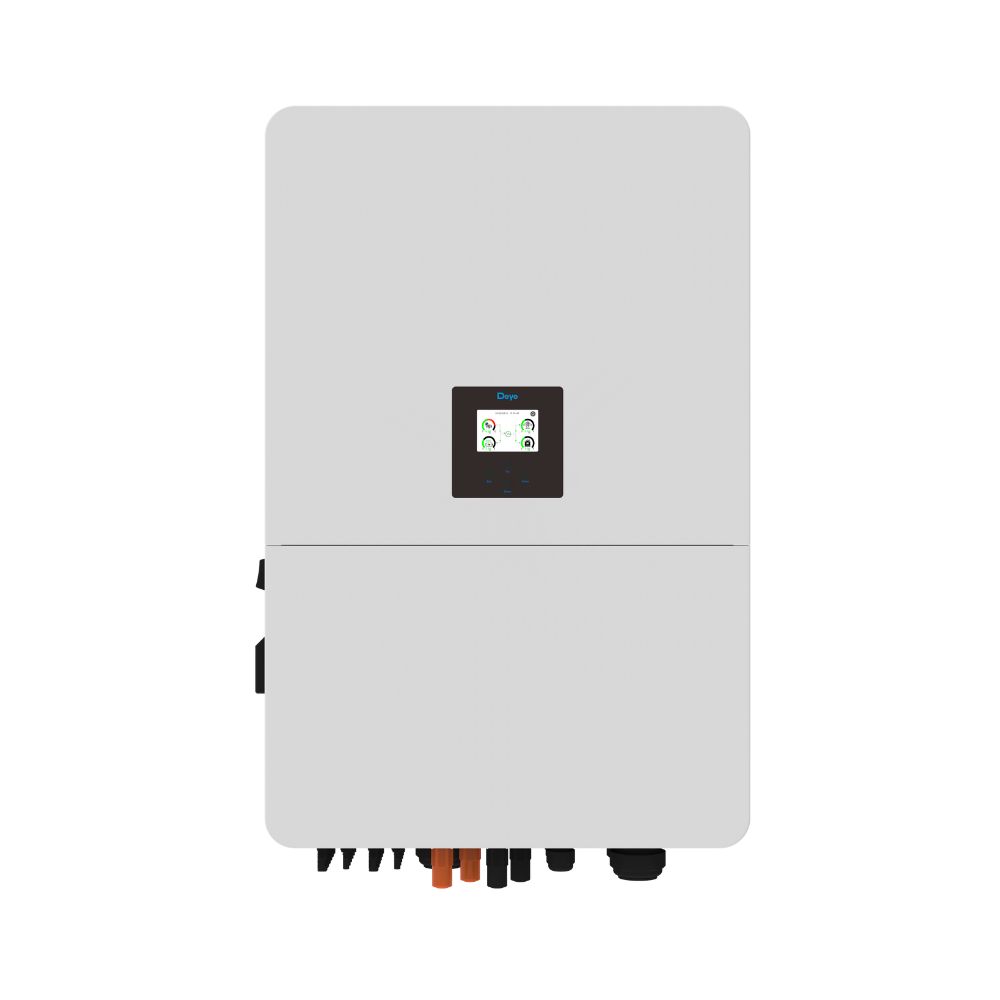

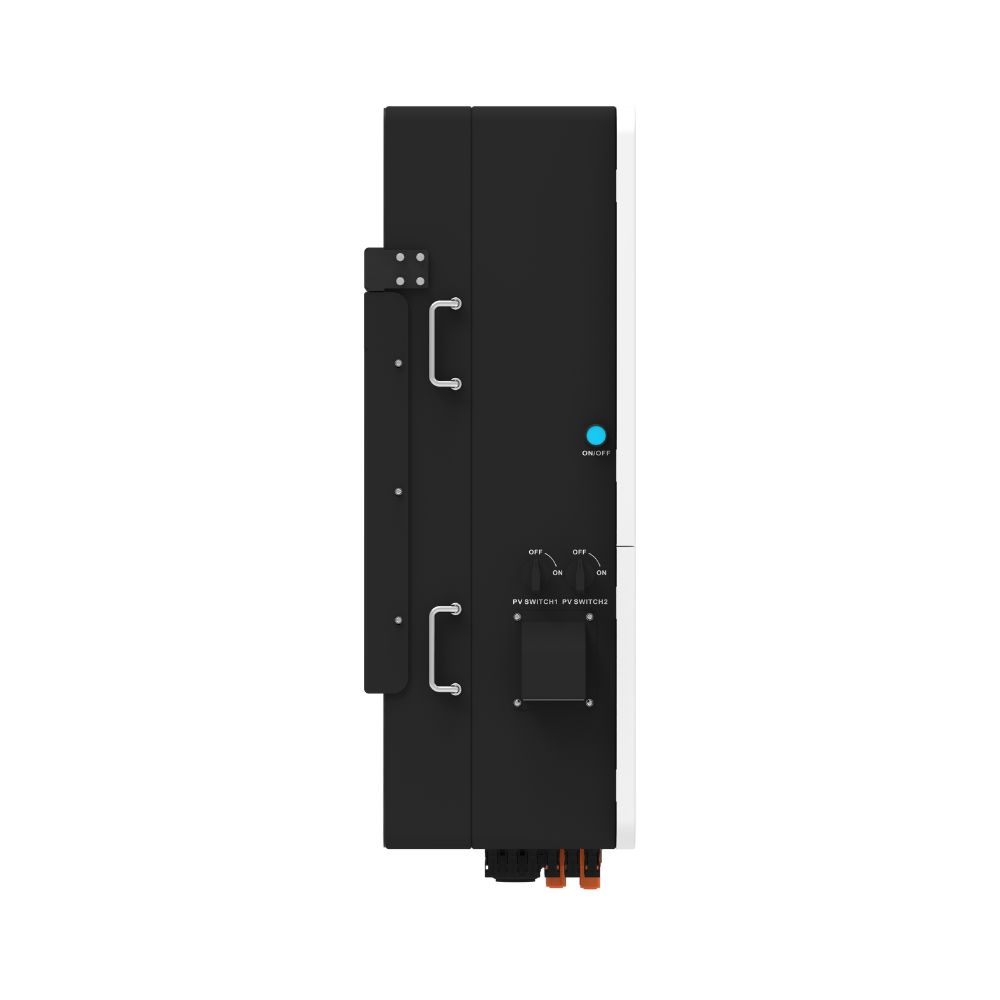

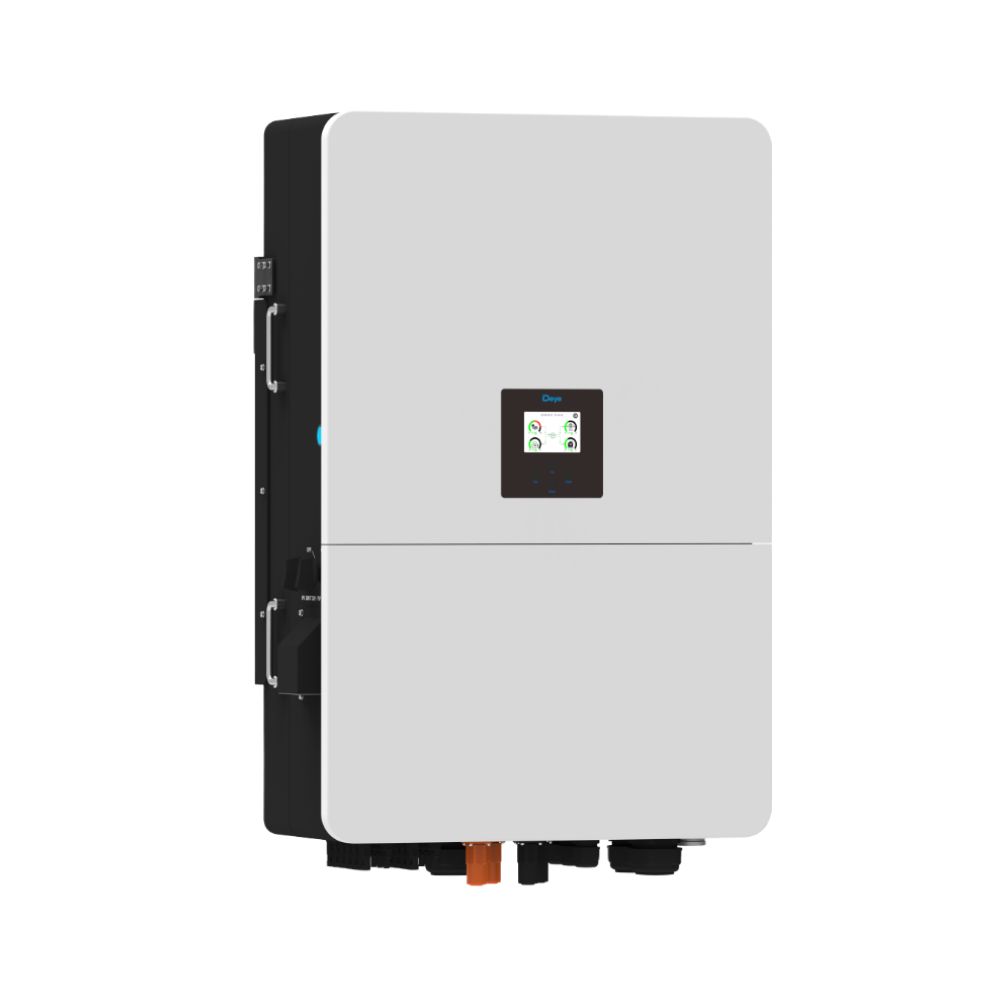

SUN-60/70/75/80K-SG02HP3-EU-EM6 Three Phase Hybrid Inverter

Battery Input: Supports lead-acid or lithium-ion batteries (40-60V), with max charging/discharging currents up to 350A, self-adaptive Li-ion charging via BMS, and 2 battery inputs
PV String Input: Max PV access power up to 40,000W, MPPT voltage range 160-650V, max operating PV input current 36+36A, and 2/2+2 MPP trackers
AC Input/Output: Rated active power up to 20,000W, apparent power up to 22,000VA, supports 220/380V (or 230/400V) grids, 50/60Hz frequency, 3L+N+PE connection, THDi <3%, and peak off-grid power (2x rated power, 10s)

SKU: SUN-60/70/75/80K-SG02HP3-EU-EM6Category: Hybrid Inverter, Inverter

Description

SUN-60/70/75/80K-SG02HP3-EU-EM6 Three Phase Hybrid Inverter
100% unbalanced output, max. output up to 50% rated power for each phase AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 350A 48V low voltage battery, transformer isolation design 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model	SUN-14K-SG05LP3-EU-SM2	SUN-15K-SG05LP3-EU-SM2	SUN-16K-SG05LP3-EU-SM2	SUN-18K-SG05LP3-EU-SM2	SUN-20K-SG05LP3-EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	260	280	300	330	350
Max. Discharging Current (A)	260	280	300	330	350
Charging Strategy for Li-ion Battery	Self-adaptation to BMS
Number of Battery Input	2
PV String Input Data
Max. PV Access Power (W)	28000	30000	32000	36000	40000
Max. PV Input Power (W)	22400	24000	25600	28800	32000
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	160-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	36+36
Max. Input Short-Circuit Current (A)	54+54
No. of MPP Trackers/ No. of Strings MPP Tracker	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	14000	15000	16000	18000	20000
Max. AC Input/Output Apparent Power (VA)	15400	16500	17600	19800	22000
Rated AC Input/Output Current (A)	21.3/20.3	22.8/21.8	24.3/23.2	27.3/26.1	30.4/29
Max. AC Input/Output Current (A)	23.4/22.4	25/24	26.7/25.6	30/28.7	33.4/31.9
Max. Continuous AC Passthrough (grid to load) (A)	70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
