Description
Key Features
- High Efficiency: With a maximum efficiency of up to 98.8%, the SUN-60/70/75K-G01P3-EU-AM8-LV maximizes energy conversion, ensuring you get the most out of your solar investment.
- Versatile Applications: This inverter is compatible with a wide range of PV systems, including those with zero export, VSG (Voltage Source Generator), and string intelligent monitoring capabilities.
- Advanced Technology: The inverter incorporates advanced features like anti-PID (Potential Induced Degradation) protection, ensuring long-term performance and stability.
- Flexible Output: The SUN-60/70/75K-G01P3-EU-AM8-LV offers a wide output voltage range (127V/220V, 133V/230V) and frequency (50/60Hz), making it suitable for various grid configurations.
- Comprehensive Protection: The inverter includes a comprehensive set of protection features, including DC polarity reverse connection protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection, and more.
- Advanced Monitoring: With optional communication interfaces like GPRS/WIFI/Bluetooth/4G/LAN and RS485/RS232, the inverter provides real-time system monitoring and control.
Technical Specifications
- Maximum PV Input Power: 90kW, 105kW, 112.5kW (depending on model)
- Maximum PV Input Voltage: 800V
- Start-up Voltage: 250V
- MPPT Voltage Range: 200-700V
- Number of MPP Trackers: 8
- Number of Strings per MPP Tracker: 4+4+4+4+4+4+4+4
- Rated AC Output Active Power: 60kW, 70kW, 75kW (depending on model)
- Max. AC Output Apparent Power: 60kVA, 70kVA, 75kVA (depending on model)
- Rated AC Output Voltage/Range: 127V/220V, 133V/230V 0.85UN-1.1UN
- Rated AC Output Current: 150.4A, 175.5A, 188A (depending on model)
- Max. AC Output Current: 157.5A, 183.8A, 196.9A (depending on model)
- Efficiency: Max. 98.7%
- MPPT Efficiency: >99%
- Operating Temperature Range: -25°C to +60°C (derating above 45°C)
- Ingress Protection (IP) Rating: IP65
- Cabinet Size: 1006×516×325.5mm (excluding connectors and brackets)
- Weight: 103kg
- Warranty: 5 years
Benefits
- Increased Energy Production: The high efficiency and advanced features optimize energy conversion, leading to increased energy production and financial savings.
- Enhanced Reliability: Comprehensive protection features and robust construction ensure long-term performance and reliability, minimizing downtime.
- Simplified Monitoring: Optional communication interfaces enable easy system monitoring and control, providing valuable insights into system performance.
- Environmentally Friendly: The Deye SUN-60/70/75K-G01P3-EU-AM8-LV helps reduce carbon emissions by harnessing renewable solar energy.

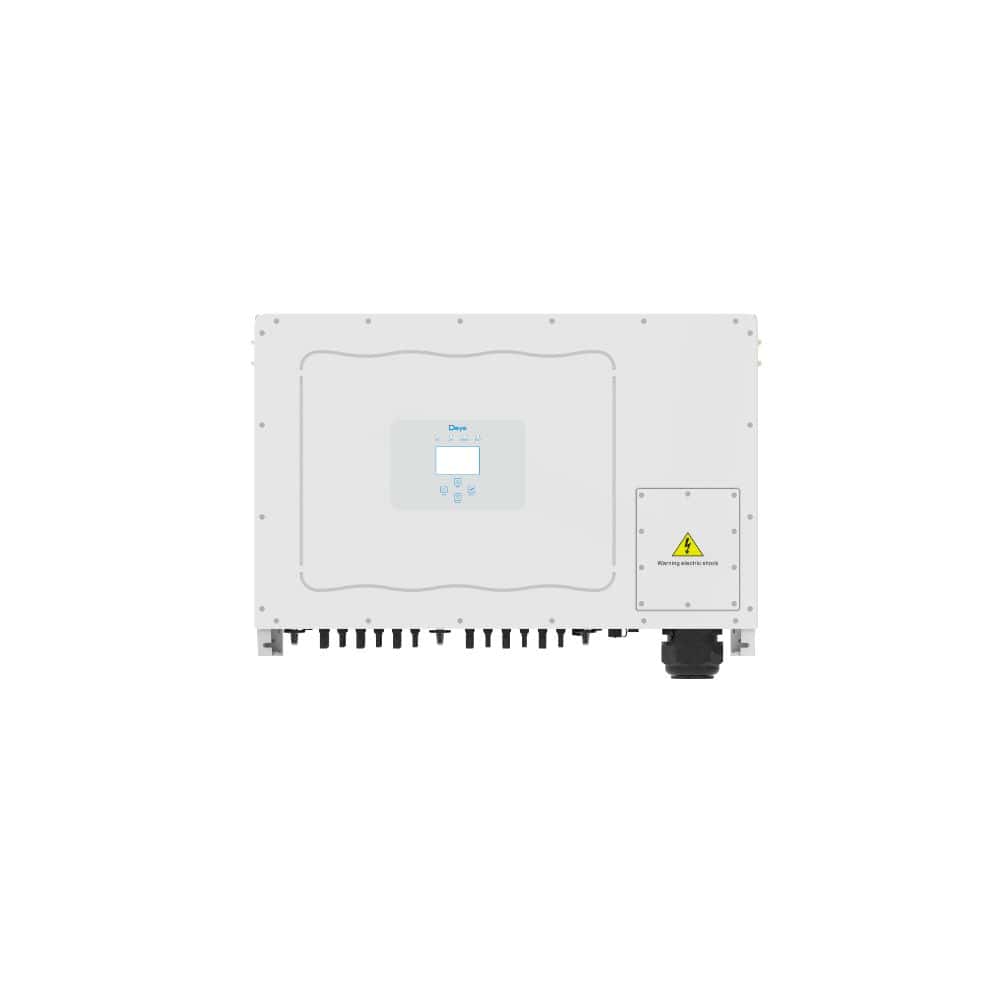

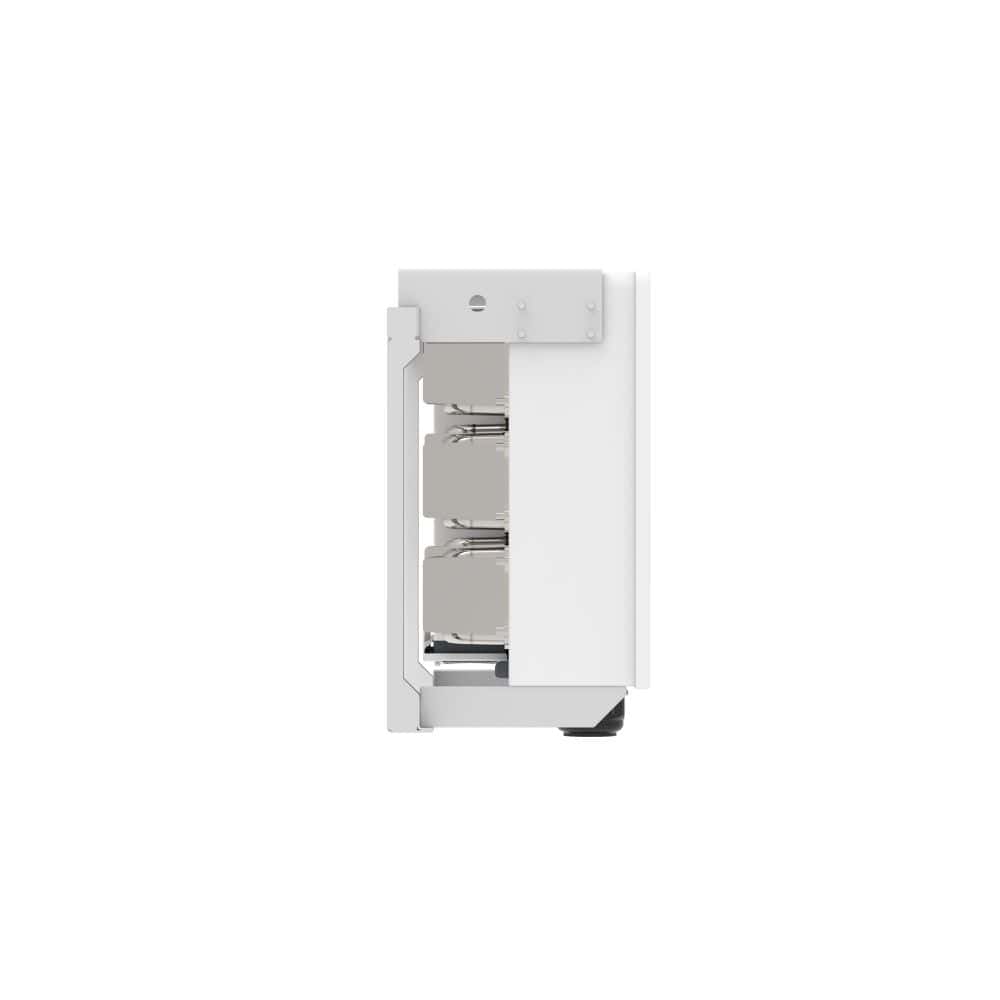

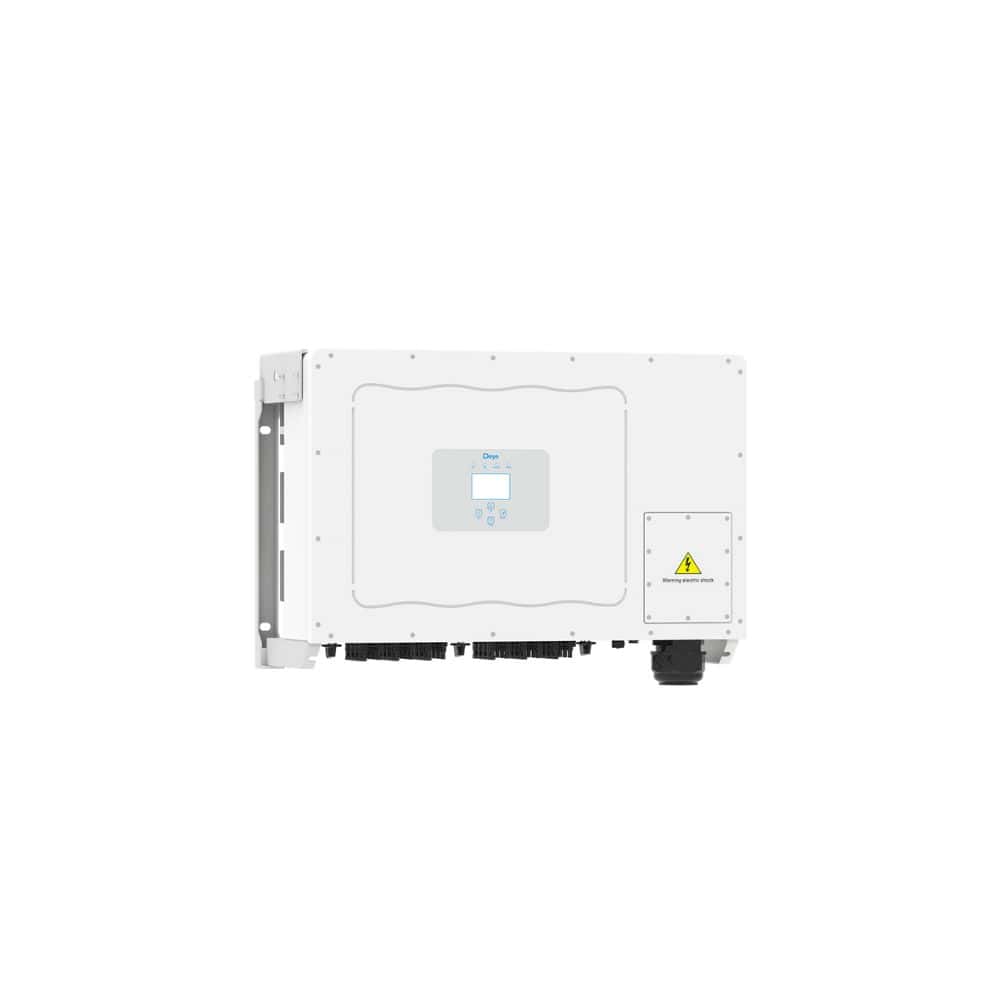

The Deye SUN-60/70/75K-G01P3-EU-AM8-LV is a powerful and efficient three-phase string inverter that combines advanced technology, versatility, and comprehensive protection features for reliable and optimized solar energy production. This inverter is an ideal choice for residential and commercial PV systems seeking maximum performance, efficiency, and long-term value.
