Description
Key Features
- High Efficiency: Achieves a maximum efficiency of up to 97.7% with dual MPPT trackers, ensuring maximum energy output from your solar panels.
- Low Start-up Voltage: Starts up at a low voltage of 80V, enabling optimal performance even in low-light conditions.
- Zero Export Application: Supports zero export functionality, allowing you to manage your energy consumption and maximize self-consumption.
- VSG Application: Enables voltage support capabilities, contributing to grid stability.
- String Intelligent Monitoring: Offers optional string intelligent monitoring for enhanced system diagnostics.
- Wide Output Voltage Range: Provides flexible output voltage for compatibility with various grid configurations.
- Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.
- Comprehensive Protection: Includes DC polarity reverse connection protection, AC output overcurrent/overvoltage protection, short-circuit protection, thermal protection, and surge protection.
- Monitoring & Communication: Supports various communication interfaces, including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232, and monitoring modes.
Technical Specifications
| Parameter | SUN-7K-G02P1-EU-AM2 | SUN-7.5K-G02P1-EU-AM2 | SUN-8K-G02P1-EU-AM2 |
|---|---|---|---|
| Max. PV Input Power (kW) | 9.1 | 9.8 | 10.4 |
| Max. PV Input Voltage (V) | 550 | 550 | 550 |
| Start-up Voltage (V) | 80 | 80 | 80 |
| MPPT Voltage Range (V) | 70-500 | 70-500 | 70-500 |
| Rated PV Input Voltage (V) | 360 | 360 | 360 |
| Max. Operating PV Input Current (A) | 18+26 | 18+26 | 18+26 |
| Max. Input Short Circuit Current (A) | 27+39 | 27+39 | 27+39 |
| Rated AC Output Active Power (kW) | 7 | 7.5 | 8 |
| Rated AC Output Current (A) | 31.9/30.5 | 34.1/32.7 | 36.4/34.8 |
| Max. AC Output Current (A) | 35/33.5 | 37.5/35.9 | 40/38.3 |
| Rated Output Voltage/Range (V) | 220/230 | 220/230 | 220/230 |
General Data
- Inverter Topology: Non-Isolated
- Cabinet Size: 330×310×208.5 mm (excluding connectors and brackets)
- Weight: 12.1 kg
- Cooling Type: Natural Cooling
- Warranty: 5 Years
Standards & Certifications
- Grid Regulation: IEC 61727, IEC 62116, EN 50549, NRS 097, RD 140, UNE 217002, G99
- EMC/Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Ingress Protection Rating: IP 65

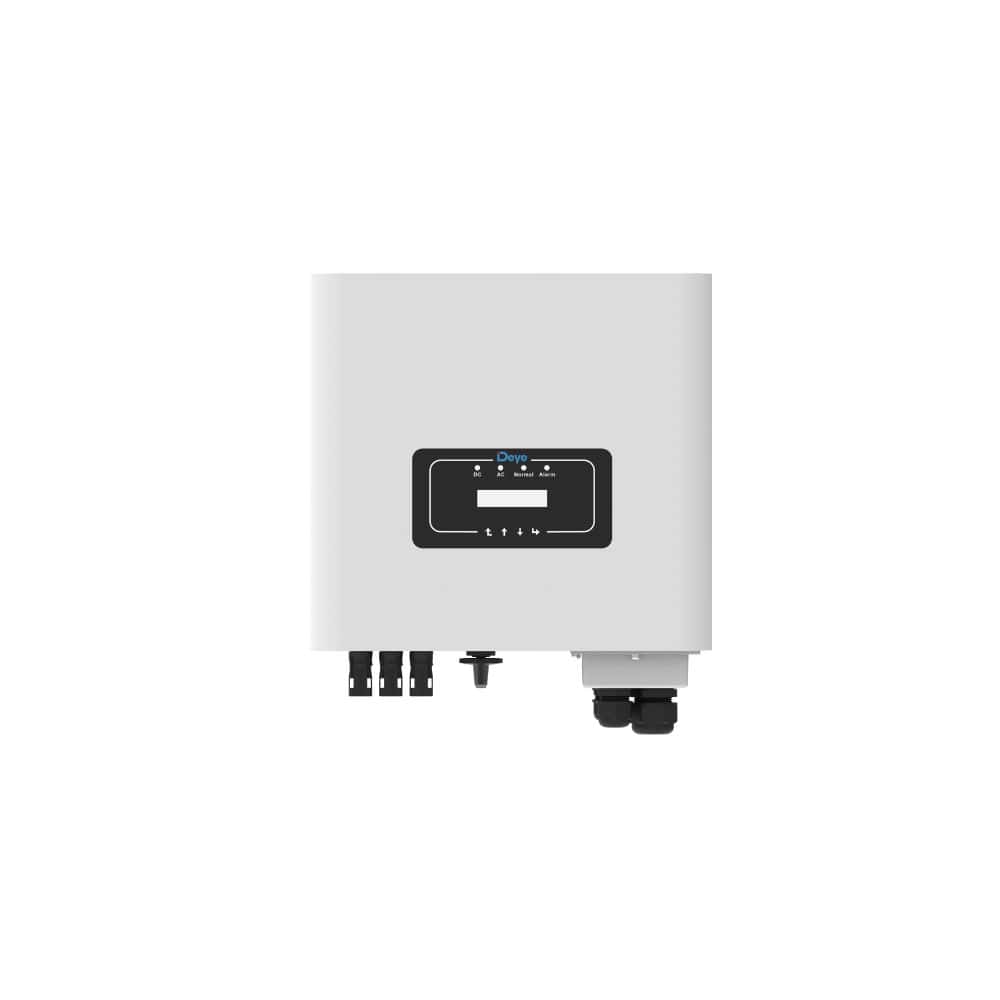

The Deye SUN-(7-8)K-G02P1-EU-AM2 is a powerful and feature-rich inverter suitable for larger solar PV systems requiring high power output. It offers high efficiency, advanced functionality, and robust protection for a secure and optimized energy generation solution.
