Description
| Model |
SUN-BK80-2.56KWH-EU-AM4-18L |
SUN-BK160-2.56KWH-EU-AM4-18L
|
SUN-BK200-2.56KWH-EU-AM4-18L
|
SUN-BK250-2.56KWH-EU-AM4-18L
|
| Rated AC Input/Output Active
Power |
800W |
1600W |
2000W |
2500W |
| Max. AC Input/Output Active
Power |
880W |
1760W |
2200W |
2750W |
| Max. off grid power |
2500W |
| AC Input / Output Frequency and
Voltage |
50Hz (45Hz ~ 55Hz),
60Hz (55Hz ~ 65Hz), L + N + PE, 220 / 230 Vac |
| Grid Type |
Single phase |
| Rated AC Input/Output Current
|
3.7A / 3.5A |
7.3A / 7.0A |
9.1A / 8.7A |
11.4A / 10.9A |
| Max. AC Input/Output Current
|
4A / 3.9A |
8A / 7.7A |
10A / 9.6A |
12.5A / 12A |
| Peak Power ( off – grid ) |
2 time of rated
power, 10s |
| Power Factor Adjustment Range
|
0.8 leading to 0.8
lagging |
| Max. Continuous AC Passthrough
(grid to load) |
30A |
| DC Injection Current |
<0.5%In |
Key Features:

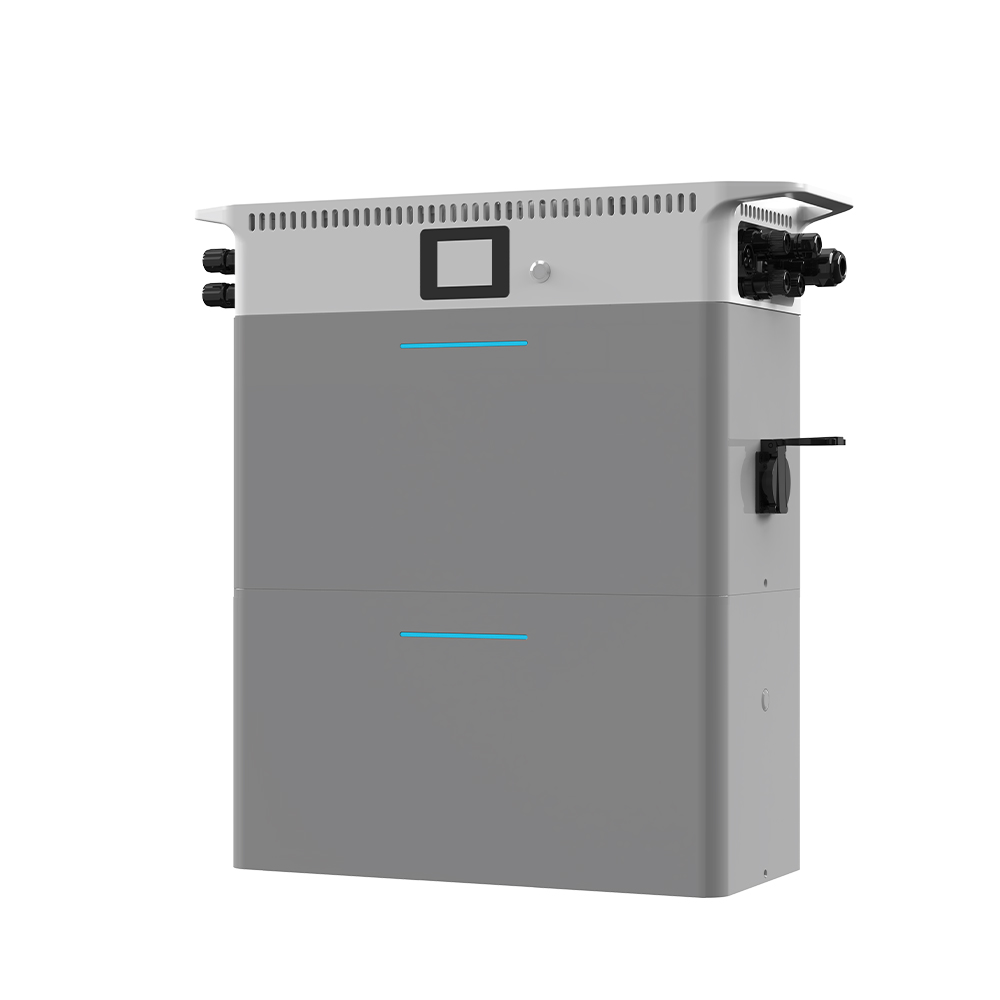

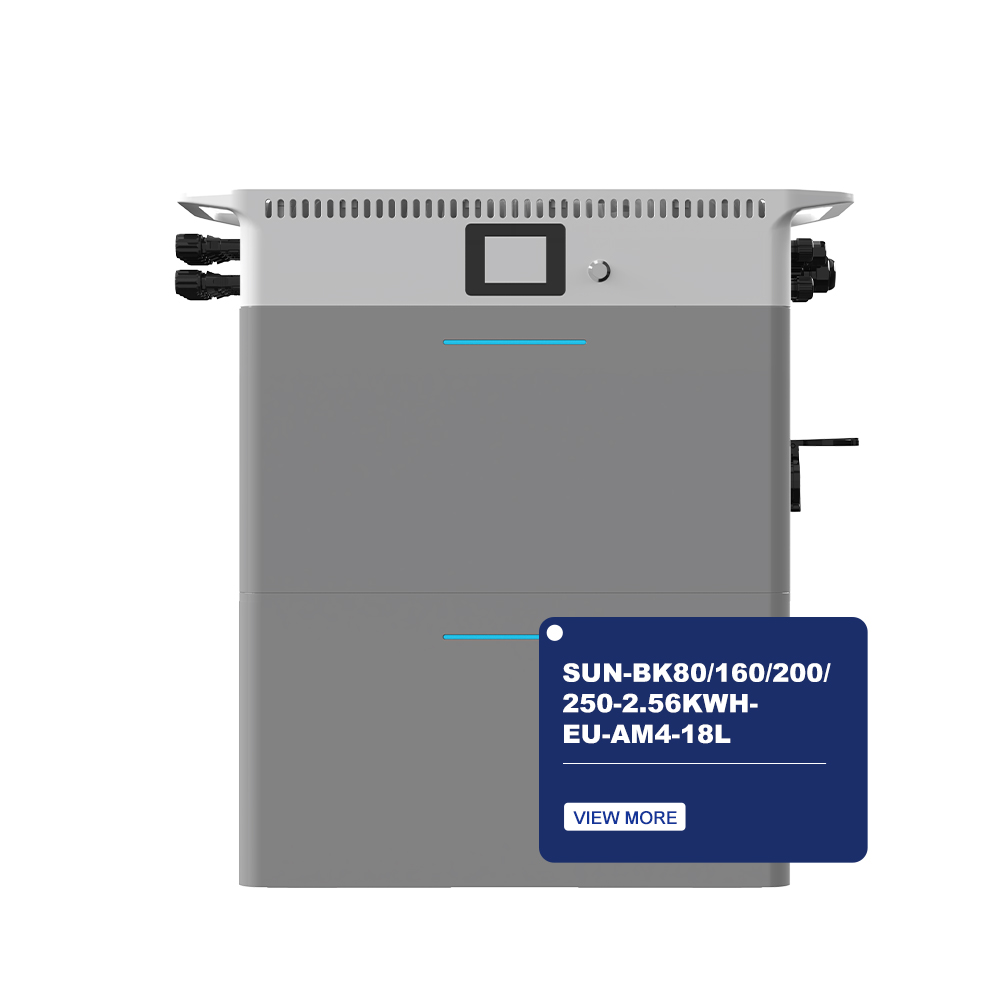

The SUN – BK80/160/200/250 Micro Hybrid Energy Storage System is a versatile solution
for all your energy needs. It’s suitable for on – grid, off – grid, and portable use,
adapting seamlessly to different scenarios.
- Multiple Working Modes:
- Hybrid Grid – Tied Mode: Enables self – consumption of
energy, helping you make the most of your power.
- Off – Grid Mode: Provides standalone and portable energy
storage, ensuring power supply even when disconnected from the main grid.
- AC – Coupled Mode: Allows upgrading existing PV balcony
systems to energy storage systems (ESS), enhancing your current setup.
- Impressive Performance:
- Boasts a high DC – AC conversion efficiency of up to 96.5%, maximizing
energy utilization.
- Features UPS – grade backup power with a grid – tie and off – grid
switchover time of less than 4ms, ensuring uninterrupted power.
- Supports up to 4 MPPTs for flexible connection of multiple PV panels.
- Offers 2500W rated power for AC charge/discharge, meeting various power
demands.
- Convenience & Durability:
- Comes with local Bluetooth communication, supporting offline control via the
Deye Cloud APP for easy management.
- Has an IP65 protection rating and a 10 – year standard warranty,
guaranteeing durability and reliability.
- Allows seamless scalability, so you can easily expand the system with
additional battery capacity as your needs grow.
