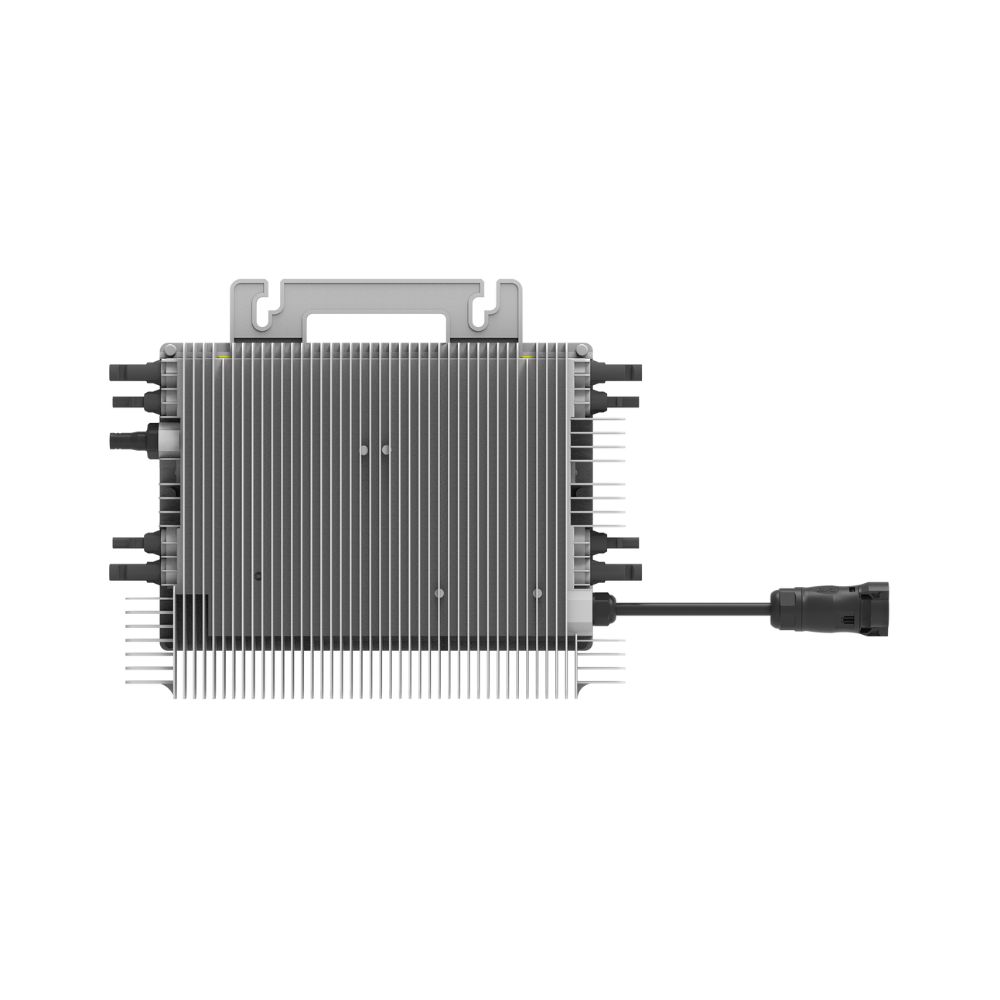

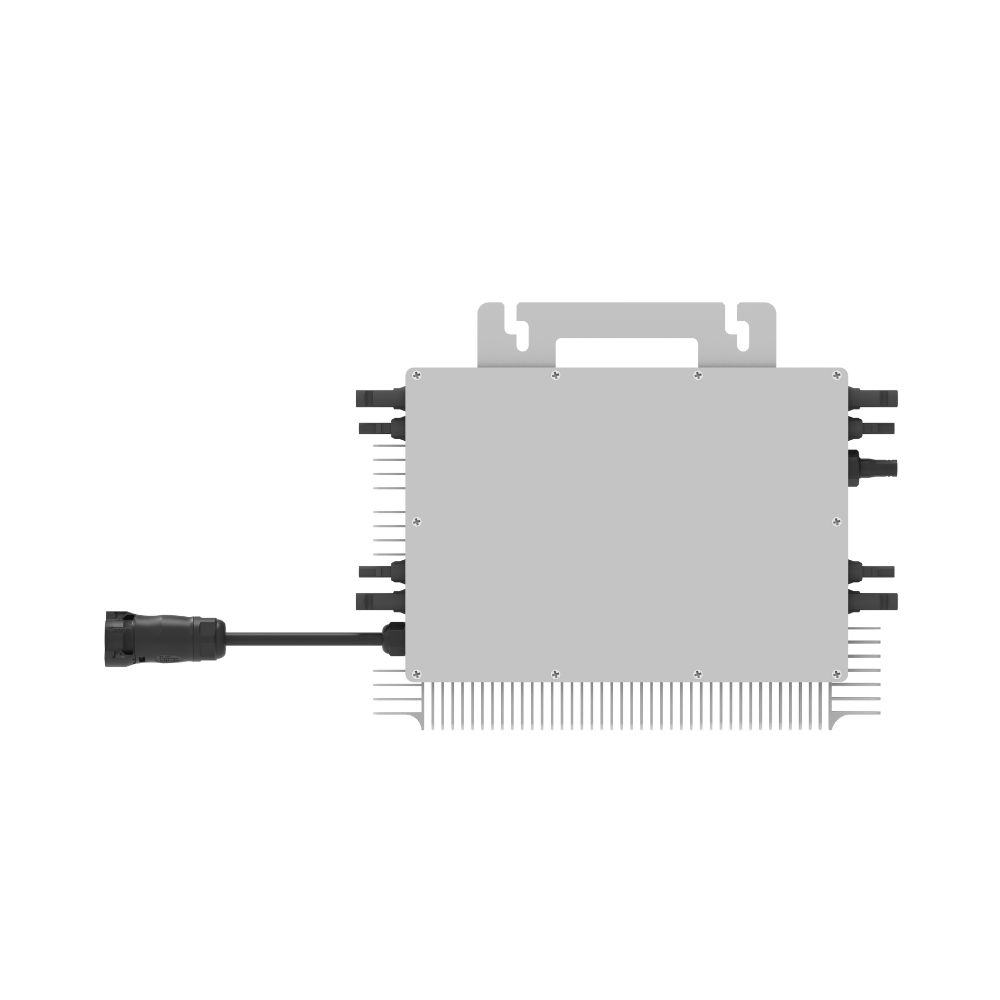

| Model |
SUN-M220G4 -EU-Q0 |
SUN-M225G4 -EU-Q0 |
| PV String
Input Data |
| Max. PV Input Power (W) |
210-770 (4 Pieces) |
210-790 (4 Pieces) |
| Max. PV Input Voltage (V) |
60 |
| Start-up Voltage (V) |
20 |
| MPPT Voltage Range (V) |
25-55 |
| Rated PV Input Voltage (V) |
42.5 |
| Max. Operating PV Input Current
(A) |
18+18+18+18 |
| Max. Input Short Circuit Current
(A) |
27+27+27+27 |
| No. of MPP Trackers/ No. of
Strings MPP Tracker |
4/1 |
| AC Output
Side |
| Rated AC Output Active Power (W)
|
2200 |
2250 |
| Max. AC Output Apparent Power (VA)
|
2200 |
2250 |
| Rated AC Output Current (A) |
10/9.6 |
10.3/9.8 |
| Max. AC Output Current (A) |
10/9.6 |
10.3/9.8 |
| Rated Output Voltage/Range (V)
|
220/230 0.85Un-1.1Un
|
| Grid Connection Form |
L/N/PE |
| Rated Output Grid
Frequency/Range(Hz) |
50/45-55, 60/55-65
|
| Max. Unit per Branch |
3 |
3 |
| Power Factor Adjustment Range |
0.9 leading-0.9
lagging |
| Total Current Harmonic Distortion
THDi |
<3% |
| DC Injection Current |
<0.5%In |
|
Efficiency
|
| Max. Efficiency |
96.5% |
| Euro Efficiency |
96.0% |
| MPPT Efficiency |
>99% |
| Equipment
Protection |
| DC Reverse Polarity Protection
|
Yes |
| AC Output Overcurrent Protection
|
Yes |
| AC Output Overvoltage Protection
|
Yes |
| AC Output Short Circuit Protection
|
Yes |
| Thermal Protection |
Yes |
| Insulation Impedance Detection
|
Yes |
| Anti-islanding Protection |
Yes |
| Surge Protection Level |
TYPE III(AC) |
|
Interface
|
| Communication Interface |
Wi-Fi |
| General
Data |
| Operating Temperature Range (°C)
|
-40 to +65°C, >45°C
Derating |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude (m) |
2000m |
| Noise (dB) |
≤25 |
| Ingress Protection(IP) Rating |
IP 67 |
| Inverter Topology |
Isolated |
| Over-Voltage Category |
OVC III(DC), OVC
III(AC) |
| Cabinet Size (W×H×D mm) |
358×255.5×36.5
(Excluding Connectors and Brackets) |
| Weight (kg) |
5.2 |
| Warranty |
10 Years |
| Type of Cooling |
Natural Cooling |
| Grid Regulation |
IEC 61727, IEC 62116,
CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105 |
| Safety EMC/Standard |
IEC/EN
61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
