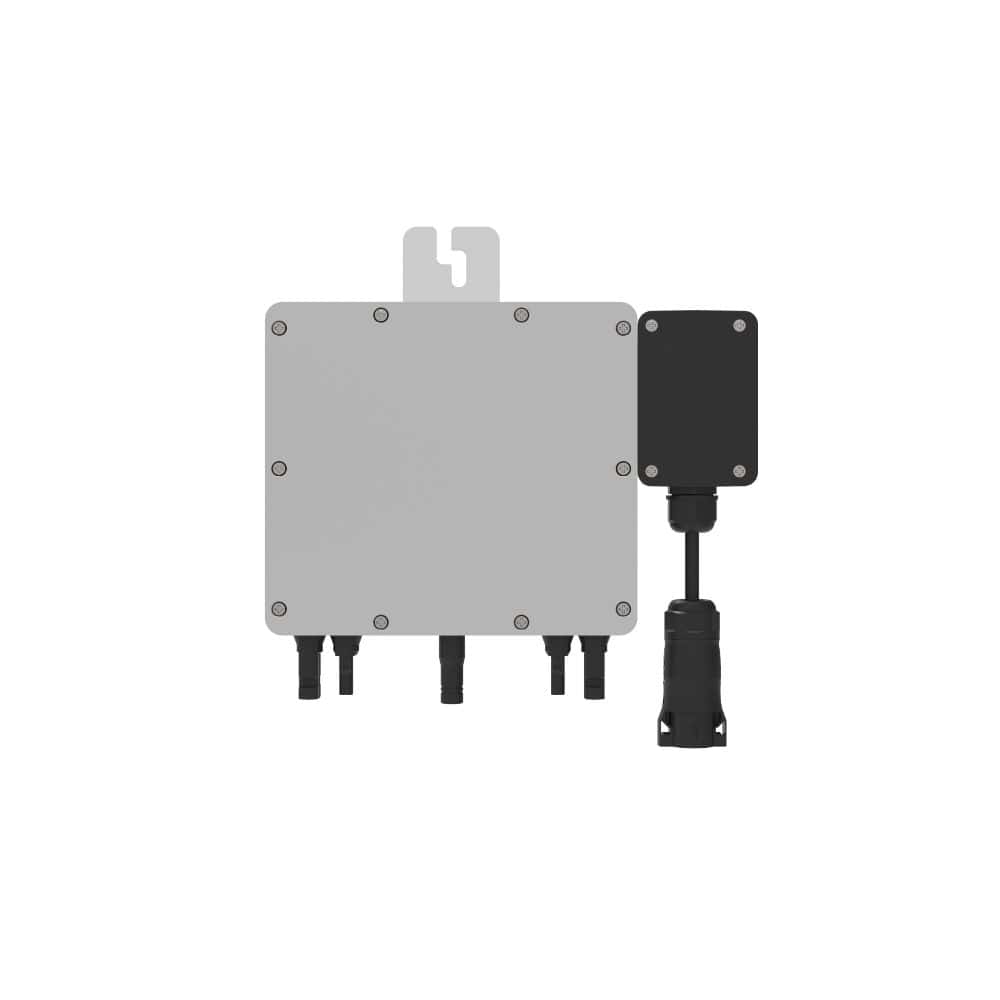

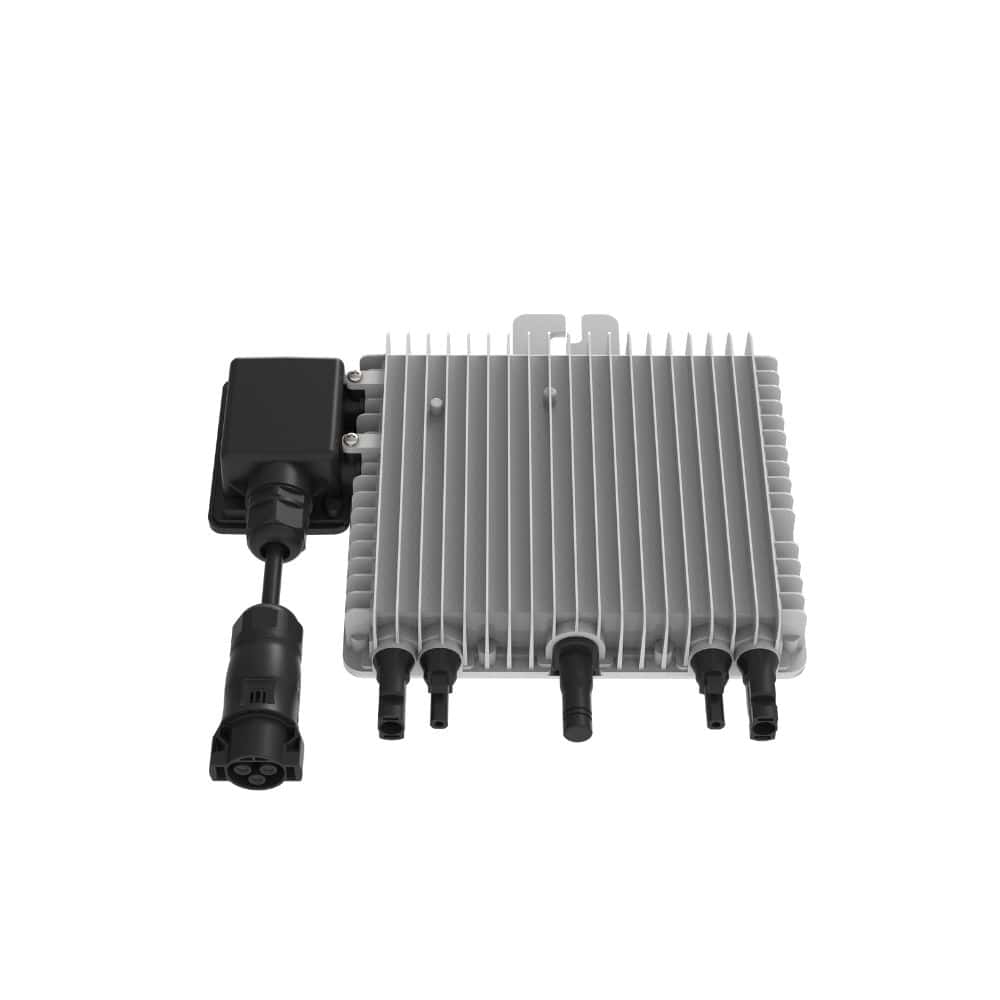

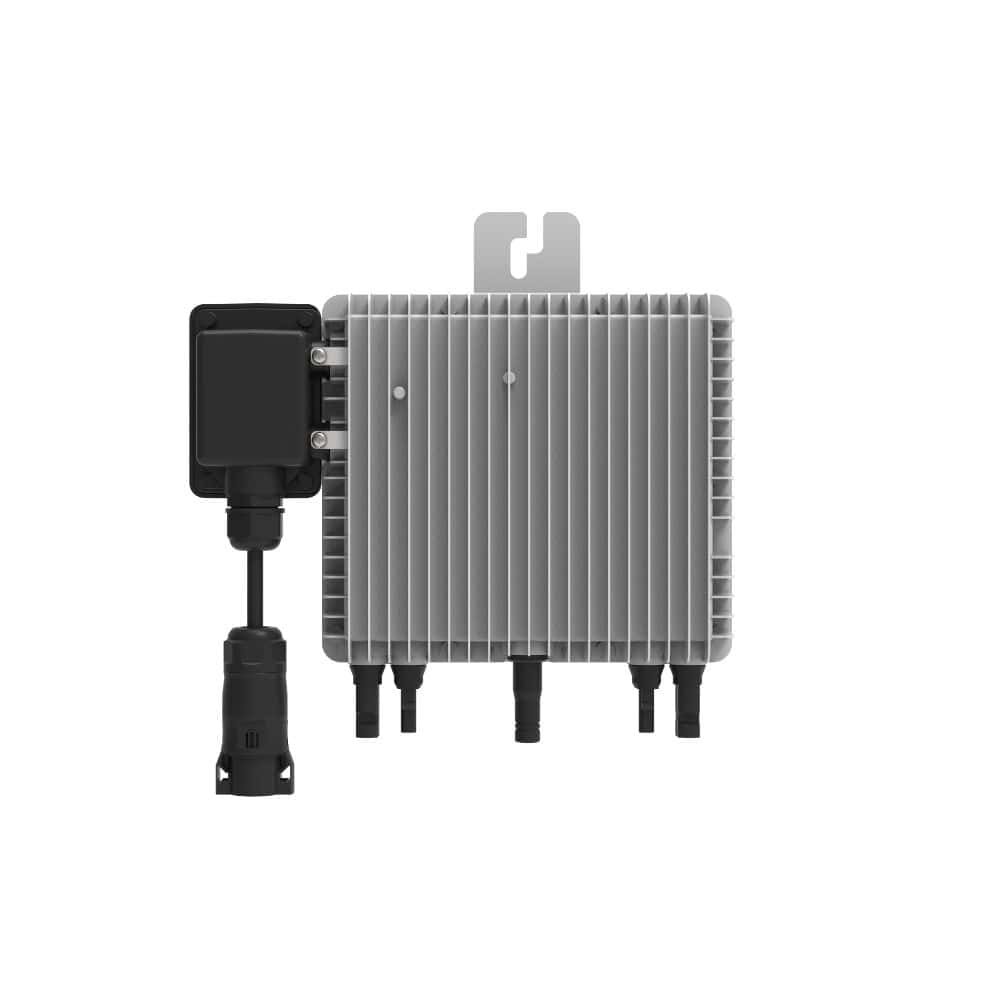

SUN-M60/80/100G4-EU-Q0 Microinverter

Model Variants: Available in 600W (SUN-M60G4-EU-Q0), 800W (SUN-M80G4-EU-Q0), and 1000W (SUN-M100G4-EU-Q0) models
PV Input: Dual MPP trackers, module-level monitoring, max PV voltage 60V, MPPT range 25-55V
AC Output: Rated voltages 220/230V, grid frequency 50/60Hz, power factor 0.9 leading to lagging, THDi <3%
Efficiency: Max efficiency 96.5%, Euro efficiency 96.0%, MPPT efficiency >99%
Protection: Includes DC reverse polarity, AC overcurrent/overvoltage/short circuit, thermal, insulation impedance, anti-islanding, and TYPE II AC surge protection
General: Operating temp -40℃~65℃, IP67 rating, natural cooling, 10-year warranty, Wi-Fi communication
Safety/Standards: Compliant with multiple grid and EMC standards (e.g., IEC 61727, IEC/EN 61000-6-1/2/3/4)

SKU: SUN-M60/80/100G4-EU-Q0Category: Inverter, Microinverter

Description

SUN-M60/80/100G4-EU-Q0 Microinverter
2 MPP trackers, module level monitoring IP67 protection degree Wi-Fi communication Rapid shutdown function Easy installation, suitable for quick-plug balcony PV system <100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety Complete NS protection with self-check function External relay advantage with low temperature, long life, easier maintenance 25 years design lifetime and 10 years warranty With integrate Wi-Fi

Model	SUN-M60G4-EU-Q0	SUN-M80G4-EU-Q0	SUN-M100G4-EU-Q0
PV String Input Data
Max. PV Input Power (W)	210-420(2 Pieces)	210-560(2 Pieces)	210-700(2 Pieces)
Max. PV Input Voltage (V)	60
Start-up Voltage (V)	20
MPPT Voltage Range (V)	25-55
Rated PV Input Voltage (V)	42.5
Max. Operating PV Input Current (A)	13+13
Max. Input Short Circuit Current (A)	19.5+19.5
AC Output Side
Rated AC Output Active Power (W)	600	800	1000
Max. AC Output Apparent Power (VA)	600	800	1000
Rated AC Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4
Max. AC Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4
Rated Output Voltage/Range (V)	220/230, 0.85Un-1.1Un
Grid Connection Form	LN/PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Max. Unit per Branch	8	6	5
Power Factor Adjustment Range	0.9 leading-0.9 lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%In
Efficiency
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
Anti-islanding Protection	Yes
Surge Protection Level	TYPE II(AC)
Interface
Communication Interface	Wi-Fi
General Data
Operating Temperature Range (℃)	-40℃~65℃
Permissible Ambient Humidity	0-100%
Permissible Altitude (m)	2000m
Noise (dB)	≤25
Ingress Protection(IP) Rating	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (W×H×D mm)	280.5×190×40(Excluding Connectors and Brackets)
Weight (kg)	3
Warranty	10 years
Type of Cooling	Natural Cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
