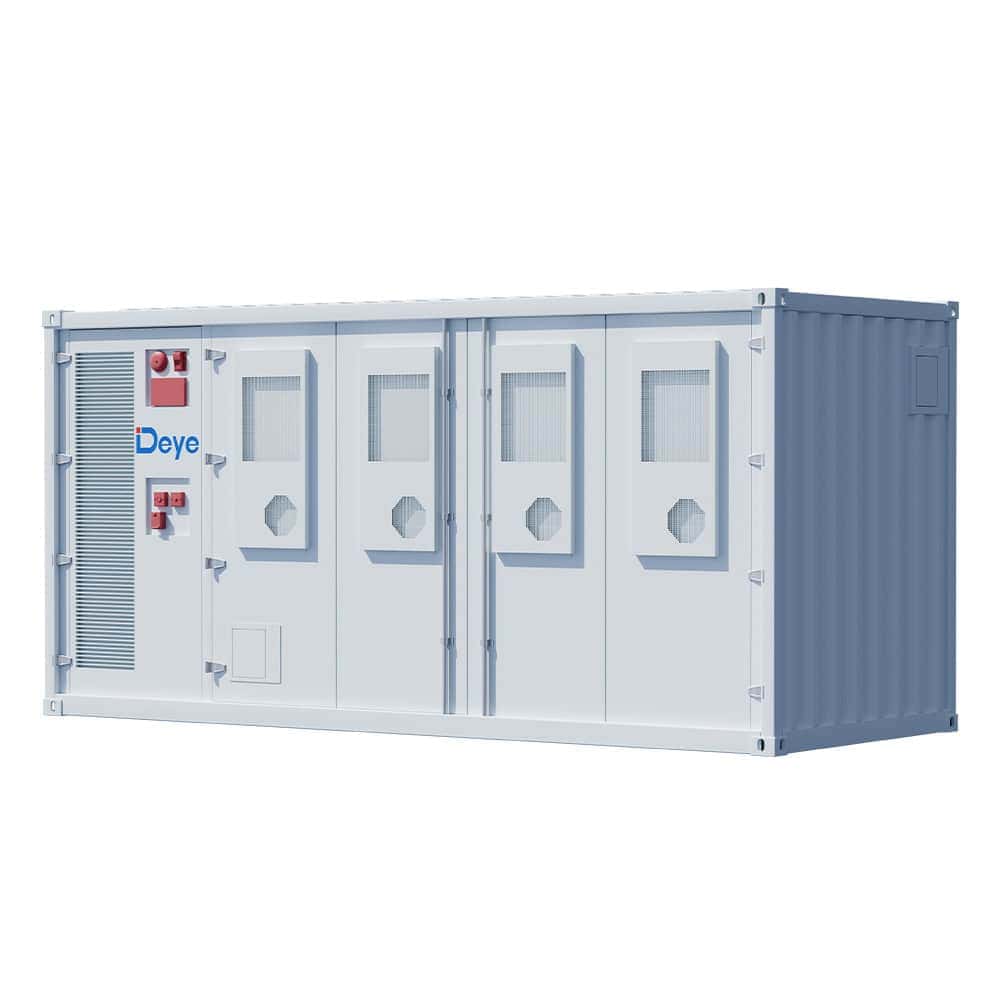

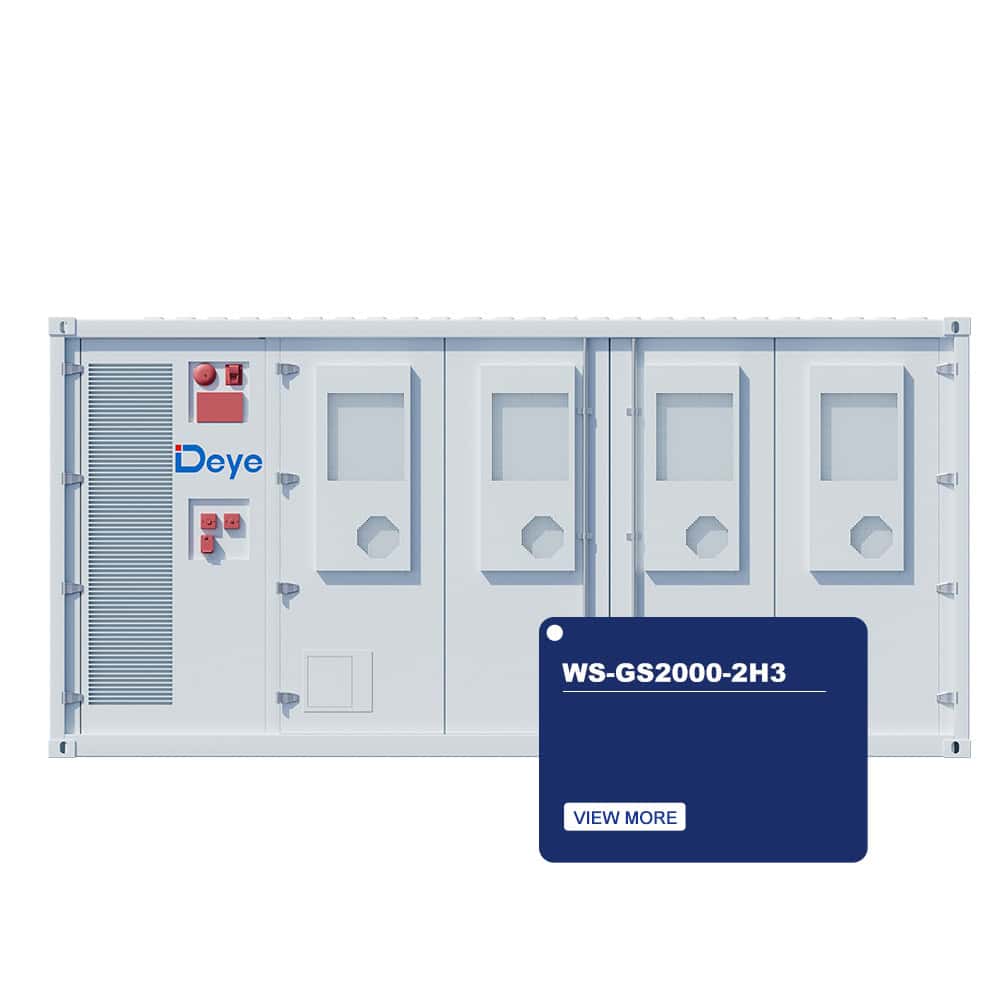

Deye Winter WS Series: WS-GS2000-2H3 Utility-Scale ESS Solution
Introducing the WS-GS2000-2H3, a cutting-edge energy storage system designed to meet
diverse power needs.
| Feature |
Specification |
| Rated power |
1000 kW (Max apparent power
1100 kVA) |
| System energy |
2057 kWh (battery
configuration: 256S1P × 8) |
| Overload capability |
Continuous 1.1×; Transient 1.5×
|
| Maximum round‑trip efficiency
|
88.5% |
| Ambient operating range |
−20°C to 50°C |
| Protection & durability
|
IP54 enclosure; C4‑M
anti‑corrosion rating |
| Seismic design |
Moderate performance (0.5 g)
|
| Physical |
20 ft HC container; ≈25,000 kg;
floor mount |
| Max. PV input power |
1600 kW (200 kW × 8 MPPTs) |
| Max. PV input voltage |
1000 Vdc |
| MPPT operating range |
180–850 Vdc (full load 450–850
Vdc) |
| MPPT configuration |
8 MPPTs (each 2×20 A or 3×13 A
per tracker) |
It features integrated technology, combining LC, PCS, MPPT, and battery. With an EMS for
system management and an ATS for on/off – grid switching, it boasts a 1 MW PCS output,
1.6 MWp solar input, and a substantial system energy capacity of 2057 kWh. Housed in a
standard 20ft High Cube container, it weighs around 25,000 kg for easy floor – mount
installation.
-
Safety is paramount, offering 2 – hour fire resistance, along with combustible gas
detection, smoke evacuation, aerosol extinguishers, and water sprinklers.
-
In terms of performance, it supports 1.1x and 1.5x overloads, achieves a max RTE of
88.5%, operates in temperatures from – 20 to 50 °C (IP54, C4 – M), and enables 2 PCS
& 2 MW off – grid operation.
-
It also comes with a 4 – level power redundancy design, 8000 cycles (EOL 70%), and a
10 – year warranty.
-
Applications include black start, off – grid operation & backup, peak shaving,
and transformer capacity control.
-
Rated power is 1000kW, max apparent power 1100kVA. Grid connection is 3L+N+PE,
50Hz/45Hz – 55Hz, with communication via RJ45 Port, Modbus TCP, IEC104, IEC61850
protocols, and moderate seismic performance (0.5g).
